Let's take a look at the features of this waterjet cutting machine.

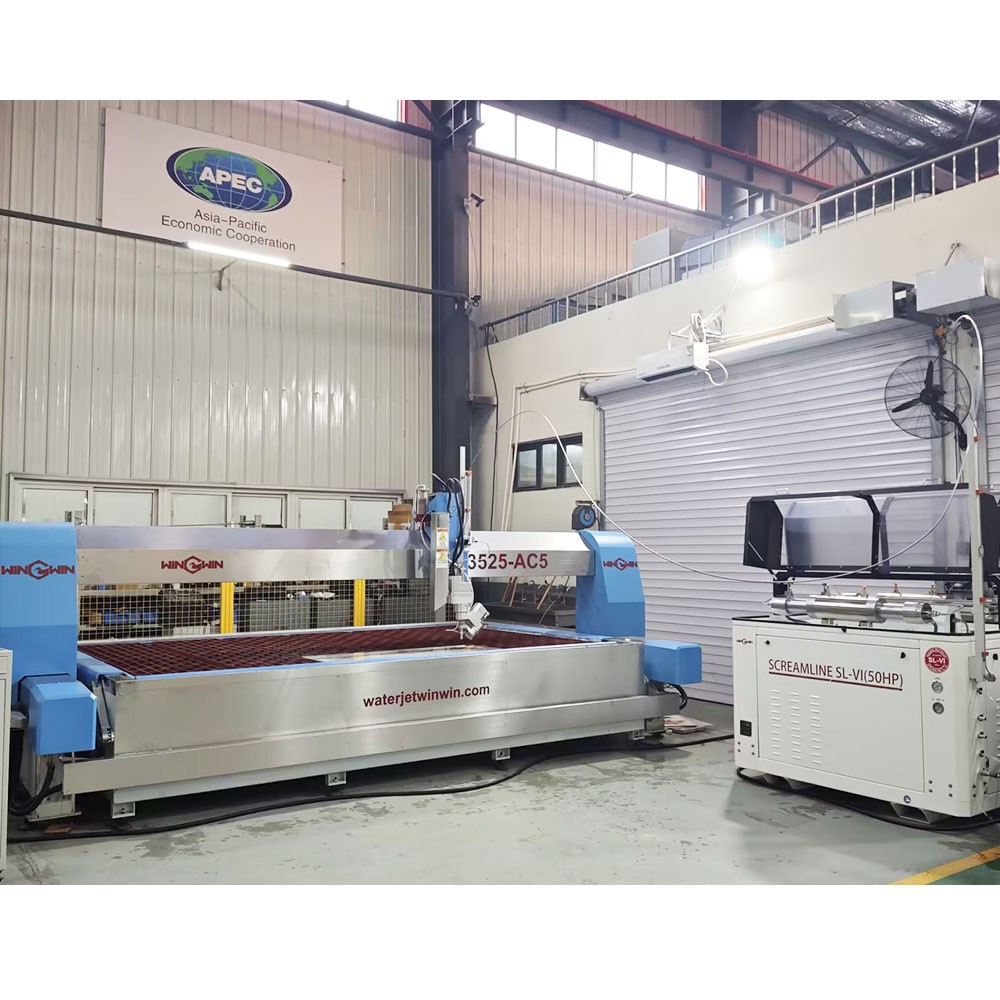

A: Cutting platform 3525 AC-5AXIS cutting platform parameters of Win-Win Waterjet Cutting Machine

A reasonable design is fundamental of Win-Win Waterjet Cutting Machine :

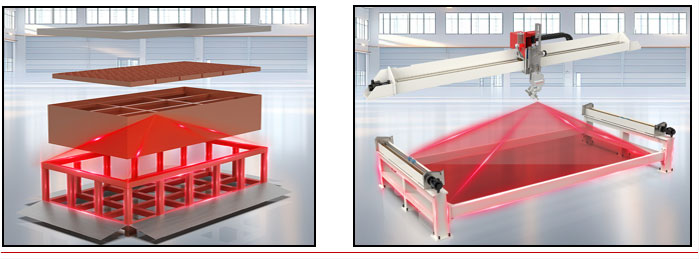

1. Integrated load-bearing water tank frame with an internal water tank, increasing weighing stability by 30%, far exceeding the stability of single-layer sheet metal structures.

2. Stainless steel protection is used for the water tank exterior and the platform's outer edge, protecting the loading and unloading equipment from wear and tear.

3. Non-load-bearing XYX frame with extremely high durability and stability. The double Y-beams are made of H-steel welded and annealed, while the X-axis beam is made of steel plate bent, welded, and annealed. The entire machine undergoes an aging treatment to eliminate internal stress, ensuring the machine's strength, preventing deformation, and guaranteeing permanent cutting accuracy.

4. All steel materials are sandblasted and then coated with two layers of anti-rust primer. The steel plates use custom paint colors. All dust covers are made of stainless steel, keeping the equipment looking new for ten years.

5. The (block-like) support structure provides more connection points, resulting in a more stable structure and a longer service life.

The secret to stable and long-lasting equipment of Win-Win Waterjet Cutting Machine :

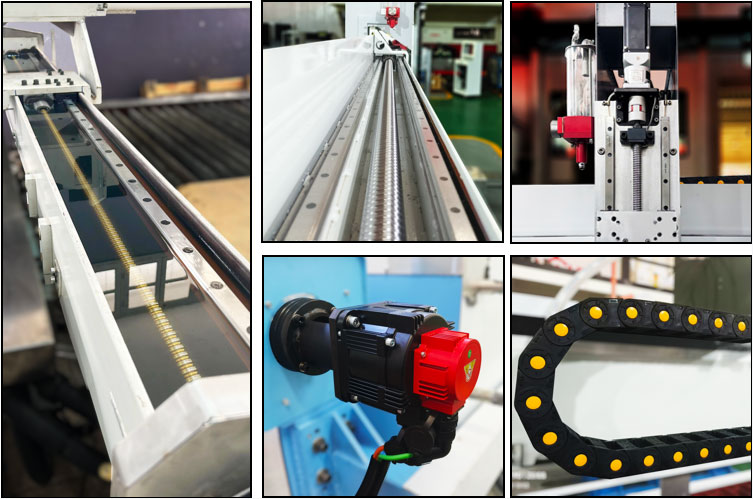

1. Utilizing an oil-immersion structure, the lead screw and slider are constantly submerged in lubricating oil, ensuring cleanliness and lubrication of the lead screw and slider at all times during machine operation, increasing their service life by 15 times.

2. Employing thickened ball screws and larger guide rails eliminates vibration during operation, ensuring accuracy and transmission stability even at high speeds.

3. Using Weihong motors and Weihong waterjet cutting systems offers better compatibility, and motor parameters can be set internally within the waterjet cutting system.

4. Employing a stainless steel protective cover prevents breakage and rust, effectively protecting the lifespan of the ball screw and guide rails.

5. The Z-axis also uses a double guide rail and ball screw structure, ensuring the stability of the cutting head operation and the durability of the equipment. The Z-axis is a servo motor with automatic height adjustment.

6. Utilizing a high-quality tow chain, it possesses high temperature resistance, cold resistance, wear resistance, and fire resistance.

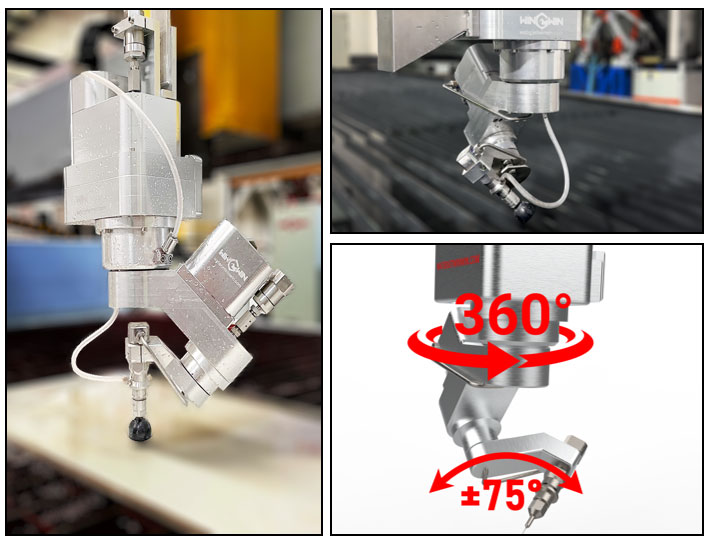

B:  AC 5AIXS Cutting Head of Win-Win Waterjet Cutting Machine

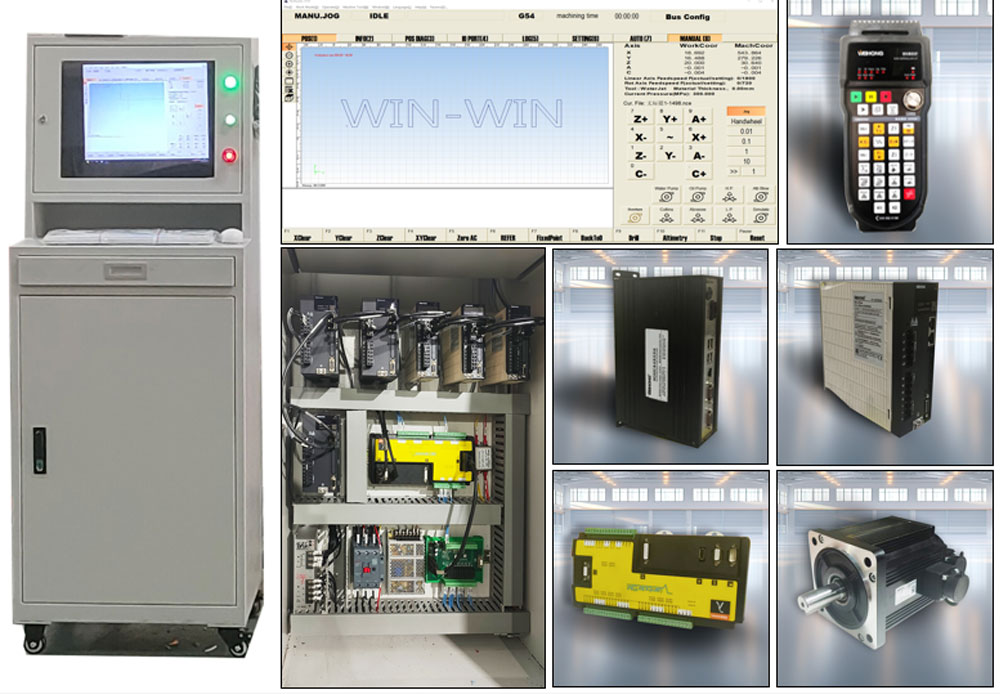

C: Weihong Waterjet Cutting System of Win-Win Waterjet Cutting Machine

1. The Weihong system can recognize the following file formats: GXF, G-code, ENG, and PLT.

2. The Weihong waterjet cutting system is highly operable and easy to operate; users can become proficient within a day.

3. It employs an absolute encoder system to ensure memory of previous data in case of operational errors or power outages. It allows for simulated operation, pausing and resuming at any time, and can resume cutting from any point based on the graphic.

4. It uses soft limit control, allowing users to set the machine tool travel range through the system, preventing collisions due to operational errors.

5. It features a dynamic graphic model and allows for real-time observation of tool movement, cutting position, and cutting changes.

6. It includes laser height measurement, AC 5-axis angle setting, and laser edge finding.

7. The designers thoughtfully included a sealed drawer for storing documents or personal belongings, protecting them in harsh environments.

D: SL-VI 50 PLUS HP Intensifier Pump of Win-Win Waterjet Cutting Machine

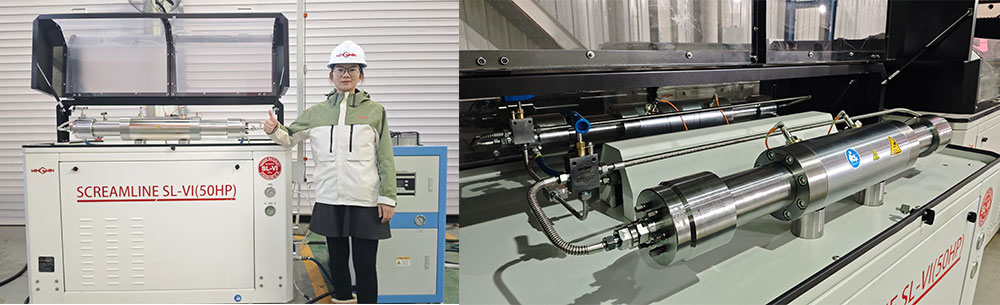

SL-VI 50 plus pump introduction of Win-Win Waterjet Cutting Machine :

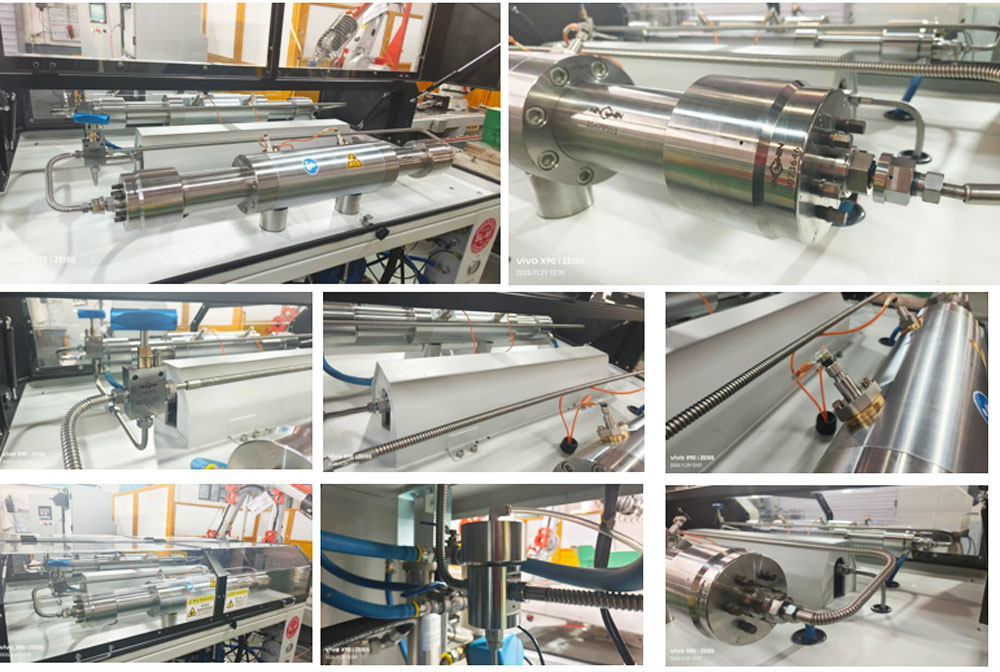

1. The SL-VI series intensifier pumps boast millions of hours of operational experience and have been optimized for superior performance.

2. The modular design allows for various matching options to suit the needs of manufacturers and customers.

3. The innovative hard-seal head replaces four sets of high-pressure sealing rings, completely eliminating the possibility of leakage.

3. The extended high-pressure plunger rod results in slower reversing frequency, less wear, lower noise, and more stable operation at the same flow rate.

4. The SL-VI intensifier pumps are easy to maintain and repair, fully meeting customer expectations for WINWIN Waterjet Systems. Internationally compatible pumps are readily available and delivered promptly, enabling continuous operation at 51,000 psi (3500 bar), providing faster cutting speeds and lower cost per inch.

33 core technologies of our SL-VI 50 plus waterjet pump of Win-Win Waterjet Cutting Machine :

1. Dual intensifier structure: one intensifier operates while the other is on standby, ensuring 24-hour continuous operation.

2. Dual intensifier structure: easy switching, completed in just 3 minutes, increasing production efficiency.

3. Internationally compatible intensifier: ample market supply, timely delivery, and every component is a standard model.

4. Equipped with two manual shut-off valves for quick and easy switching of the high-pressure generator.

5. Equipped with a 2L high-flow accumulator to eliminate water pressure fluctuations, maintaining maximum cutting pressure, increasing cutting speed, and saving costs.

6. High-performance electronic directional sensor: integrated structure, micro-distance sensing, ensuring safer and more reliable operation.

7. Transparent acrylic explosion-proof protective cover: allows for easy monitoring of intensifier operation and provides an aesthetically pleasing appearance.

8. Equipped with a standard unloading valve for automatic pressure relief controlled by the system.

9. All high-pressure pipes are equipped with stainless steel protective sleeves for enhanced safety.

10. 37KW/50HP high-efficiency motor, providing powerful performance up to 380Mpa.

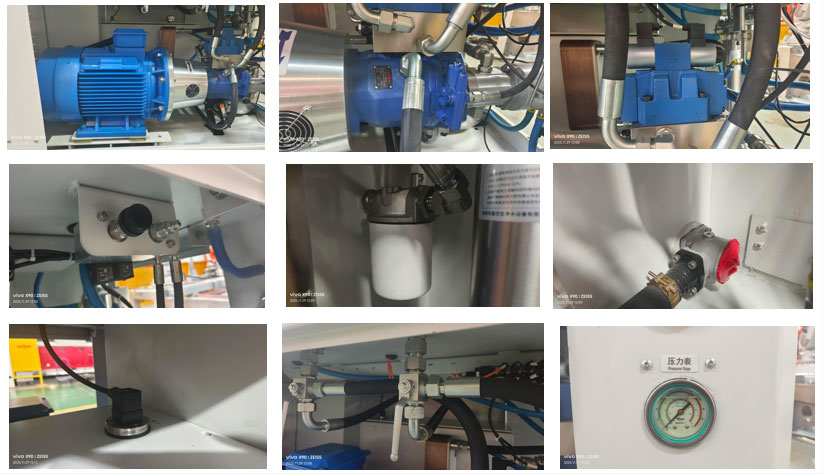

11. High-performance hydraulic directional valve, rapid response, low noise, and smoother equipment operation.

12. High and low pressure regulating valve mode, allowing pressure adjustment according to needs, enabling operation in either low or high pressure mode.

13. Equipped with a return oil filtration system; the oil filter will indicate blockage when the oil quality does not meet standards.

14. Equipped with an inlet oil filtration system, ensuring that the hydraulic oil entering the variable pump meets standards.

15. Hydraulic oil gauge displays oil pressure in real time, providing timely and accurate feedback.

16. Oil temperature and level monitoring system; the equipment will automatically shut down and display corresponding fault information when the oil temperature is too high or the hydraulic oil level is low.

17. All stainless steel high-pressure oil pipeline valves for easy switching of oil circuits.

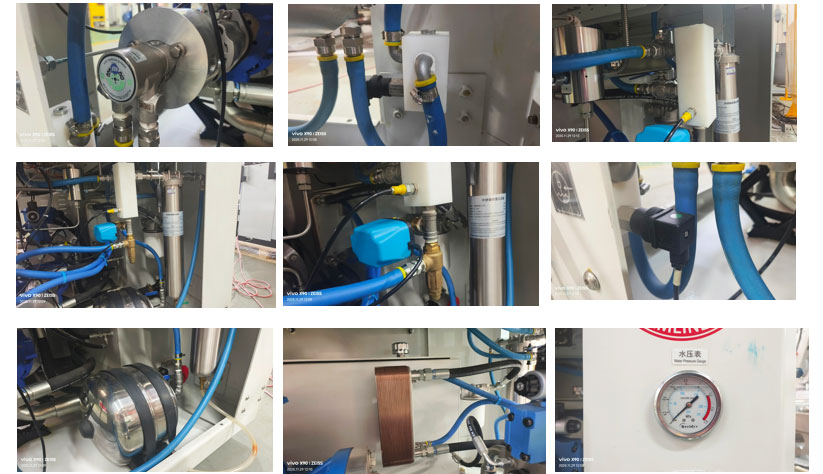

18. The secondary booster pump features a direct-drive motor structure, ensuring a stable inlet water pressure of 0.8 MPa.

19. The polyurethane-material water distribution valve block offers excellent sealing, is lightweight, and rust-free.

20. An extended stainless steel water filter effectively controls the water quality entering the booster, ensuring perfect operation.

21. A low-pressure inlet controller provides sufficient water pressure the moment the intensifier pump starts, effectively protecting its operation.

22. A low-pressure water sensor system automatically shuts down the intensifier pump and displays fault information when the external inlet water pressure is insufficient.

23. Equipped with a stainless steel low-pressure water storage tank, it provides sufficient water pressure to the booster at all times, preventing water shortages during operation.

24. A high-efficiency copper plate cooler offers high heat exchange efficiency, effectively reducing oil and high-pressure water circuit temperatures—a unique technology.

25. An intuitive and accurate low-pressure water meter allows for monitoring of the current low-pressure water level.

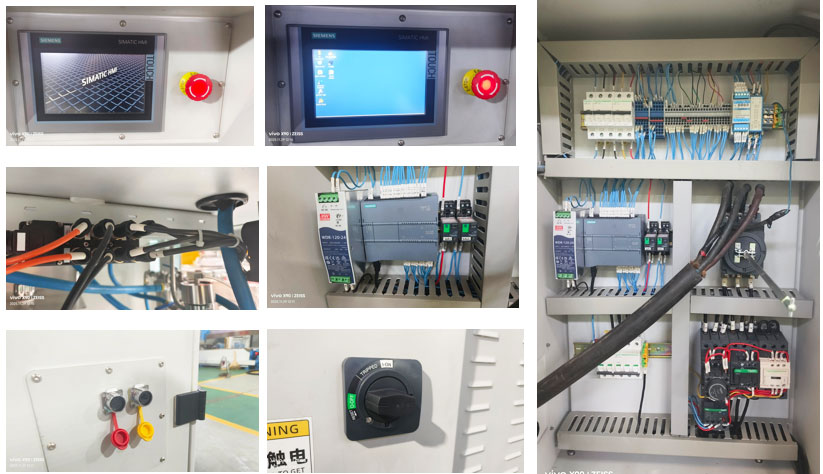

26. Siemens touchscreen display for smarter equipment status monitoring.

27. Microcomputer operating system: When a malfunction occurs, the display shows the fault location, allowing for quick and easy troubleshooting.

28. Integrated waterproof quick-connect circuit board: convenient, fast, and safer.

29. Uses Siemens PLC: stable performance and reliable signal transmission.

30. Uses aviation quick-connect connectors, compatible with any brand of unit, facilitating remote connection; modular design makes equipment installation easier.

31. Safe external switch design: safer and more convenient power on/off.

32. Integrated circuit design: reduces the need for additional circuit control, resulting in better stability.

33. Optional servo motor system: saves 35% on electricity costs, provides more precise pressure control, and reduces noise.

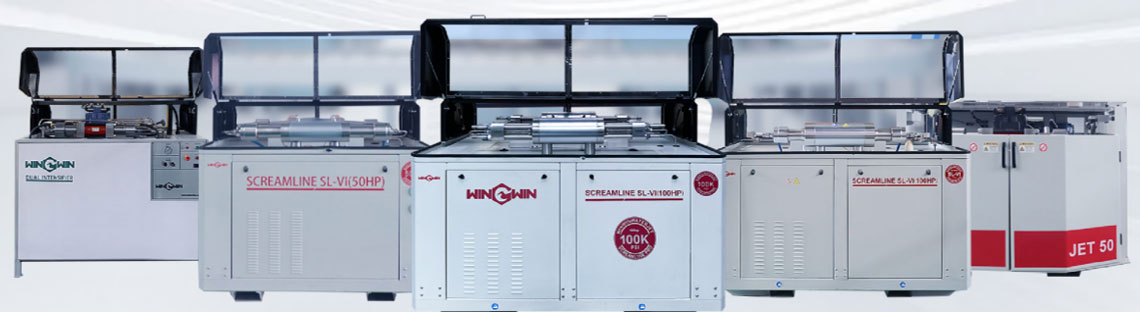

We have various waterjet high-pressure pumps for you to choose from:

Remark: Of course, we also offer the SAWJET CNC MACHINE, an advanced multi-functional machine that combines saw blade and waterjet cutting.

CNC Bridge Saw + Waterjet Cutting Machine for Stone, Marble & Granite
