Win-Win Waterjet & Weihong: Precision Cutting, Smart Manufacturing

Win-Win Waterjet is proud to partner with Weihong, integrating the NcStudio Waterjet Cutting Control System into our solutions. This complete hardware-software ecosystem eliminates compatibility issues and delivers high-precision, intelligent manufacturing—from standard cutting to complex 5-axis machining and also 3-axis too.

A Complete, Compatible, and Flexible Hardware-Software Ecosystem

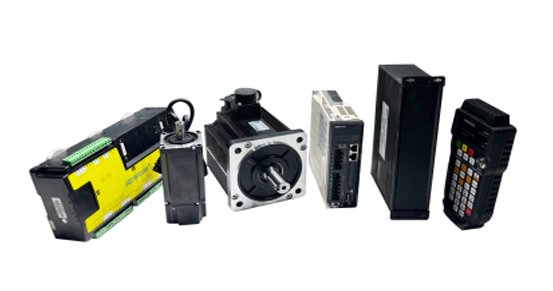

One of the greatest challenges in waterjet automation is component incompatibility. The NcStudio system eliminates this with a fully integrated solution covering everything from the industrial computer to servo drives and software.

This complete chain ensures zero compatibility headaches and supports both bus and non-bus configurations, third-party software, and complex 5-axis machining.

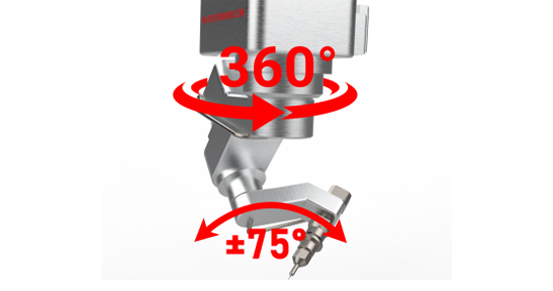

1. Precise 5-Axis Linkage for Complex Curved Surfaces

The built-in RTCP (Rotational Tool Center Point) algorithm automatically corrects the tool’s control point, keeping the nozzle tip exactly on the programmed trajectory regardless of head orientation.

• Supports 90° AB, 45° AB, V-type AB, and AC 5-axis head structures

• Ideal for bevels, inlays (mosaic), and 3D workpiece cutting

• Achieves “cut where you point” accuracy — even on complex curved surfaces

This capability is a game-changer for aerospace, automotive, stone, and decorative metal industries.

2. Laser Height Sensing for Non-Contact Surface Following

Traditional contact-based cylinder height sensing risks damaging workpieces and offers limited accuracy. The laser height sensor in the NcStudio system provides:

• Non-contact, pre-cutting height measurement

• Significantly higher accuracy than pneumatic methods

• No surface damage — ideal for marble, composite, or curved panels

• Constant nozzle-to-surface distance, even on 3D or irregular surfaces

The result: higher yield, lower scrap rates, and consistent cut quality on every piece.

3. Comprehensive Process Optimization for Speed & Quality

Win-Win Waterjet’s integrated Weihong system is not just a controller — it’s a cutting process optimizer. Key features include:

• Dynamic speed control

• Automatic dual-pressure reversing

• Waterjet piercing for faster thick-plate penetration

• Bridging (reduces lift-offs)

• Micro-joint (prevents part drop-off)

• Vertical tool entry

• Speed model calculator for corner and arc speed reference

• Corner control & punch optimization

• Process parameter group management

• Bevel and angle editing

• Tool compensation & reverse functions

Together, these functions form a complete optimization framework that lowers operational costs, reduces cycle times, and ensures superior edge quality — even on intricate contours or exotic materials.

4. Interruption Recovery & Compensation – Zero Waste Tolerance

Production interruptions don’t have to mean scrapped parts. The NcStudio system includes robust breakpoint resumption and compensation tools:

• Breakpoint continuation – resume cutting exactly where it stopped

• Tool compensation – maintains accuracy over long runs or tool wear

• Reverse function – adds flexibility for custom edge cases

These three functions work together to ensure process continuity, dimensional consistency, and minimal material waste — even when unexpected events occur.

Why Win-Win Waterjet + Weihong?

This partnership delivers what most waterjet users struggle to find: a fully integrated, future-proof control solution that reduces troubleshooting time, increases throughput, and handles everything from 2D cutting to 5-axis contouring.

Whether you are cutting stone, metal, glass, or composites — and whether your surfaces are flat or curved — Win-Win Waterjet powered by Weihong NcStudio gives you the tools to cut smarter, not harder.

Ready to Upgrade Your Waterjet Precision?

Contact Win-Win Waterjet today to learn how our Weihong-integrated systems can transform your cutting operations.
