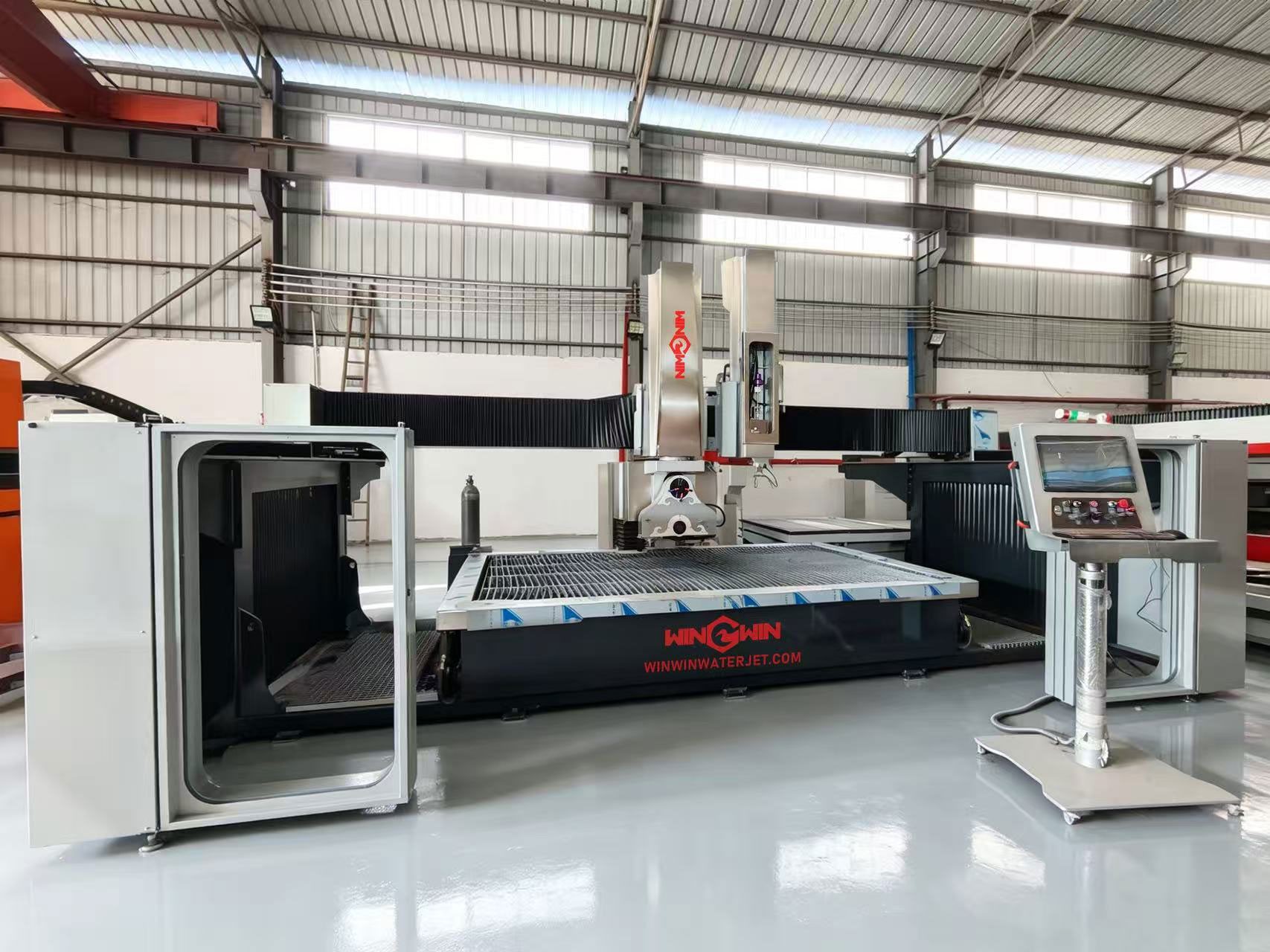

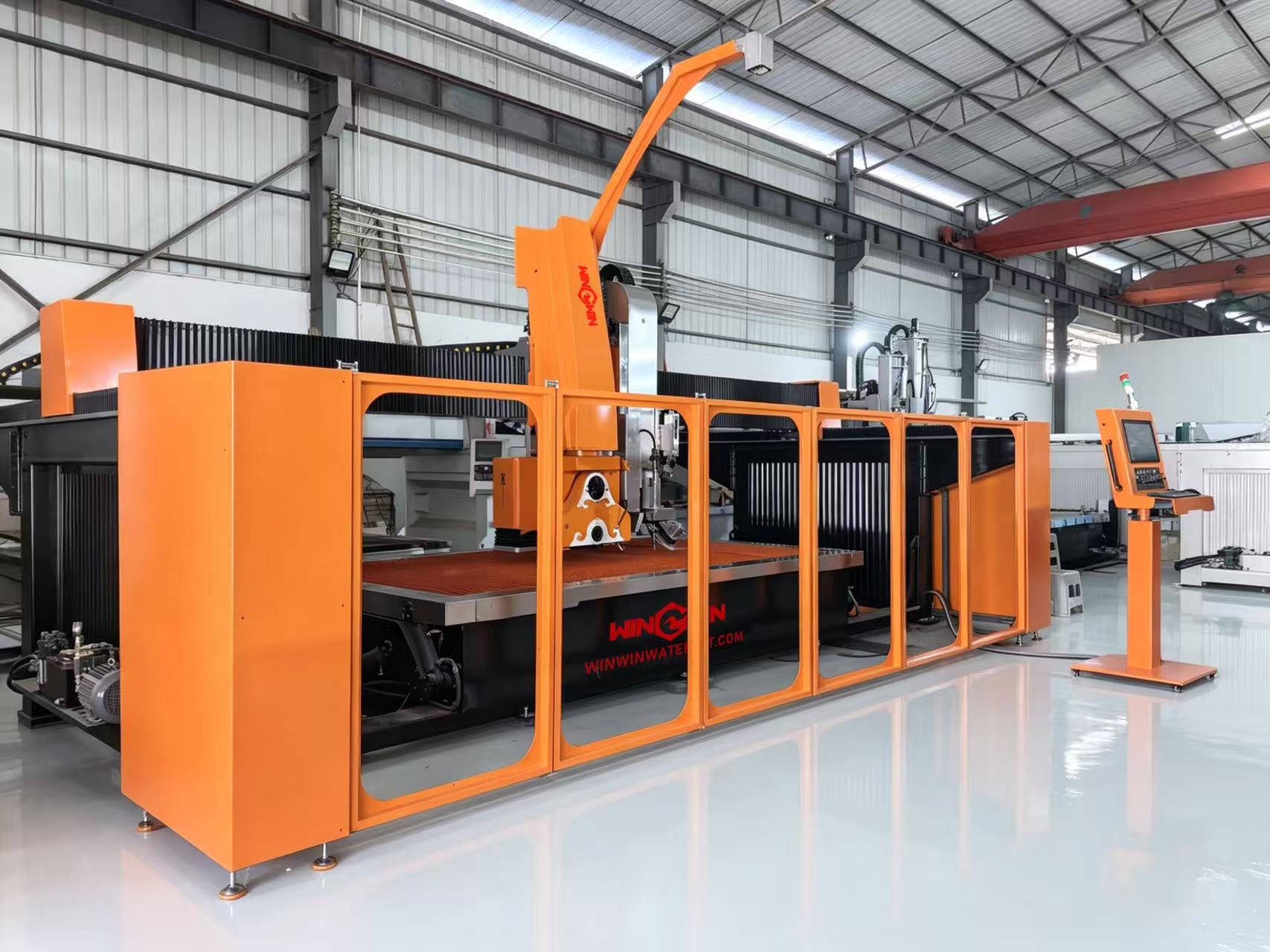

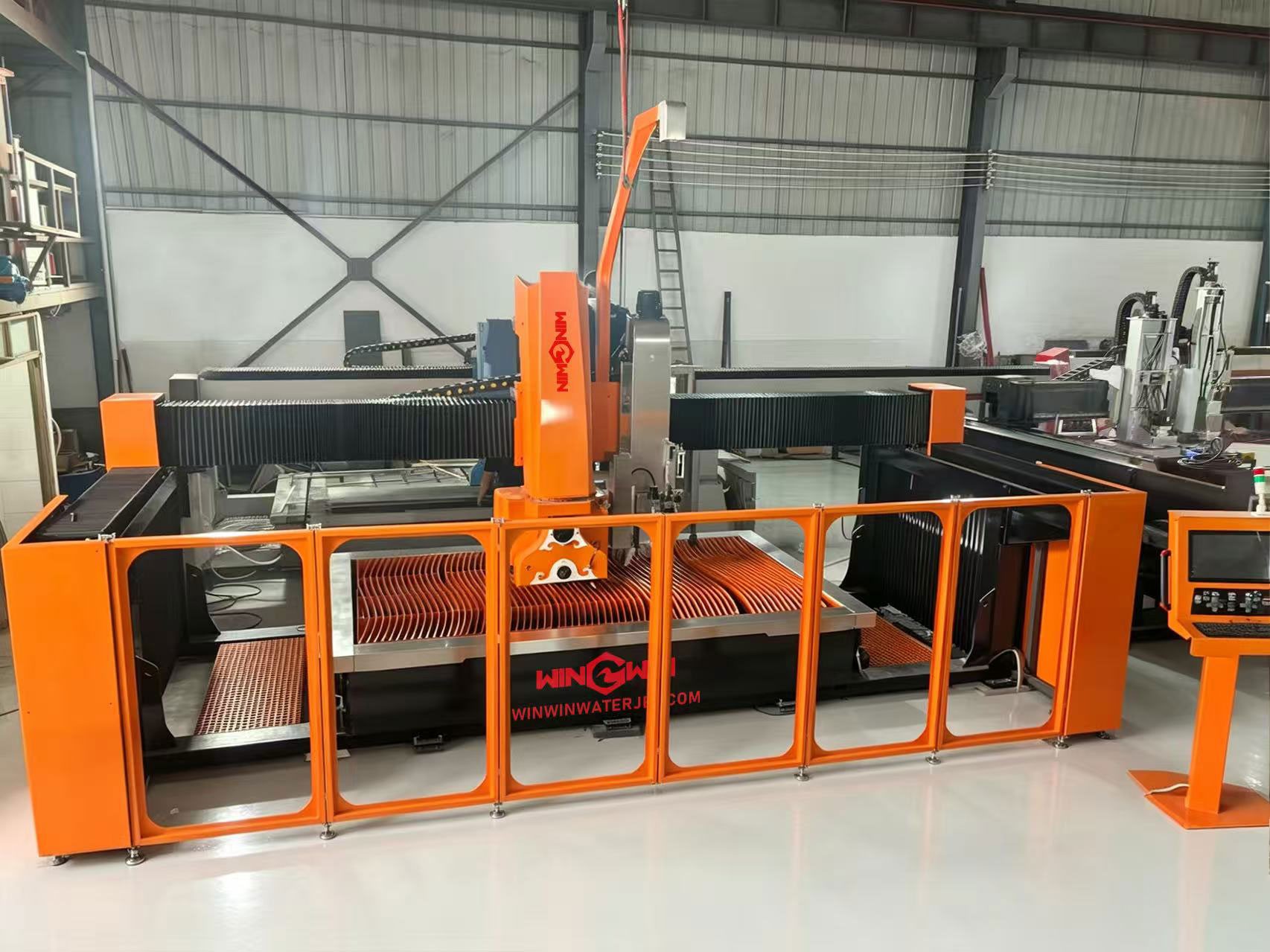

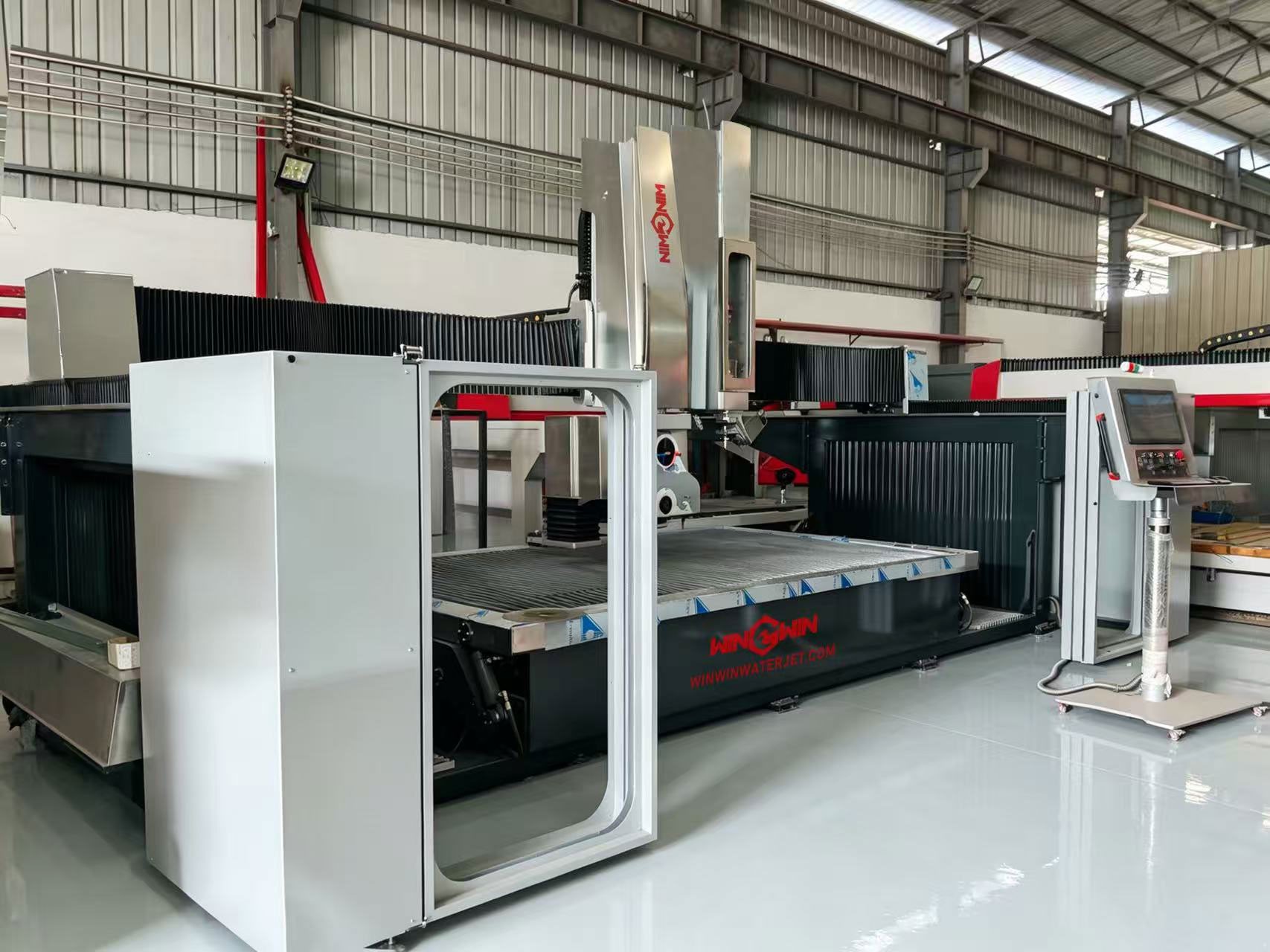

1. WHAT IS THE SAWJET CNC MACHINE?

It is a combined five-axis SawJet table. This integrated system utilizes both waterjet and saw blades for cutting long stone slabs and intricate mosaic medallions.

FIVE AXIS CNC BRIDGE SAWS, Cut intricate radius work and complex shapes faster while maintaining full blade capability for primary cuts and milling. The 25HP motor handles rapid slab cutting and precision milling, while the waterjet dramatically speeds up sink cutting and detail work.

2. What features does this WIN-WIN Sawjet cnc machine have?

AC-5axis waterjet cutting with laser height measurement + saw blade cutting + drilling + edge milling with a milling cutter.

Remark: the machine can with various high-pressure pump from our company.

3. What are the advantages of Sawjet cnc machine compared to standalone waterjet cutters and standalone sawing machines?

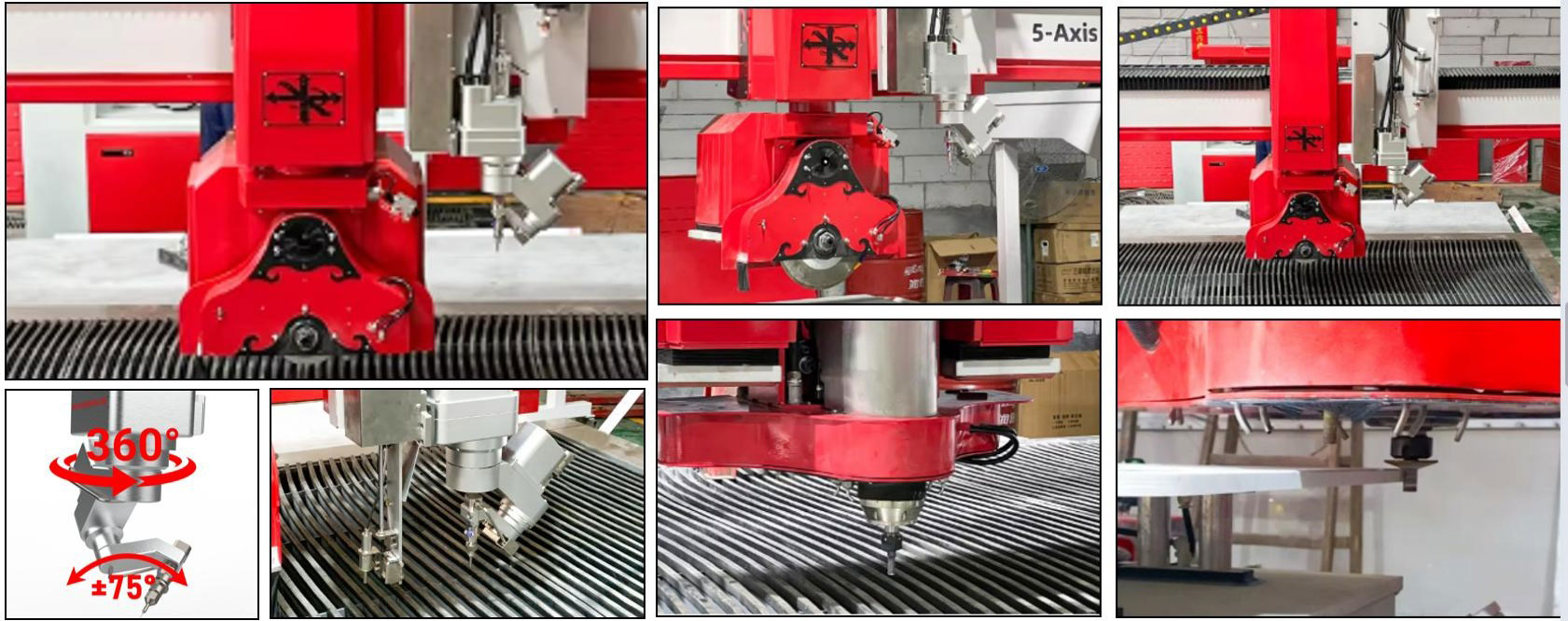

(1) Waterjet Cutting Unit (with Laser Height Measurement and 5-Axis Waterjet)

Custom-shaped and arbitrary curve cutting: Marble, granite, quartz, stone slabs, and engineered stone—any arcs, cutouts, patterns, inlays, custom chamfers, inner/outer arcs, and bevel cuts (bevels at any angle from 0° to 90°, with 5-axis multi-angle swivel head);

Laser-Guided Automatic Height-Tracking Cutting: Automatic height compensation for variations in slab thickness and warped slabs, preventing cutting through the backing plate, incomplete cuts, and inconsistent bevel sizes; precise cutting of thin slabs, large slabs, and uneven raw materials;

Deep Processing of Thin/Ultra-Thin Slabs: Cold cutting of 3–12 mm slabs without chipping, high-temperature scorching, or black edges;

Stone Mosaic and Full-Slab Cutting: Kitchen and bathroom countertop mosaics, artistic floor panel layouts, and relief/openwork cutting.

(II) Saw Blade Cutting Unit of Sawjet CNC Machine

Large Slab Straight-Edge Cutting and Rectangular Blank Cutting: Blocking of raw slabs, sizing of standard panels, and batch cutting of long straight strips; sawing efficiency far exceeds that of waterjets, suitable for rough cutting of large, regular-shaped materials;

Thick Stone Cutting: Rapid segmentation of 50–200 mm thick granite and sandstone. Since waterjet cutting is inefficient for thick materials, saw blades handle the rough cutting of blocks.

(III) Drilling Unit of Sawjet CNC Machine

Countertop Pre-drilled Holes: Sink holes, gas stove cutouts, undermount sink installation holes, and pre-drilled through holes/countersunk blind holes for screws;

Installation holes for railings, stone hardware, and dry-hanging bolts; custom angled holes (5-axis simultaneous angled drilling); one-stop production of straight holes, countersunk holes, and stepped holes.

(4) Milling Unit of Sawjet CNC Machine

Standard edge profiling: straight edges, rounded edges, duckbill edges, Roman edges, beveled edges, chamfers, and front splash guards (drainage channels);

Custom-shaped milling: Countertop water-blocking arcs, grooves, notches, decorative edging, dry-hanging slots, and back panel mounting slots;

Hole edge finishing: Sink holes, stove holes—precision milling to remove burrs and standardize inner hole dimensions.

(5) Integrated Multi-Functional Capabilities of Sawjet CNC Machine

A single workpiece is clamped once to complete the entire process: large slab cutting → custom waterjet cutting → drilling → edge profiling, eliminating the need for frequent equipment changes and repeated loading/unloading.

II. Core Advantages / Benefits for Stone Processing Plants

1. Significantly improved production efficiency, saving labor and reducing material handling

Traditional: Cutting on a sawing machine → Transporting to a drilling machine for hole drilling → Transporting to an edge-milling machine for edge milling → Waterjet finishing. This involves multiple machines, multiple workstations, frequent handling, and waiting for turnaround;

Integrated Machine: A single machine handles the entire process. One operator can replace the labor required for 3–5 standalone machines, reducing damage from repeated handling of slabs and minimizing transport time, thereby accelerating order delivery.

2. Improve finished product yield and reduce stone waste

Laser height measurement + 5-axis interpolation: Automatically levels and cuts warped or unevenly thick stone, eliminating chipped edges, missing corners, and scrap;

Single clamping and positioning: Reduces positioning errors caused by multiple clampings, ensuring consistent sink hole, outline, and edge dimensions, thereby lowering scrap rates (particularly noticeable for slab stone and high-end marble);

Combination of rough sawing and waterjet precision cutting: Saves waterjet consumables (abrasives, high-pressure components) for large-format cutting; leverages the waterjet’s strengths for complex shapes, optimizing consumable costs.

3. Comprehensive product coverage, enhanced order fulfillment capabilities

Capable of producing both standard, mass-produced kitchen and bathroom quartz countertops and window sills (mass production via sawing, drilling, and milling), as well as high-end custom stone pieces for luxury villas, artistic mosaics, curved designs, and irregularly shaped stone (5-axis waterjet);

While ordinary single-machine factories can only produce standard slabs, this equipment can handle high-value-added custom orders, commanding higher premiums.

4. Compatible with all raw material types: stone slabs, marble, granite, and engineered stone

Waterjet cold processing does not damage the glazed surface of stone slabs or the polished surface of marble; saw blades handle thick, hard granite; milling cutters shape countertops—it handles all material types, eliminating the need to purchase separate equipment for stone slabs.

5. Reduced factory floor space

What previously required four separate machines—a saw, waterjet, drilling machine, and edge-polishing machine—is now consolidated into a single multi-functional machine, saving workshop space and making it ideal for upgrades and renovations at small and medium-sized stone factories.

6. Consistent Processing Precision and Standardization for Mass Production

Equipped with AC 5-axis CNC and laser height measurement with closed-loop control, this machine ensures stable tolerances for hole diameters, chamfers, and overall dimensions across the same batch of countertops. This facilitates large-scale production of whole-house stone projects and bulk engineering orders (such as high-end residential developments and commercial hotel stone installations).

III. Applicable Mainstream Products

Kitchen countertops, bathroom vanities, window sills, threshold stones, custom-shaped accent wall stones for villas, artistic floor mosaics, small stone balusters, and slab cabinet doors.

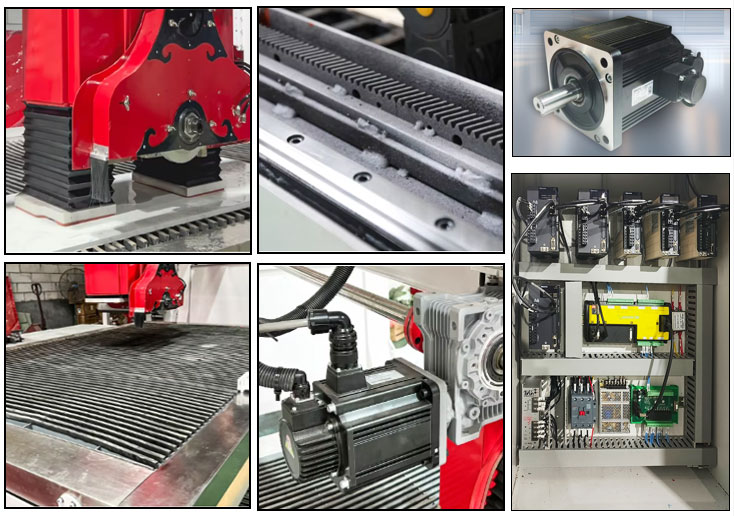

4. The Advantages of Our Sawjet cnc machine Cutting table

High-capacity suction cup

It has a maximum load capacity of 200 kg and can automatically move excess material during processing to prevent over-cutting.

Oil-immersed guide rails

They ensure precise, stable cutting while extending the durability and service life of linear guide rails.

Rubber strip worktable

Reduces saw blade wear and provides shock absorption, preventing edge collapse and corner chipping when cutting sintered stone.

Absolute servo motor with memory function

Equipped with power-off memory function, the absolute encoder servo motor eliminates the need for re-calibration or homing after restart. Processing resumes from the exact position where it stopped.

If you are interested in our Sawjet cnc machine, contact us please.
