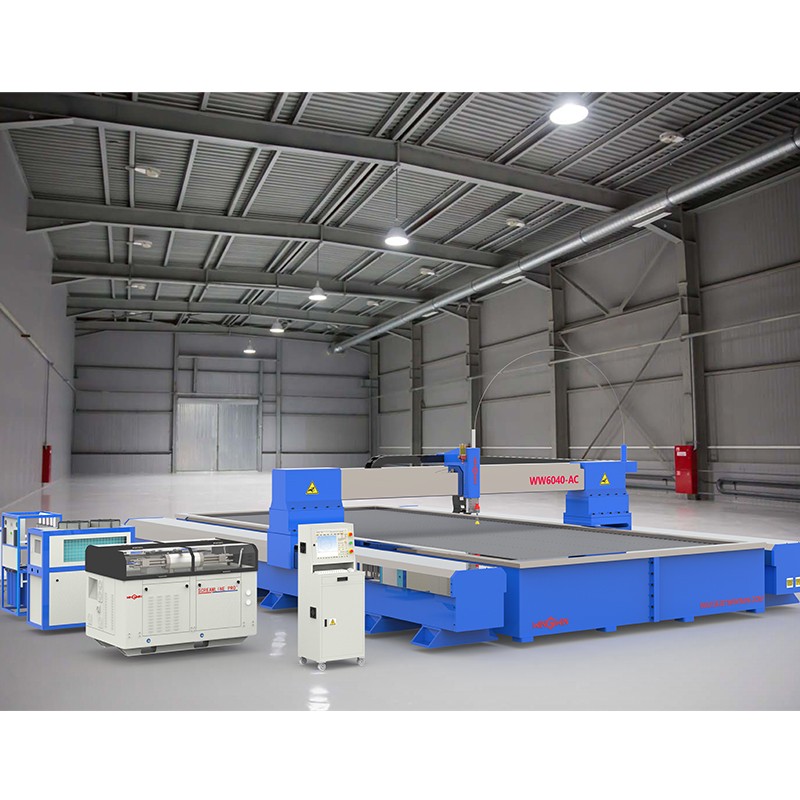

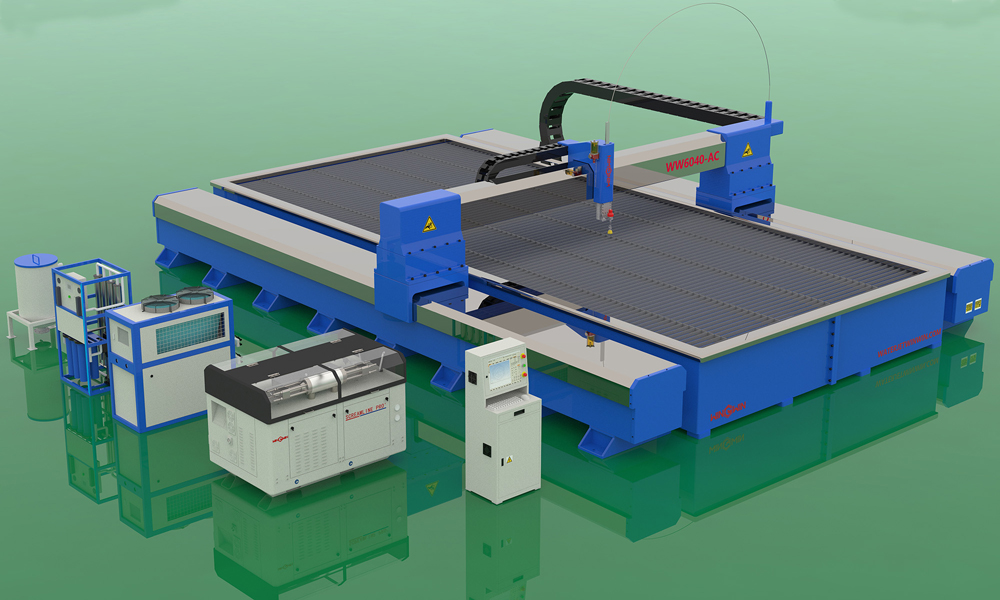

Modular gantry waterjet cutting machine

Specification:

1. A sizable modular design that facilitates easy transportation and installation; features a high-precision ball screw and guide rail for accurate movement; incorporates a protective system for the fast-running ball screw bracket; equipped with an ESA PC, a 19-inch true color touchscreen control system, and an AC servo motor; includes an automatic centralized lubrication system; and the machine dimensions can be tailored to meet customer specifications.

2.

Robust and Dependable Bed Design

• Cantilever balance design with a compact footprint, user-friendly operation.

• Thoughtfully engineered full casting structure that is solid and stable, providing enhanced strength.

• Major components sourced from reputable domestic brands, ensuring reliable performance.

Setting New Standards in Local Industry Details

• Centralized automatic lubrication system designed for user convenience and automated equipment maintenance.

• Heavy-duty drag chain from a trusted brand, offering flexible movement and integrated high-quality sensors.

• Reliable soft limit features for machine tools, ensuring safety and security.

Expertly Designed New Solution

• Machine tool guide rails feature a labyrinth system for waterproofing and sand-proofing, complemented by soft curtains for dual-level protection.

• For machine tools with over 3m stroke length, a rotating nut structure is utilized for dependable long-distance transmission.

• Implementation of high-quality international brand ball screws and guide rails to guarantee precision in parts processing, balanced transmission, and long-lasting durability.

If you are interested in any waterjet products, contact me please.
