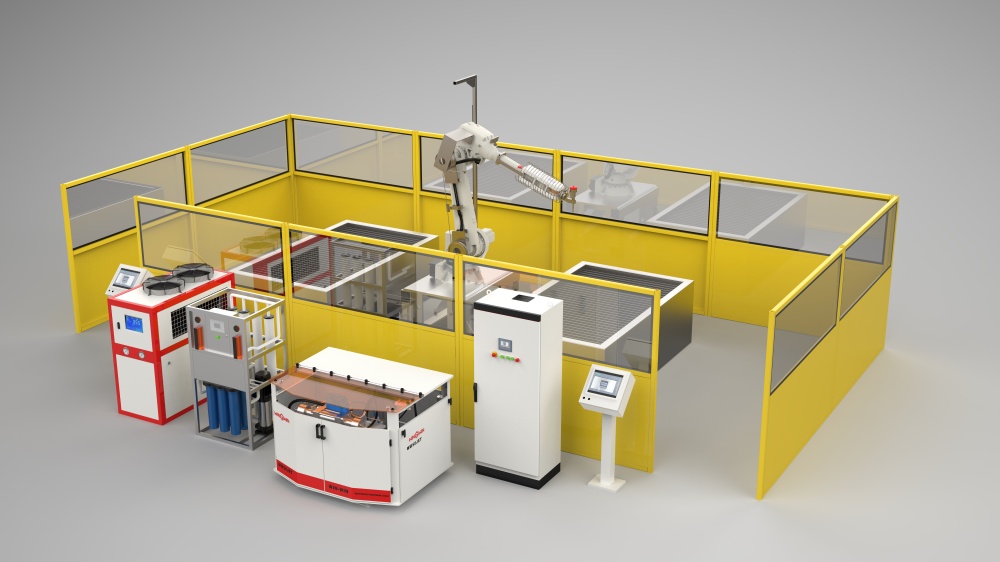

Robot Waterjet for Drone Manufacturing

Item

Question

Answer

1

Capabilities:

What is the cutting precision (tolerance) of the robotic waterjet?

±0.1mm

How many axes or degrees of freedom does the robotic arm have?

6axis

2

Materials:

Can the system cut the following materials: carbon fiber, foam, fiberglass, wood, aluminum, steel, and titanium?

All can be cut

What is the maximum thickness it can cut for each material?

0-250mm （60kpsi cutting metals 0-100mm）

3

Software:

What software is used to program the robotic arm?

ABB's own standard software programming

Does the system support CAD files for cutting paths? If yes, which file formats (e.g., DXF, STEP)?

No CAD support

Is simulation or offline programming available?

Simulation or offline programming needs to be purchased, which ABB officially has.
After the equipment is ordered, we will go to the site to install the equipment for you and provide programming teaching.

4

Operating Costs:

What is the average water consumption per hour?

2.5-3L/min

How much abrasive garnet does it use per hour?

15-20kg/hour

What are the main maintenance costs (e.g., parts that wear out quickly)?

About usd$2/hour

5

Maintenance
and Support:

How often does the system require maintenance?

Under normal use.
The robot needs maintenance once a year, usually lubricant change.
Waterjet parts: The cutting head and the HP pump have some wearing parts that have corresponding replacement frequency. 3 months, 6 months, 1 year or longer, we will provide training and corresponding literature.

Do you provide training for operation and maintenance?

Yes, of course, we must ensure you learn to use our equipment

Is remote technical support available?

Yes

6

Flexibility:

Can the robotic arm cut curved surfaces, like an aircraft fuselage or wing?

Sure, this is the advantage of robotic waterjet cutting

What is the maximum size of parts it can handle?

Any size is possible and can be customized according to customer needs. Currently, the longest material we have cut is 12 meters (bus luggage rack cutting).

7

Other:

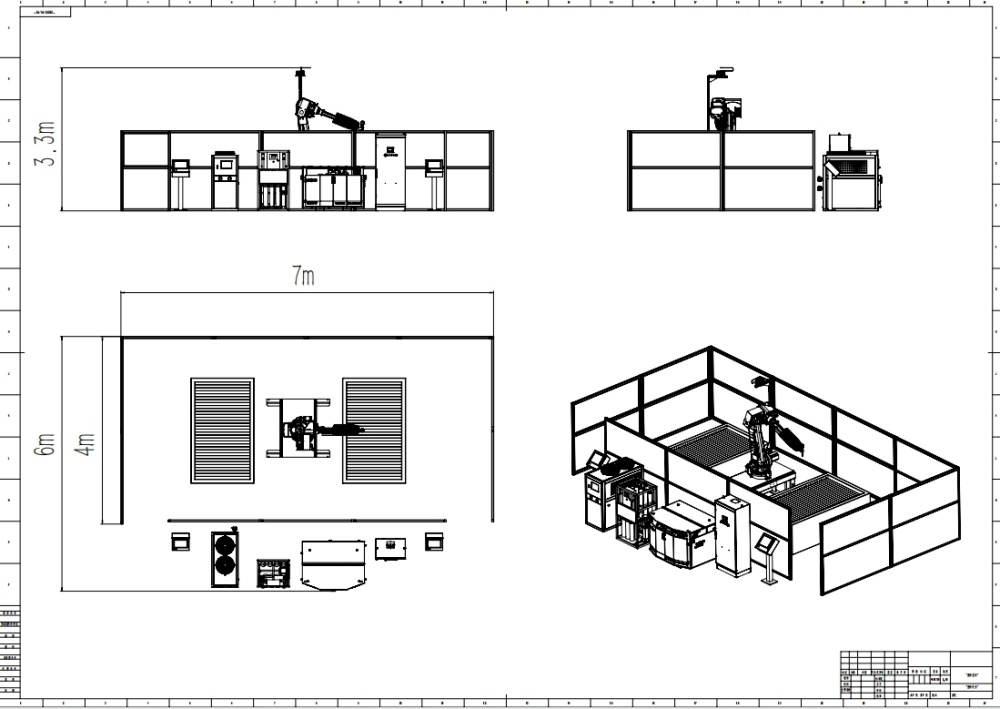

What is the system’s weight and size (dimensions)?

Weight: about 5.5tons,
dimensions: 6m*7m*3.3m (Length, width, height)

Is installation included in the price? If not, how much does it cost?

Usually installation fee is additional (negotiable)

How long is the warranty, and what does it cover?

The robot is under ABB official warranty, and the water jet part is under warranty for one year (main components)
