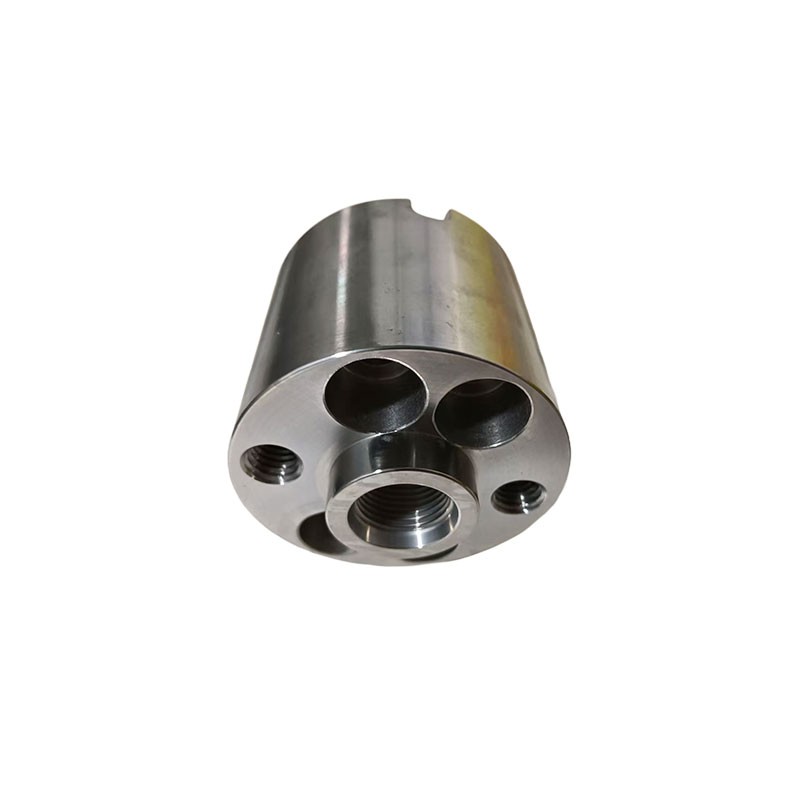

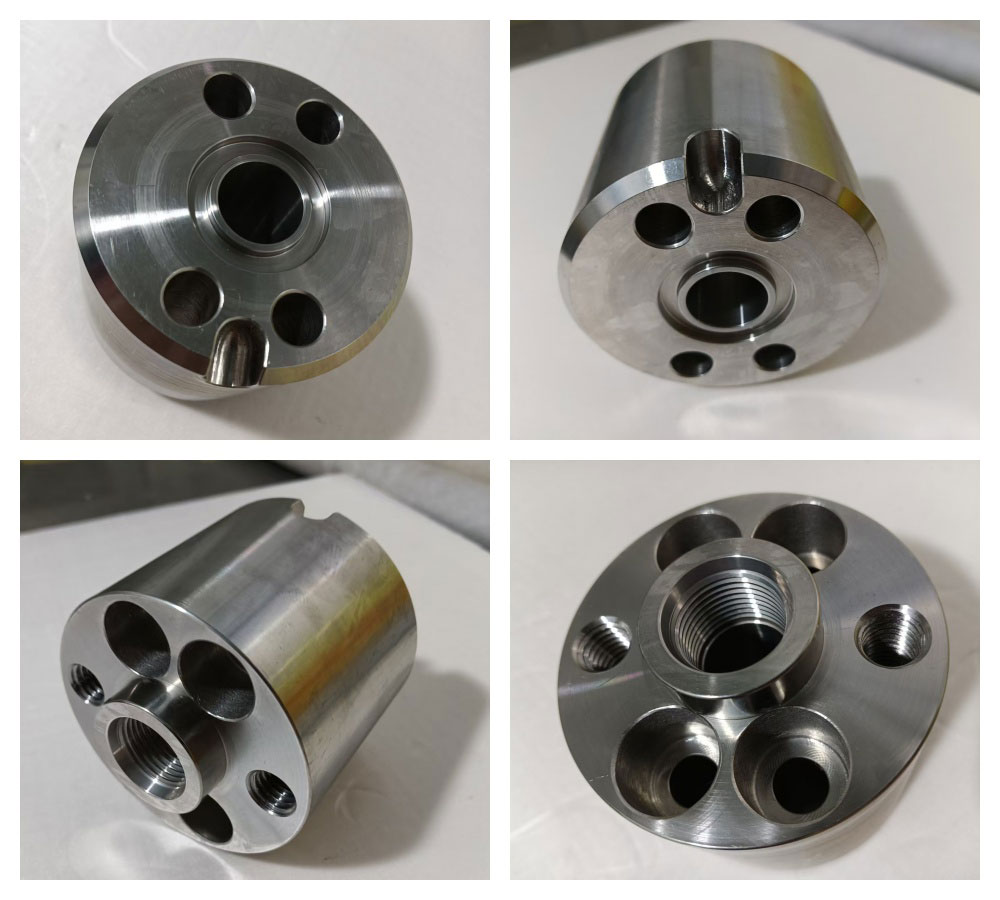

Product number: 20478698 05049812 Product name: Mounting Support or Support, Intenisifier
Looking for reliable waterjet parts for kmt?
Win-Win Waterjet supplies high-quality compatible spare parts engineered for precision cutting performance and long service life. From cutting heads, orifices, and seals and intensifier components, every part is quality-tested to ensure exact fit and consistent operation. Fast worldwide shipping, competitive wholesale pricing, and responsive support for OEM and aftermarket needs. Keep your waterjet system running at peak efficiency — order parts for kmt from Win-Win Waterjet today.
THIS COMPONENT CAN ALSO BE FOUND HERE:
Hydraulic Drive Assembly, SLIV
Hydraulic Drive Assembly, SLV
Hydraulic Drive Assembly, SLIV+
Hydraulic Drive Assembly, SLV Classic
Hydraulic Drive Assembly, Jetline

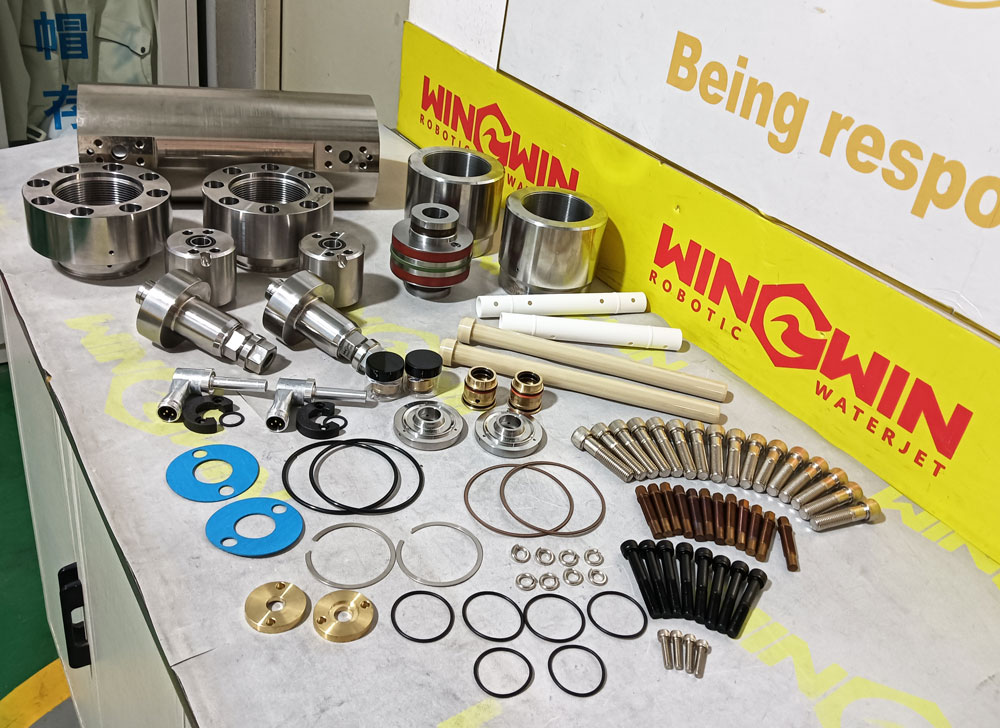

The above photo includes the following parts for kmt waterjet:
| No. | Parts No. | Description | QTY |
| 1 | 20479503 | HP Cylinder | 2 |
| 2 | 05119151 | Plunger | 2 |
| 3 | 20481005 | Sealing Head Assembly | 2 |
| 4 | 05034772 | Hydraulic Cylinder Head | 2 |
| 5 | 20422243 | HP Seal Assembly | 2 |
| 7 | 80073646 | HP Cylinder Nut | 2 |
| 8 | 05130091 | Hydraulic Cartridge Seal Assembly | 2 |
| 9 | 05007786 | Bushing Retainer Flange | 2 |
| 10 | 20481574 | Liner, HP Cylinder | 2 |
| 11 | 10074929 | O-Ring, 1.75 x 1.94 x .09 | 4 |
| 12 | 80070352 | Jackpot | 12 |
| 13 | 05034798 | Retaining Ring | 2 |
| 14 | 05034764 | Hydraulic Cylinder | 1 |
| 15 | 05034855 | Backup Ring, 3.75 x4.0 | 2 |
| 16 | 10075000 | O-Ring, 3.75 x4.0 x .13 | 2 |
| 17 | 05141106 | Socket Head Screw, M14 x60 | 16 |
| 18 | 05127584 | Proximity Switch | 2 |
| 19 | 010183572 | Socket Head Screw, M6 x1.0x 22MM | 4 |
| 20 | 05132253 | Piston Assembly | 1 |
| 21 | 20478698 | Support, Intensifier | 2 |
| 22 | 05050323 | Socket Head Screw, M10 × 1.50 × 90MM | 8 |
| 23 | 05061486 | Lock Washer, M10 | 8 |
| 24 | 10074409 | O-Ring, 1.0 × 1.25 × .13 | 2 |
| 25 | 05144183 | Spacer, Proximity Switch | 2 |
| 26 | 05081872 | Gasket, Topworks | 2 |
