Used for: R-esato waterjet cutting machine Related parts: 1004154 valve body, 1003433 gland

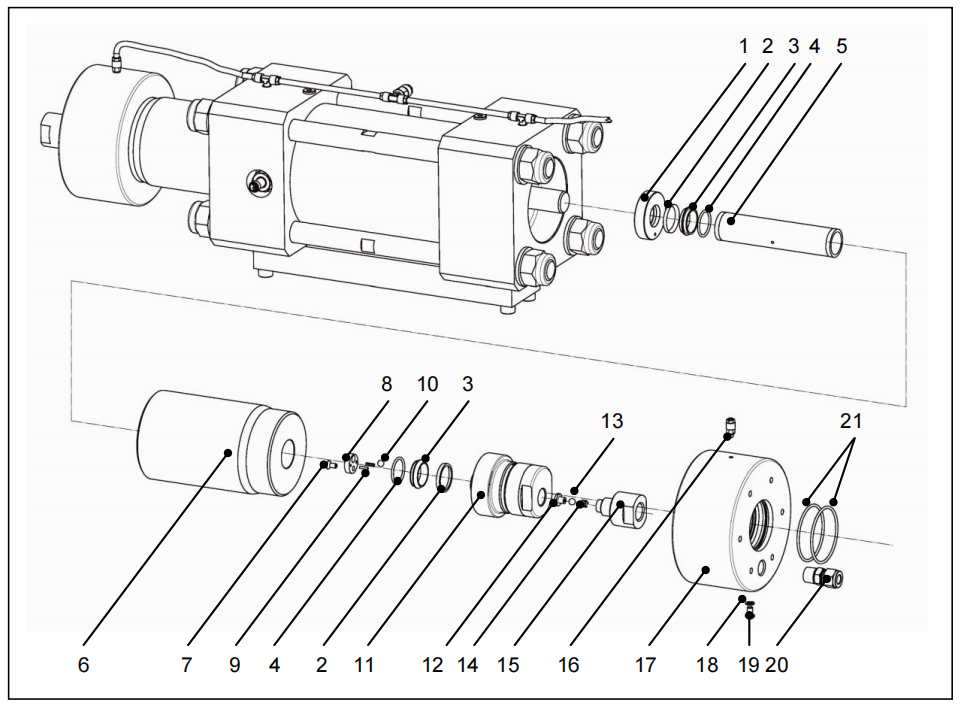

The High Pressure Cylinder Parts Of Resato Waterjet:

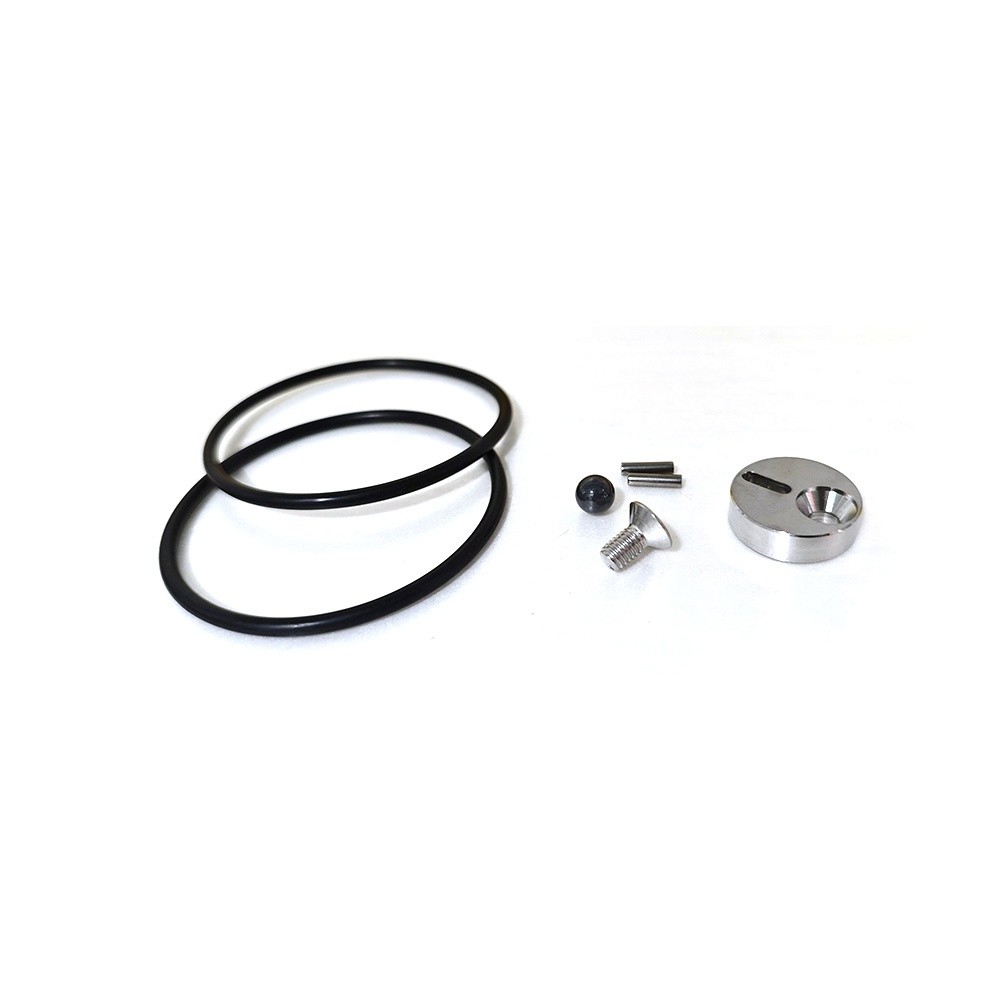

(The Inlet Check Valve Repair Kit including the below parts marked yellow)
| No. | QTY | Product Name | IOP115-20-2 | A | B | C | D | E |
| 1 | 2 | Support ring | 1003697 | x | ||||
| 2 | 4 | Hoop | 1004319 | x | ||||
| 3 | 4 | High-pressure seal | 1010531 | x | x | |||
| 4 | 4 | O-ring | ||||||
| 5 | 2 | Bushing | 1004326 | |||||
| 6 | 2 | High-pressure cylinder | 1003544 | |||||
| 7 | 2 | Screw | 1003435 | x | ||||
| 8 | 2 | Disk | 1001824 | x | ||||
| 9 | 4 | Idler | 1005501 | x | ||||
| 10 | 2 | Ball | 1001753 | x | ||||
| 11 | 2 | Valve body | 1004154 | x | ||||
| 12 | 2 | Seat | 1003436 | x | x | |||
| 13 | 2 | Ball | 1003434 | x | x | |||
| 14 | 2 | Guidance crown | 1003437 | x | x | |||
| 15 | 2 | Gland | 1003433 | x | ||||
| 16 | 2 | Leakrate nipple HP flange | 1005326 | |||||
| 17 | 2 | HP flange | 1004316 | |||||
| 18 | 2 | Sealing ring | 1015590 | |||||
| 19 | 2 | Screw | 1001919 | |||||
| 20 | 2 | Connector | 1003370 | |||||
| 21 | 4 | O-ring | 1000799 | x |
| Repair kit | Description | IOP115-20-2 |
| A | Dynamic seal assembl | 1004539 |
| B | Static seal assembly | 1004540 |
| C | Inlet check valve assembl | 1004604 |
| D | Outlet check valve assembl | 1003269 |
| E | Outlet check valve repair kit | 1004541 |

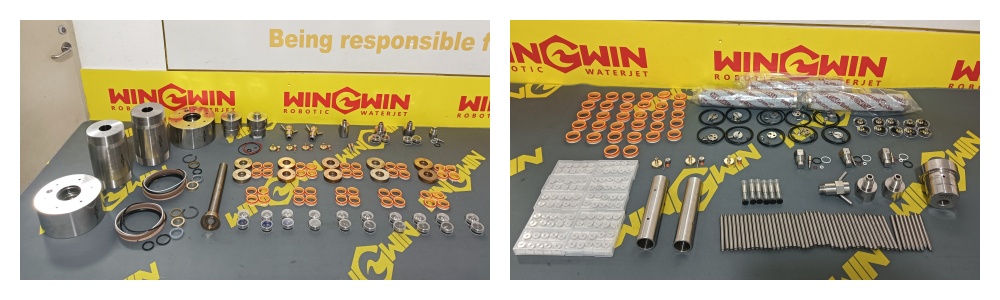

Other parts of RESATO waterjet:
No. | Code | Description |
1 | 1003302 | HP filter element 40 micron |
2 | 1029990 | Seal kit B for cutting head body |
3 | Static seal | |
4 | 1004535 | Mixing chamber |
5 | 1004543 | Repair kit for the hydraulic bleed valve |
6 | 1044042 | Oil filter element |
7 | 1004326 | Bushing |
8 | 1004541 | Outlet check valve repair kit |
9 | Inlet check valve repair kit | |
10 | 1004240 | Tube 0.76 |
11 | 1004273 | Nozzle 0.25 |
12 | 1003433 | Gland |
13 | 1004154 | Valve body |
