Used for: R-esato waterjet cutting machine

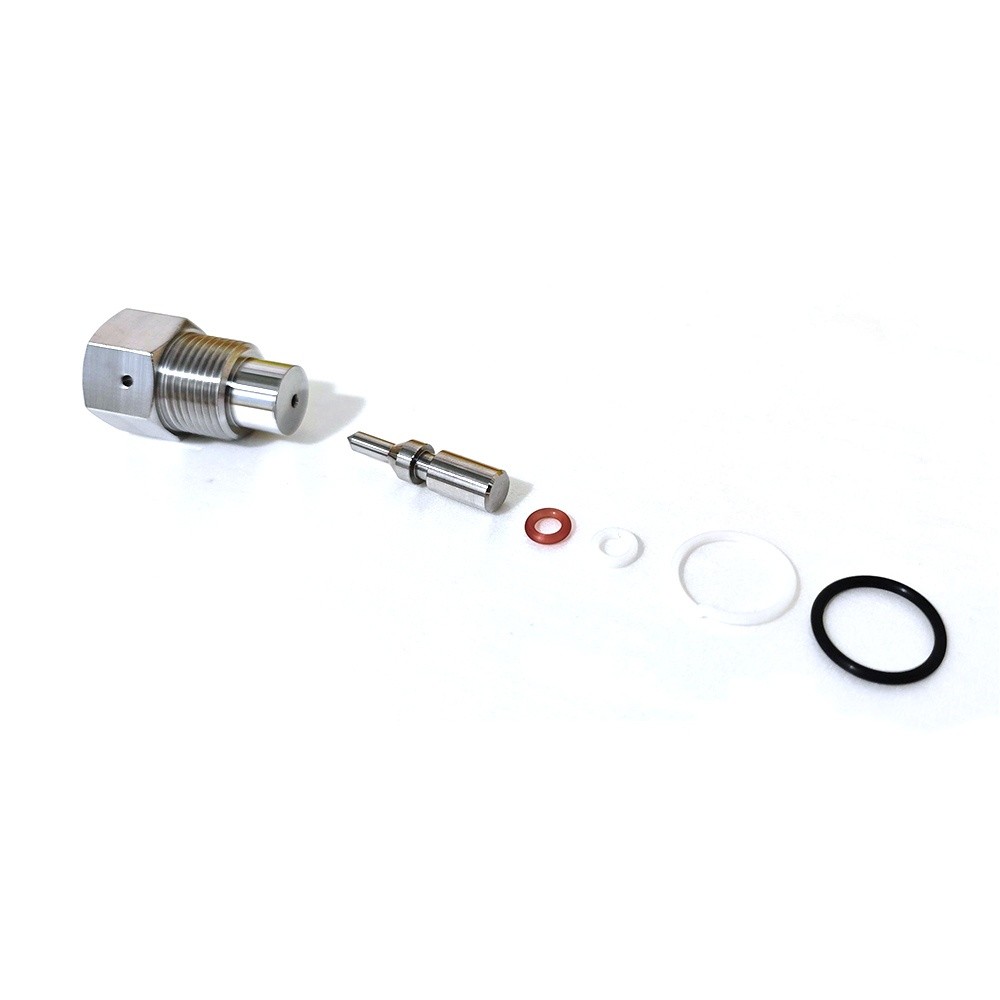

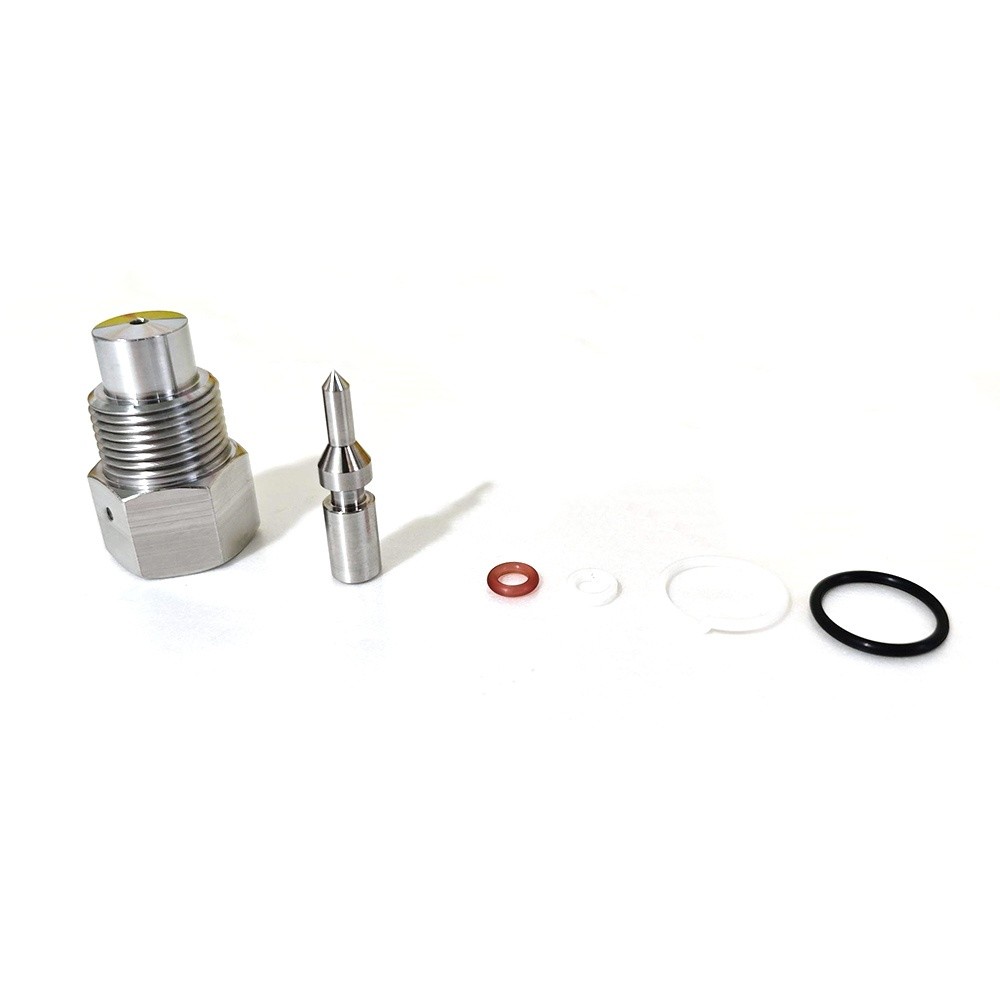

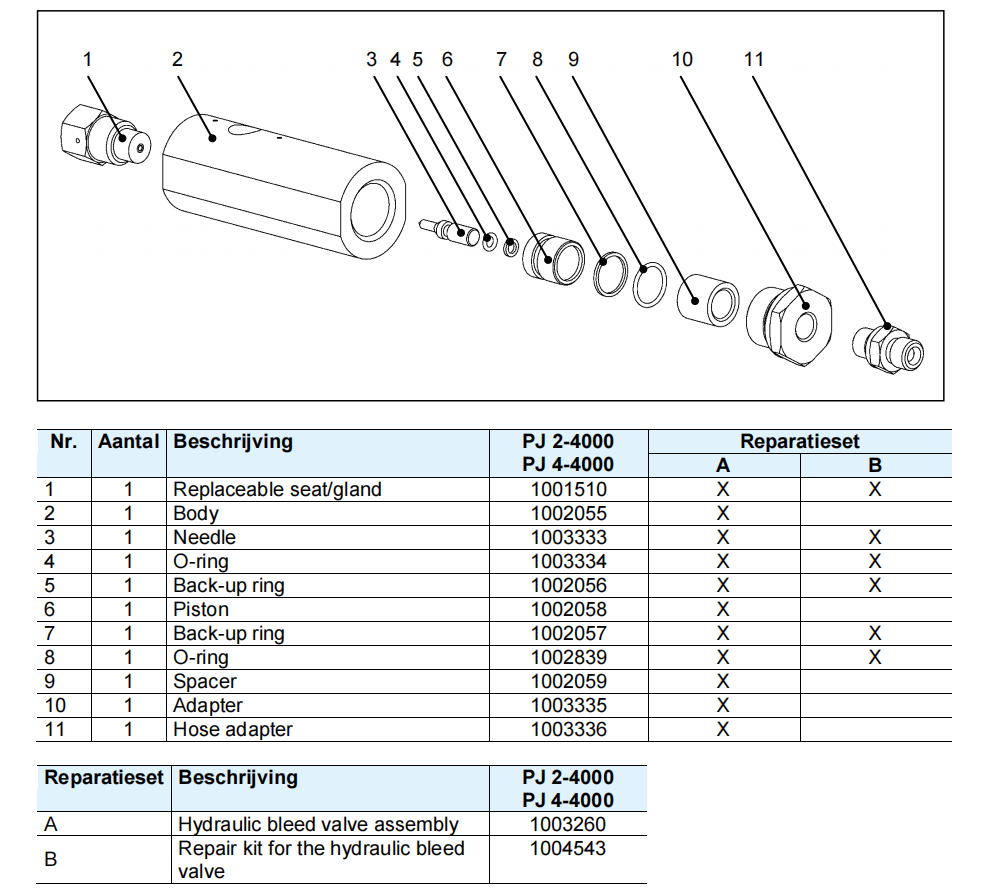

The 1004543 Repair kit for the hydraulic bleed valve including the below parts:
1. Replaceable seat/gland, 1001510
3. Needle, 1003333
4. O-ring, 1003334
5. Back-up ring, 1002056
7. Back-up ring, 1002057
8. O-ring, 1002839
Other parts of RESATO waterjet:
No. | Code | Description |
1 | 1003302 | HP filter element 40 micron |
2 | 1029990 | Seal kit B for cutting head body |
3 | Static seal | |
4 | 1004535 | Mixing chamber |
5 | 1004543 | Repair kit for the hydraulic bleed valve |
6 | 1044042 | Oil filter element |
7 | 1004326 | Bushing |
8 | 1004541 | Outlet check valve repair kit |
9 | Inlet check valve repair kit | |
10 | 1004240 | Tube 0.76 |
11 | 1004273 | Nozzle 0.25 |
12 | 1003433 | Gland |
13 | 1004154 | Valve body |
