80087976 Low Pressure Water Filter Assembly

For STREAMLINE SL-V E50 / SL-IV / NEOLINE WATERJET INTENSIFIER PUMP

Product Description:

kmt waterjet parts water jet spare parts.jpg

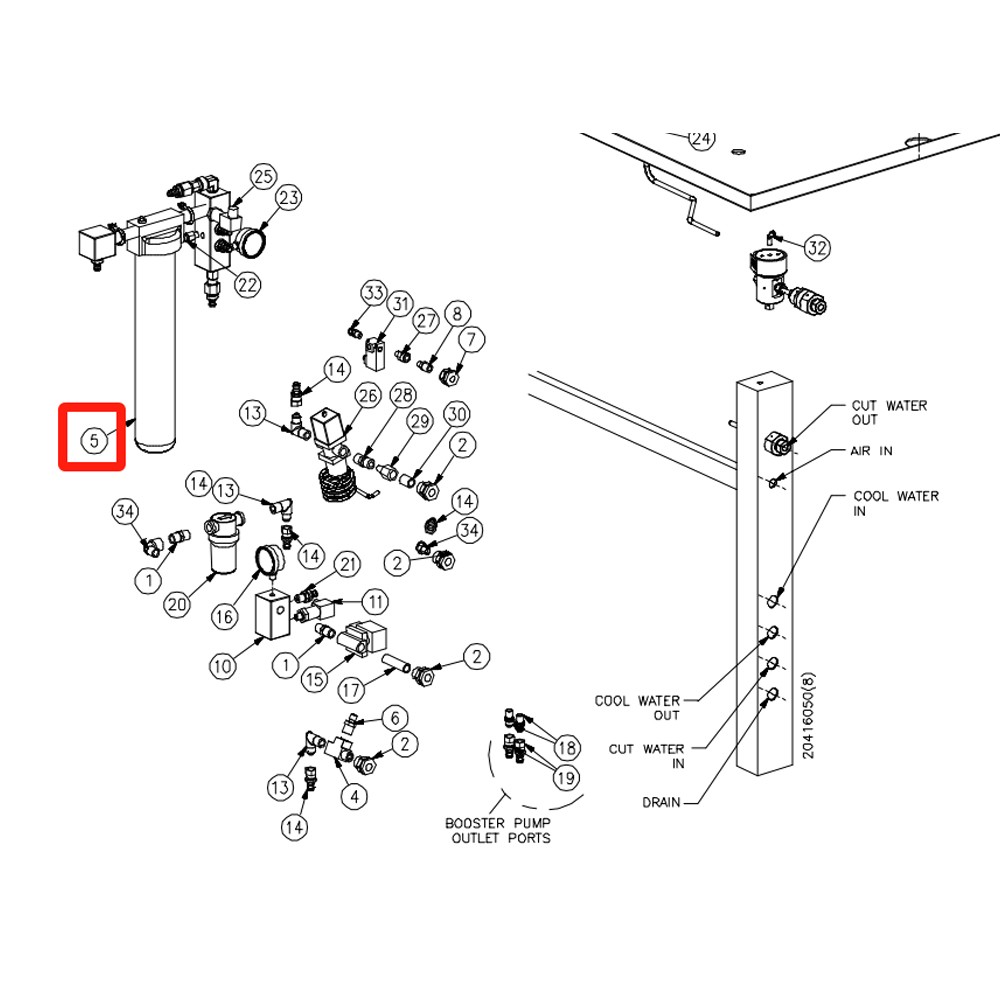

Spare Parts List of Bulkhead Pipe Assembly, with Optional Low Pressure Water Filter Assembly 20416050

Item	Part Number	Description
1	10079226	Coupling, Pipe, .50 x .50
2	10078194	Coupling, Bulkhead, 1.50 x .50
3	10127348	Hose, Push On, .50
4	10073823	Tee, .50 x .50
5	80087976	Low Pressure Water Filter Assembly
6	49834328	Adapter, Pipe/Tube, .50 x .25
7	10077055	Coupling, Bulkhead, .94 x .25
8	10078335	Coupling, Pipe, .25 x .13
9	10079903	Tube, .25
10	20413789	Inlet Manifold, LP Water
11	05140751	Pressure Switch, 30 psi
12	05128947	Adapter, JIC/Pipe, .50 x .25
13	95680922	Adapter, JIC/Pipe, .50 x .50
14	10173805	Hose Barb, .50 x .50
15	49890239	Solenoid Valve, 24V DC
16	05105440	Pressure Gauge, 0-100 psi
17	10127801	Pipe Nipple, .50 x 3.0
18	49886989	Adapter, JIC/Pipe, .50 x .38
19	10189025	Adapter, Hose/JIC, .50 x .50
20	20412815	Inline Filter Strainer
21	49833882	Adapter, Hose/ORB, .50 x .50
22	49868813	Temperature Sensor
23	05044052	Pressure Gauge, 0-200 psi
24	49831480	Grommet, 3.0 x 2.25
25	05142062	Pressure Switch, 60 psi
26	10091866	Water Modulating Valve
27	20453730	Check Valve
28	49834310	Adapter, Pipe/Tube, .50 x .50
29	49834302	Adapter, Pipe/Tube, .50 x .50
30	10145829	Close Nipple, .50
31	49888035	Solenoid Valve
32	10077030	Adapter, Tube/Pipe, .25 x .13
33	10078095	Coupling, Tube, .25 x .13
34	10127298	Elbow, Pipe, .50 x .50
