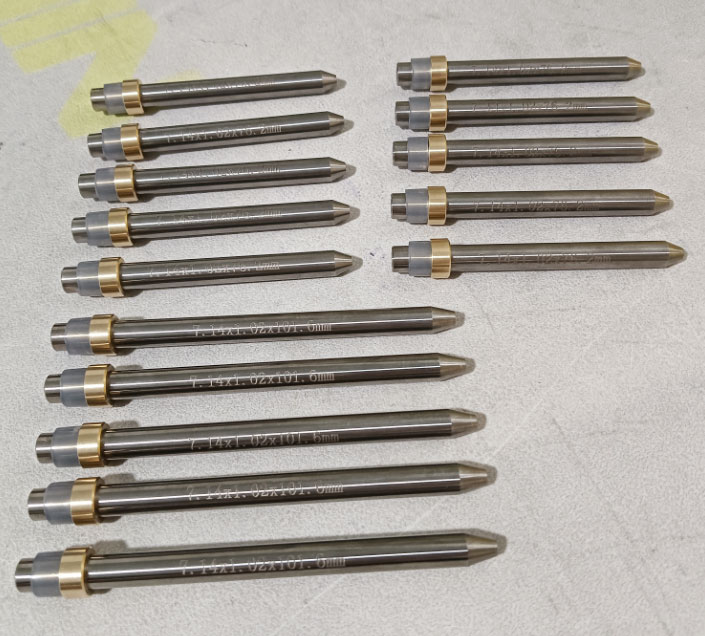

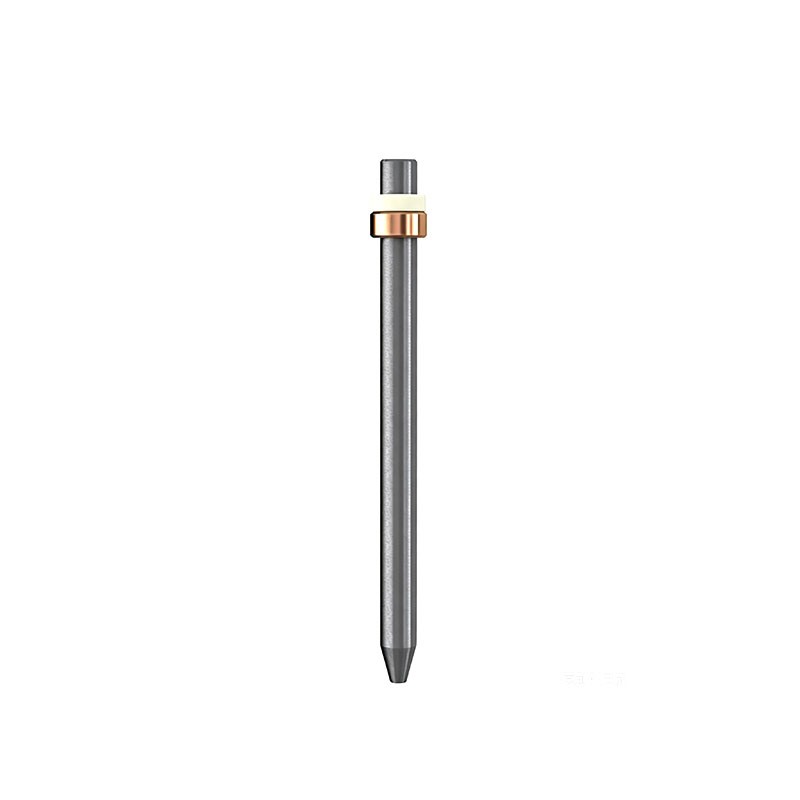

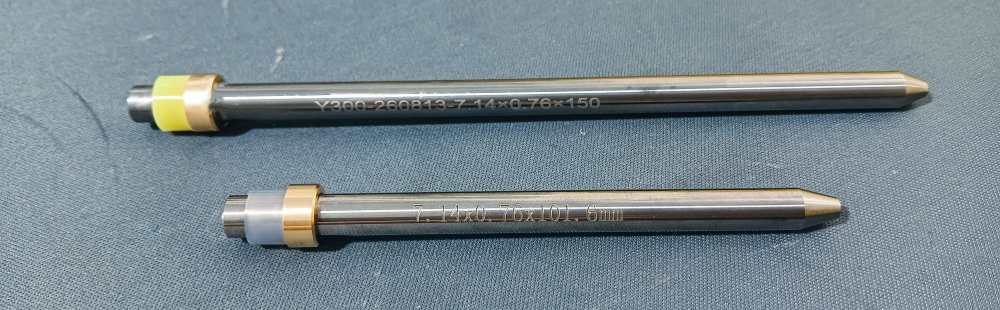

1000003-40-60 1000001-30-40 Mixing Tube / Nozzle

Product name: Waterjet Mixing Tube / Nozzle / Focusing Tube

All the select part number of mixing tube following:

# Waterjet Mixing Tube: The Key Component for Efficient and Precise Waterjet Cutting

In modern waterjet cutting machines, every component of the cutting head plays an important role in determining cutting quality, productivity, and operating cost. Among these components, the waterjet mixing tube is one of the most critical wear parts in an abrasive waterjet cutting system. It works together with the high-pressure nozzle, abrasive metering system, and focusing tube to transform high-pressure water and abrasive particles into a highly concentrated cutting jet.

Our product range includes 1000003-40-60, 1000003-30-40, 1000003-40-40, and 1000003-xx-xx, covering different mixing tube, nozzle, and focusing tube configurations for waterjet cutting applications. Choosing the correct waterjet mixing tube can significantly improve cutting performance, dimensional accuracy, component life, and overall production efficiency.

## 1. The Role of a Waterjet Mixing Tube in a Waterjet Cutting Machine

The basic principle of abrasive waterjet cutting is to convert high-pressure water energy into a fast, concentrated jet. After the high-pressure water passes through the small orifice of the jewel nozzle, abrasive particles such as garnet are introduced into the cutting head. The mixture then enters the waterjet mixing tube, where the water and abrasive are focused into a stable, high-speed cutting stream.

The waterjet mixing tube therefore has several important functions. First, it provides a controlled passage for the abrasive-water mixture. Second, it helps accelerate and stabilize the abrasive particles so that they can effectively remove material from the workpiece. Third, the internal geometry of the tube determines how efficiently the abrasive jet is focused before it reaches the material.

A high-quality waterjet mixing tube can maintain a consistent cutting jet and help produce a clean, narrow kerf. If the tube is correctly matched with the nozzle and abrasive system, the cutting process can achieve better precision and more stable results.

## 2. How Mixing Tube Quality Affects Cutting Performance

The quality of a waterjet mixing tube directly influences the performance of the cutting head. The internal diameter, roundness, concentricity, material hardness, surface finish, and manufacturing accuracy all affect the behavior of the abrasive jet.

A high-quality tube normally has a precisely manufactured internal bore. This allows the abrasive particles to pass through the tube in a more stable and concentrated pattern. As a result, operators can obtain more consistent cutting speed, kerf width, edge quality, and dimensional accuracy.

In contrast, a low-quality or excessively worn waterjet mixing tube may have an enlarged or irregular internal bore. This can cause the cutting jet to become wider and less focused. The cutting edge may become rougher, taper can increase, and the actual cutting position may deviate from the programmed path.

A worn tube can also increase production costs. When the internal bore becomes too large, abrasive consumption and cutting performance may no longer be optimal. In precision applications, replacing the tube at the appropriate time is usually more economical than continuing to operate with a severely worn component.

## 3. How to Select the Correct Size and Bore for Different Materials

Different materials and thicknesses require different cutting parameters. The selection of a waterjet mixing tube should therefore be considered together with water pressure, jewel orifice diameter, abrasive type, abrasive flow rate, cutting speed, and material thickness.

For relatively thin materials and applications requiring high precision, a smaller orifice and appropriately sized focusing tube can provide a finer and more concentrated jet. This configuration is often suitable for materials such as thin stainless steel, aluminum, rubber, plastic, composite materials, and glass.

For thicker materials, operators may select a larger cutting configuration to obtain greater abrasive flow and cutting energy. When cutting thick stone, marble, granite, metal plates, or other hard materials, the focusing tube must be matched correctly with the high-pressure water orifice and abrasive delivery system.

For example, product numbers such as 1000003-40-60, 1000003-30-40, and 1000003-40-40 represent different dimensional configurations and should be selected according to the corresponding cutting head design and application requirements. The exact meaning of each size should always be confirmed against the original manufacturer's specifications before replacement.

It is important not to select a waterjet mixing tube based only on the outside dimensions. The internal bore, tube length, nozzle orifice, abrasive flow, and cutting pressure must all be compatible. An incorrectly matched tube may reduce cutting efficiency even when it physically fits the cutting head.

## 4. Maintenance Knowledge for Waterjet Mixing Tubes

Regular inspection and maintenance are essential for extending the service life of a waterjet mixing tube. Because abrasive garnet continuously passes through the tube at extremely high velocity, the internal bore gradually wears during normal operation.

Operators should regularly check the tube for signs of internal wear, cracks, chips, deformation, or abnormal bore enlargement. If the cutting kerf becomes wider than normal, edge taper increases, cutting quality deteriorates, or the cutting jet appears unstable, the mixing tube should be inspected.

The cutting head should also be kept clean. Abrasive particles and contaminants should not be allowed to accumulate around the mixing tube, nozzle, or abrasive inlet. When installing a new tube, ensure that the components are properly aligned and securely installed. Misalignment between the jewel orifice and focusing tube can negatively affect jet quality and accelerate wear.

It is also recommended to use clean, properly sized abrasive and maintain a stable abrasive delivery system. Contaminated or improperly sized abrasive can increase wear and reduce the service life of the tube.

During replacement, operators should avoid striking or scratching the internal bore. Even small mechanical damage can affect the stability of the abrasive jet. Store spare tubes in clean, dry packaging and protect them from impact or contamination.

## Conclusion

The waterjet mixing tube is a small but extremely important component in an abrasive waterjet cutting machine. Its job is not simply to provide a passage for water and abrasive; it plays a key role in focusing the cutting jet, maintaining cutting stability, and achieving consistent cutting quality.

Choosing a high-quality waterjet mixing tube, matching the correct size and bore to the nozzle and application, and replacing worn tubes at the proper time can help improve cutting accuracy, reduce downtime, control abrasive consumption, and extend the overall performance of the cutting head.

For waterjet cutting applications requiring different pressures, materials, thicknesses, and cutting speeds, selecting the appropriate waterjet mixing tube is essential. Product numbers including 1000003-40-60, 1000003-30-40, 1000003-40-40, and 1000003-xx-xx can be used as references when identifying suitable components. We can also provide various waterjet cutting head assemblies, mixing tubes, nozzles, focusing tubes, and related waterjet spare parts, with a wide range of models available for different waterjet cutting systems.

If you are interested in our waterjet products, contact me please.
