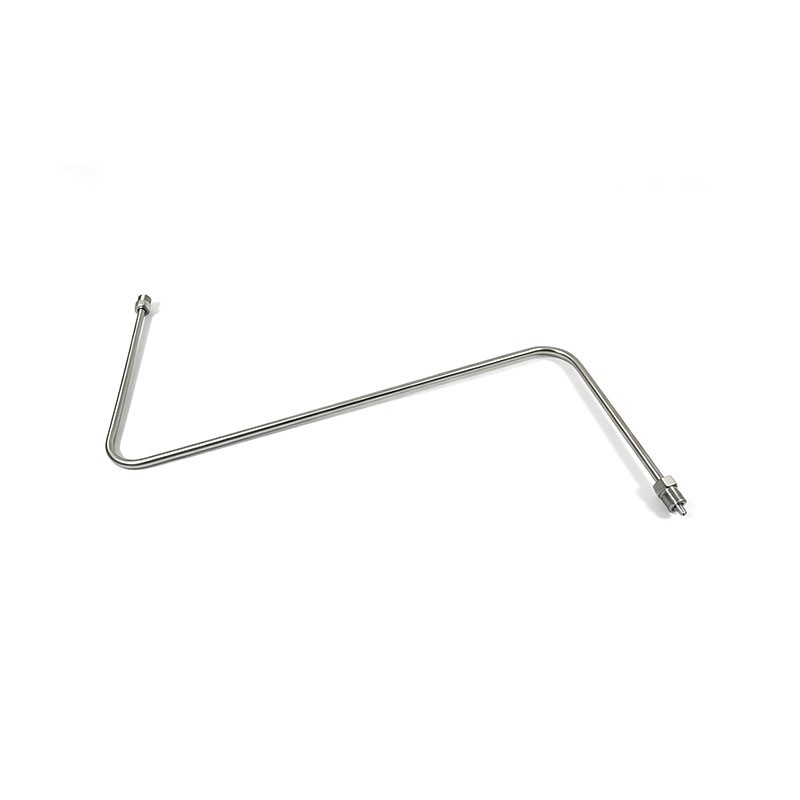

Product number: 20477215 Product name: Tube HP 3/8" Bent JL-I 50
Win-Win waterjet manufactures various models of high-pressure waterjet tubes：1/4", 3/8", 9/16", M7, M10, etc.
Suitable for high-pressure pumps of all pressures: 0-100,000 PSI
Offering excellent quality at reasonable prices.
We have all the parts for the JL-I 50 pump and all the aprts for H2O cutting head.

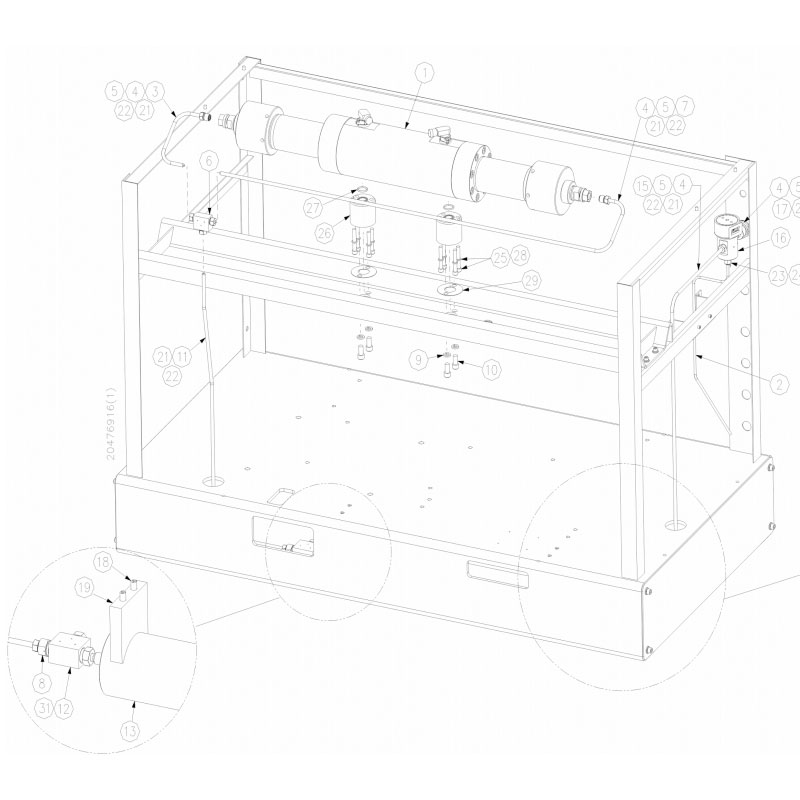

| Pos. | CPN | Qty. | Description |
| 1 | 20460873 | 1 | INTENSIFIER JL-I 3 7/8" X 8" |
| 2 | 20467648 | 1 | TUBE 1/4" HP BENT DUMP VALVE |
| 3 | 80070311 | 1 | TUBE,3/8"-BENT,SHORT-30/50 |
| 4 | 10078715 | 4 | COLLAR, HP, 3/8" |
| 5 | 10078129 | 4 | NUT, GLAND, HP, 3/8" |
| 6 | 20478590 | 1 | COUPLING, HP, TEE, 3/8" |
| 7 | 80070303 | 1 | TUBE,3/8"-BENT,LONG-30/50 |
| 8 | 10079457 | 1 | ADAPTER, 9/16"x3/8" |
| 9 | 95413696 | 4 | WASHER, LOCK, 1/2"x0.125" |
| 10 | 95383790 | 4 | SCREW, SOCKET HEAD, 1/2"x1" |
| 11 | 20477219 | 1 | TUBE HP 3/8" BENT JL-I 50 |
| 12 | 10079465 | 2 | COUPLING, HP, TEE, 9/16" |
| 13 | 05040696 | 1 | ACCUMULATOR, TUV, 1 LITER, |
| 14 | 10078525 | 1 | COUPLING, HP, 90°, 9/16" |
| 15 | 20477215 | 1 | TUBE HP 3/8" BENT JL-I 50 |
| 16 | 20427739 | 1 | VALVE ACTUATOR ASSEMBLY N/O |
| 17 | 49830581 | 4 | BULKHEAD COUPLING HP 3/8" X 9/ |
| 18 | 20455068 | 2 | SCREW M12 X 20 MM SST SOCKET |
| 19 | 20454882 | 4 | CLAMP FIXING ACCUMULATOR 1 L |
| 20 | 10094704 | 8 | HP-NIPPLE TUBE 3/8" L=3" |
| 21 | 10038397 | 8 | FERRULE, 1/4" |
| 22 | 10186153 | 6 | CONDUIT, PROTECTION, HP TUBE |
| 23 | 10078459 | 1 | NUT, GLAND, HP, 1/4" |
| 24 | 10078426 | 1 | COLLAR, HP, 1/4" |
If you are interested in our products, contact me please.
