For STREAMLINE SL-V E50 WATERJET INTENSIFIER PUMP

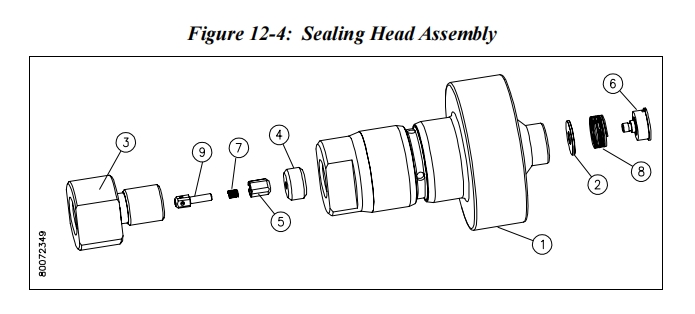

Spare Parts List of K-M-T 80086622 Hydrulic Cartridge Seal
| Item | Part Number | Description |
| 1 | 49834039 | Sealing head body |
| 2 | 10107894 | Inlet poppet check valve |
| 3 | 05116777 | Gland nut |
| 4 | 05112768 | Seat |
| 5 | 05116561 | HP poppet check valve |

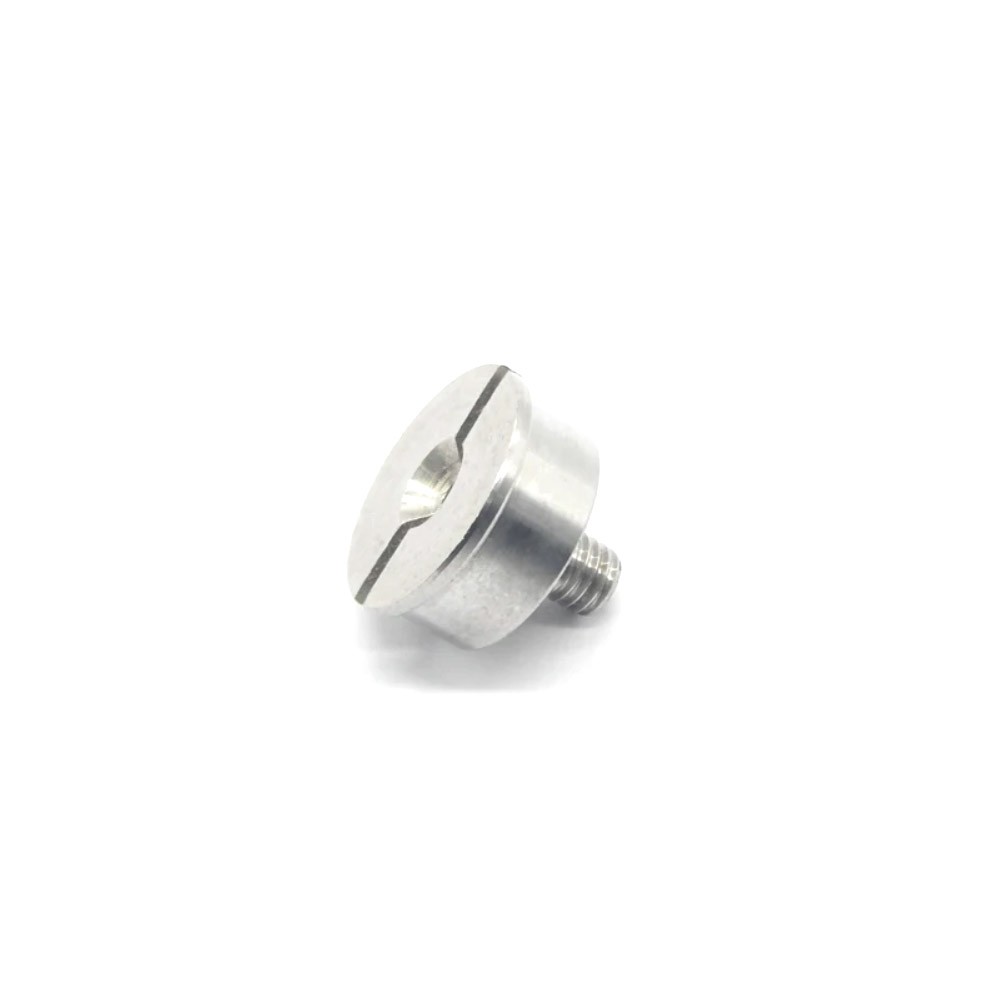

| 6 | 05144670 | Poppet retainer |
| 7 | 05147863 | Compression spring |
| 8 | 49884562 | Compression spring |
| 9 | 05116751 | Poppet pin |
The Parts List for Intensifier Assembly 20434793
| Item | Part Number | Description |
| 1 | 20434777 | HP cylinder |
| 2 | 05039771 | Plunger assembly, .875 |
| 3 | 20417833 | Sealing head assembly |
| 4 | 20414880 | Hydraulic cylinder head |
| 5 | 20422243 | HP seal assembly |
| 6 | 05144696 | Spacer, sealing head |
| 7 | 49838212 | HP cylinder nut, HSEC |
| 8 | 80086622 | Hydraulic cartridge seal assembly |
| 9 | 05007786 | Bushing retainer flanger |
| 10 | 20418805 | Liner, HP cylinder |
| 11 | 10074920 | O-ring, 1.75x1.94x.09 |
| 12 | 80070352 | Jackbolt, 7/16-20x2.31 |
| 13 | 05034798 | Retainning ring, 2.75 |
| 14 | 05034764 | Hydraulic cylinder |
| 15 | 10075000 | O-ring 3.75x4.0x.13 |
| 16 | 05034855 | Backup ring, 3.75x4.0 |
| 17 | 05141106 | Socket head screw, M14x60 |
| 18 | 05127584 | Proximity switch, 20-250V AC/DC |
| 19 | 10183572 | Socket head screw, M6x1.0x22mm |
| 20 | 05132253 | Piston assembly |
| 21 | 20427804 | Intensifier topworks support, 3.0x3.0 |
| 22 | 20427994 | Socket head screw, M10x1.5x65mm |
| 23 | 05061486 | Lock washer M10 |
| 24 | 10074409 | O-ring, 1.0x1.25x.13 |
| 25 | 05144183 | Spacer, proximity switch |
| 26 | 05081872 | Gasket, upper drip pan/stem |
