For STREAMLINE SL-V E50 WATERJET INTENSIFIER PUMP
Spare Parts List of K-M-T 80086622 Hydrulic Cartridge Seal
| Item | Part Number | Description |
| 1 | 80086630 | Seal bushing |
| 2 | 05015060 | Packing ring |
| 3 | 10193522 | O-ring 1.19x1.38x.09 |
| 4 | 05050760 | Backup ring 1.188x1.375 |
| 5 | 05129481 | Backup ring 1.0x1.13x.06 |
| 6 | 05013024 | O-ring 1.25x1.38x.06 |
| 7 | 05129515 | Backup ring, 1.127x.891 |

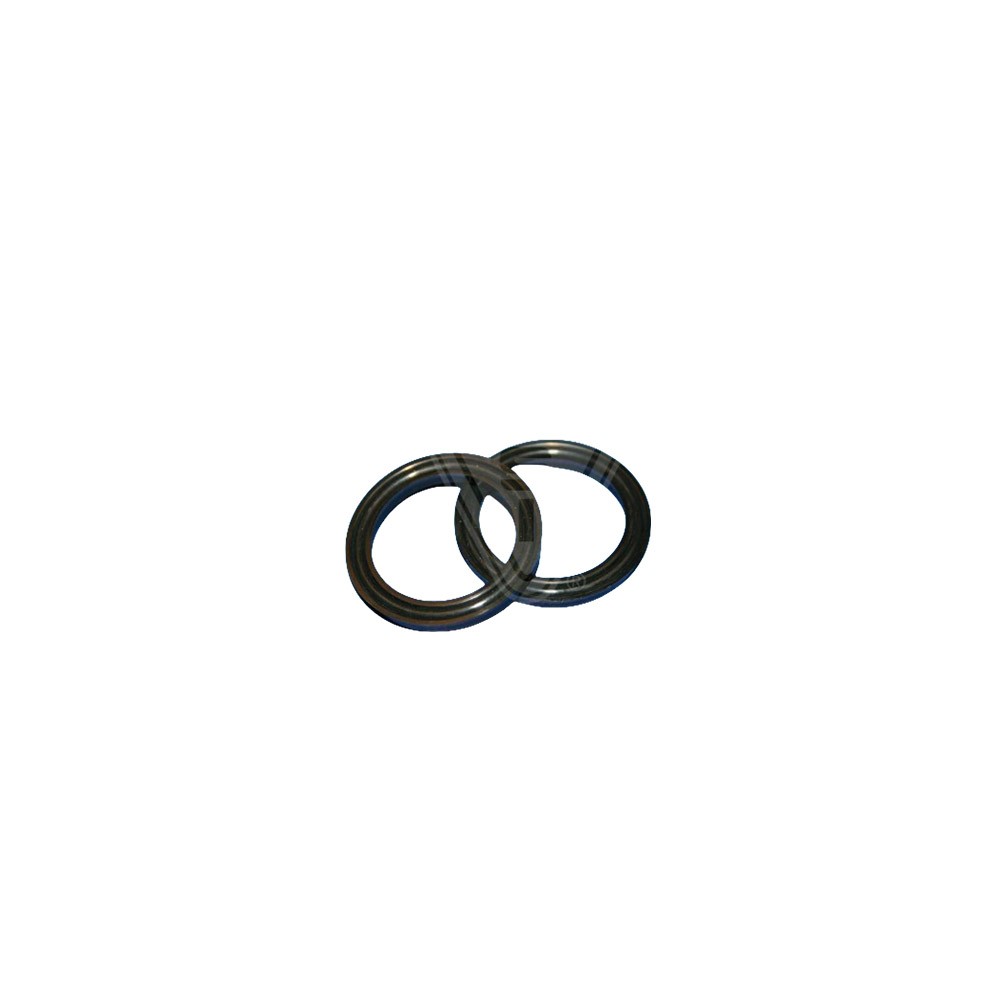

| 8 | 05027255 | Packing seal, U-cap |
The Parts List for Intensifier Assembly 20434793
| Item | Part Number | Description |
| 1 | 20434777 | HP cylinder |
| 2 | 05039771 | Plunger assembly, .875 |
| 3 | 20417833 | Sealing head assembly |
| 4 | 20414880 | Hydraulic cylinder head |
| 5 | 20422243 | HP seal assembly |
| 6 | 05144696 | Spacer, sealing head |
| 7 | 49838212 | HP cylinder nut, HSEC |
| 8 | 80086622 | Hydraulic cartridge seal assembly |
| 9 | 05007786 | Bushing retainer flanger |
| 10 | 20418805 | Liner, HP cylinder |
| 11 | 10074920 | O-ring, 1.75x1.94x.09 |
| 12 | 80070352 | Jackbolt, 7/16-20x2.31 |
| 13 | 05034798 | Retainning ring, 2.75 |
| 14 | 05034764 | Hydraulic cylinder |
| 15 | 10075000 | O-ring 3.75x4.0x.13 |
| 16 | 05034855 | Backup ring, 3.75x4.0 |
| 17 | 05141106 | Socket head screw, M14x60 |
| 18 | 05127584 | Proximity switch, 20-250V AC/DC |
| 19 | 10183572 | Socket head screw, M6x1.0x22mm |
| 20 | 05132253 | Piston assembly |
| 21 | 20427804 | Intensifier topworks support, 3.0x3.0 |
| 22 | 20427994 | Socket head screw, M10x1.5x65mm |
| 23 | 05061486 | Lock washer M10 |
| 24 | 10074409 | O-ring, 1.0x1.25x.13 |
| 25 | 05144183 | Spacer, proximity switch |
| 26 | 05081872 | Gasket, upper drip pan/stem |
