Product

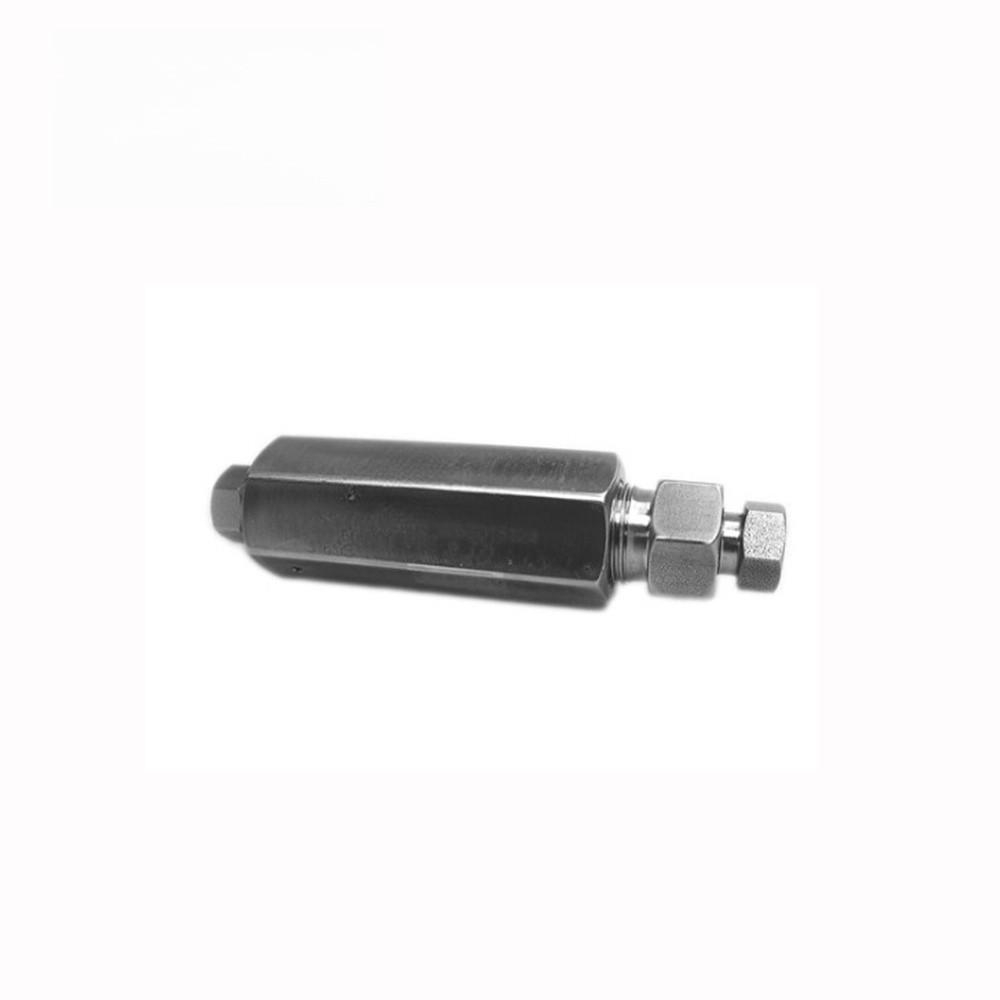

05114137 Water Filter Assy, HP, .25, SST, 60K

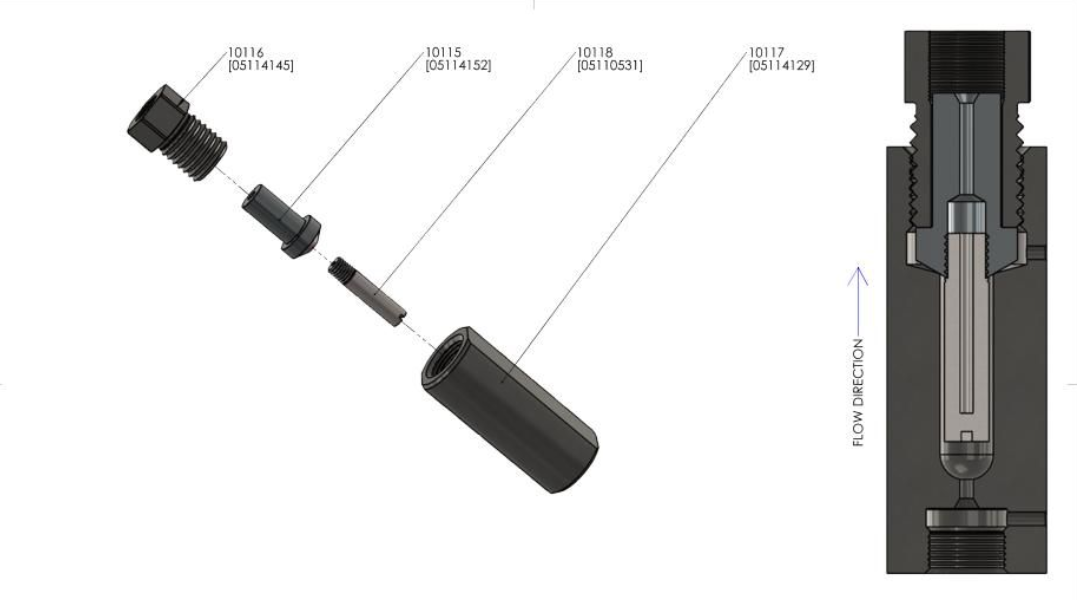

Nozzle filter assembly 1/4", 05114137

Product Description:

05114137 Water Filter Assy, HP, .25, SST, 60K image.png

All the parts in the list below were sourced from one customer, and are shown in the video below:

Item

 Number

Name

1

10138444

diam 3/8" nozzle tyube 8"

2

10178697

valve seat

3

10189181

valve body

4

10178978

seal assembly

5

49894207

stem

6

05114137

nozzle filter complete

7

05110531

filter element 1/4"

8

05114152

seat 1/4"

9

91959635

body swivel joint

10

91959650

seal assembly  swivel joint

11

10094647

thrust  washers

12

10084713

thrust bearing

13

301039

Hp coil 1/4" axle 4 low

14

301312

Hp coil 1/4" axle 2

15

10079051

coupling hp 90 1/4"

16

49864473

coupling hp,90, 3/8"

17

10079481

coupling hp وtee, 1/4"

18

10078590

coupling hp وtee, 3/8"

19

05007786

flange , seal hyd

20

05144662

valve poppet lp water

21

05112768

seat , seal head 17mm

22

05116561

seat seal head poppet

23

80146

threading die 1/4-28

24

80147

threading die 3/8 -24

25

80148

threading die 9/ 16-18

26

05108808

coning blade 1/4" hand

27

05108824

coning blade 3/8" hand

28

05108816

coning blade9/ 16" hand

29


Orifice 0.17mm
