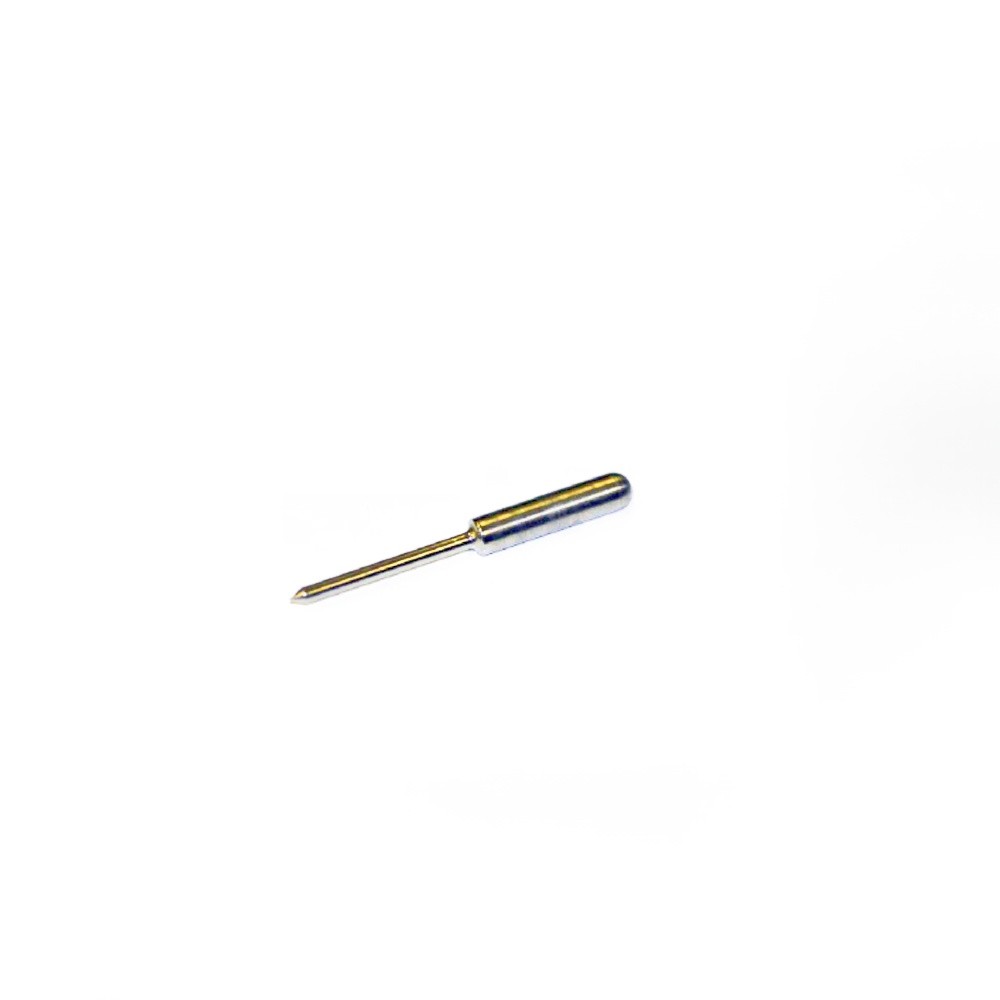

Valve Stem Part Number 49894207 was discontinued. The 20435636 the direct replacement. Flat top & 90 degr. tip on the stem

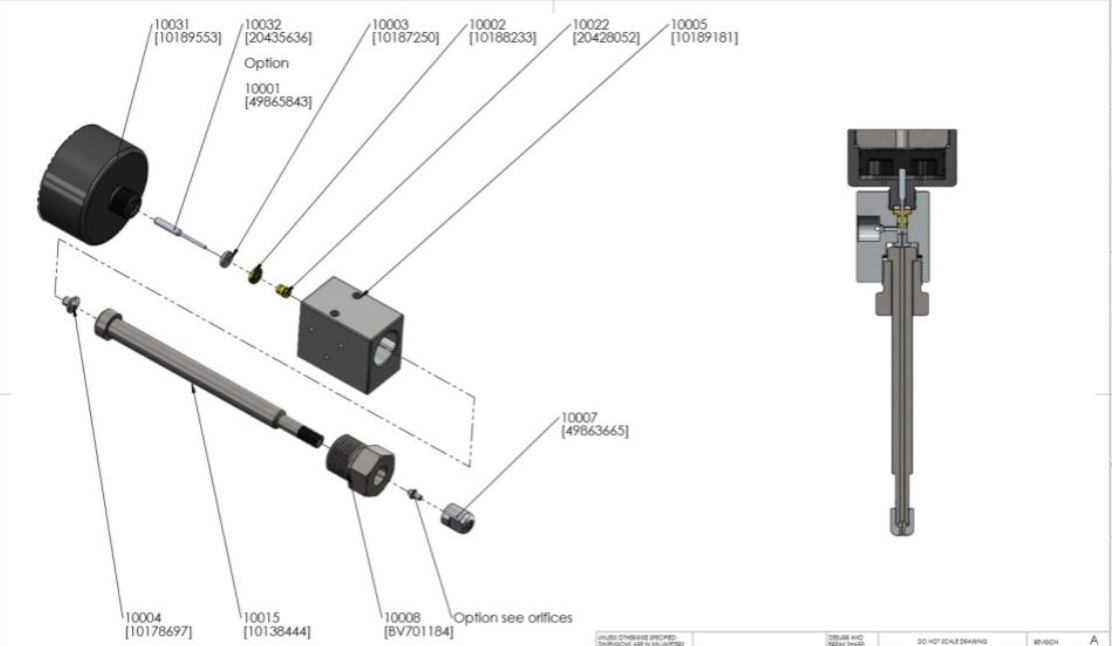

The 49894207 Stem, Flat End, Pneumatic Valve used for the below parts:
Item | Number | Name |
1 | 10138444 | diam 3/8" nozzle tyube 8" |
2 | 10178697 | valve seat |
3 | 10189181 | valve body |
4 | 10178978 | seal assembly |
5 | 49894207 | stem |
6 | 05114137 | nozzle filter complete |
7 | 05110531 | filter element 1/4" |
8 | 05114152 | seat 1/4" |
9 | 91959635 | body swivel joint |
10 | 91959650 | seal assembly swivel joint |
11 | 10094647 | thrust washers |
12 | 10084713 | thrust bearing |
13 | 301039 | Hp coil 1/4" axle 4 low |
14 | 301312 | Hp coil 1/4" axle 2 |
15 | 10079051 | coupling hp 90 1/4" |
16 | 49864473 | coupling hp,90, 3/8" |
17 | 10079481 | coupling hp وtee, 1/4" |
18 | 10078590 | coupling hp وtee, 3/8" |
19 | 05007786 | flange , seal hyd |
20 | 05144662 | valve poppet lp water |
21 | 05112768 | seat , seal head 17mm |
22 | 05116561 | seat seal head poppet |
23 | 80146 | threading die 1/4-28 |
24 | 80147 | threading die 3/8 -24 |
25 | 80148 | threading die 9/ 16-18 |
26 | 05108808 | coning blade 1/4" hand |
27 | 05108824 | coning blade 3/8" hand |
28 | 05108816 | coning blade9/ 16" hand |
29 | Orifice 0.17mm |
All the parts in the list above were sourced from one customer and are shown in the video below:
