ROBOT WATERJET


ROBOT SPECIFICATIONS

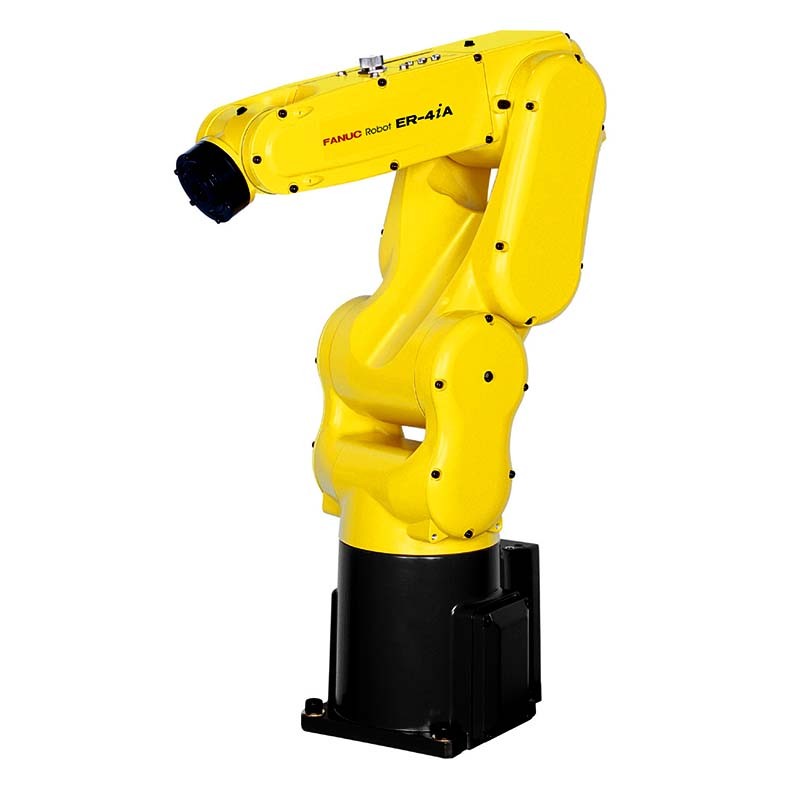

  • FANUC ER-4iA

  • 6-axis mechanical unit

  • Payload: 4kg

  • Reach: 550mm

  • R-30iB Mate Plus Controller

  • iPendant with touch screen

  • iRVision integrated vision

  • 6 digital inputs / 2 digital outputs on robot arm

  • 20 digital inputs / 20 digital outputs on controller

  • 2 x Ethernet ports

  • 2 x double air solenoids on robot arm (air supply not included)

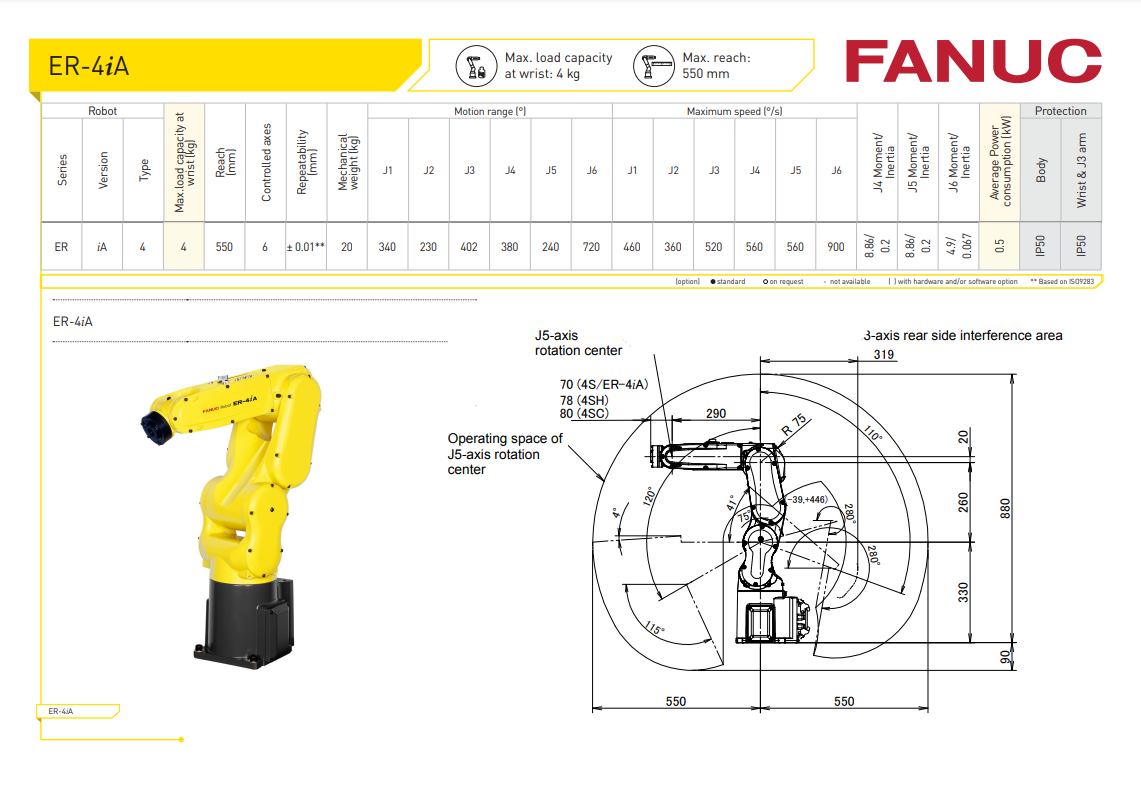

fanuc er-4ia educational robotic arm parameters and drawing.png

EDUCATIONAL CELL

  • Strong anodised aluminium frame available in silver and black

  • Wheels for easy transport and feet for stability

  • 10m power cable with standard 230V plug

  • Easy access door with safety switch

  • Electric gripper pre-mounted on robot

  • Mounted and calibrated camera

  • Nylon Solitaire board and parts

  • Slotted Aluminium work surface for easy customisation
