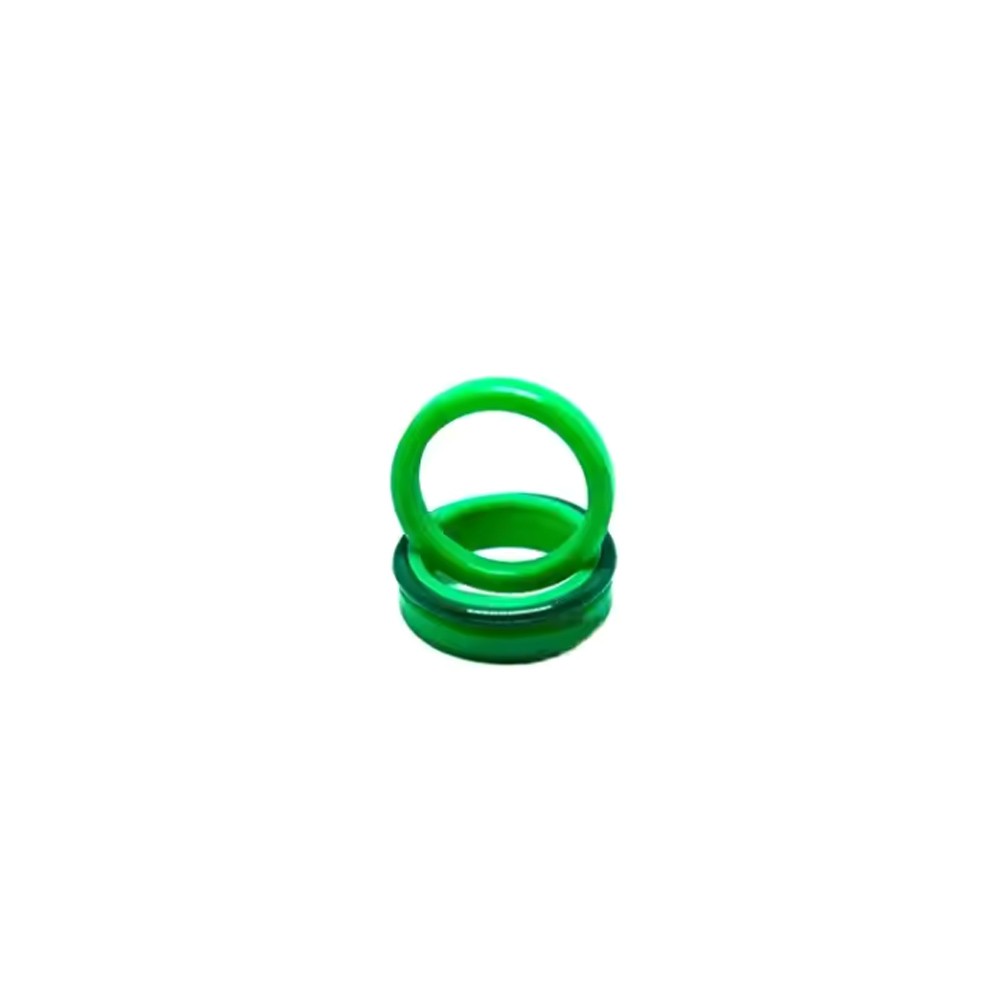

T981.00 Static Seal Kit

Used for: CMS Waterjet Cutting Machine

Product Description:

Win-Win waterjet provides the genuine / original parts from CMS apart pump and many replacements for CMS waterjet cutting machine.

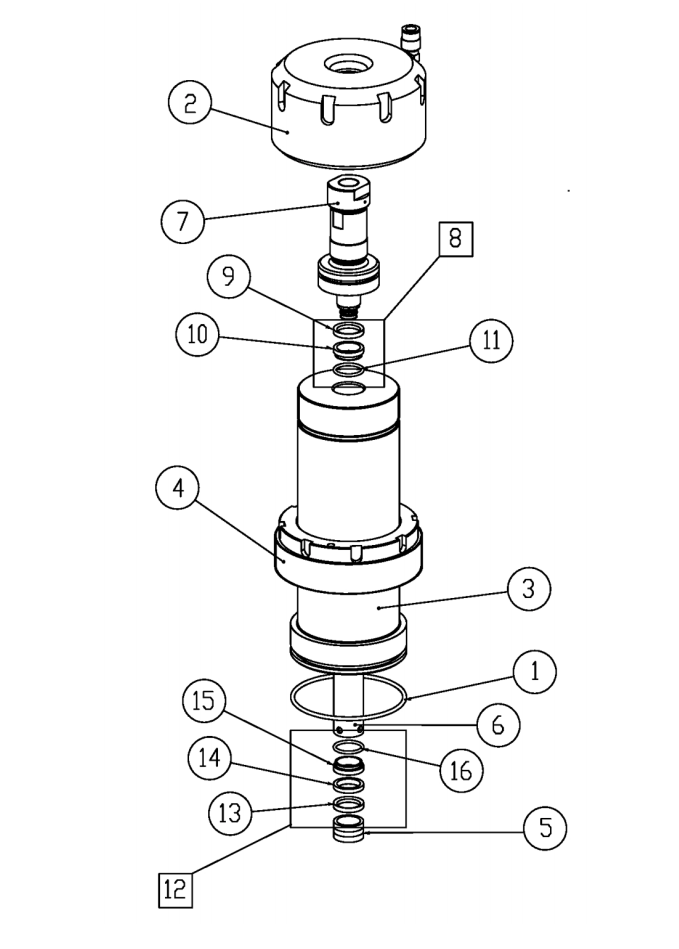

No.	Product Number	Description
-	-	MOLTIPLICATORE ALTISSIMA PRESSIONE
		ULTRA-HIGH PRESSURE MULTIPLIER
1	L102.06	GUARNIZIONE OR
		O-RING
2	D0181AA - 00	ASSIEME FLANGIA CHIUSURA MOLTIPLICATORE
		MULTIPLIER CLOSING FLANGE ASSEMBLY
3	B013.03A	CILINDRO HP MOLTIPLICATORE
		MULTIPLIER CYLINDER
4	B015.03	GHIERA CILINDRO
		HP CYLINDER LOCKRING
5	B074.04	BRONZINA CILINDRO
		HP CYLINDER BUSHING
6	B175.03	CILINDRO DISTANZIALE MOLTIPLICATORE
		SPACER CYLINDER
7	T954.00	GRUPPO VALVOLA MAND. ASP. D28
		INTAKE AND DELIVERY VALVE ASSEMBLY
8	T981.00	KIT RICAMBI GUARN. STATICA HP
		HP STATIC GASKETS KIT
12	T982.00	KIT RICAMBI GUARN. DINAMICHE HP
		HP DYNAMIC GASKETS KIT

8	T981.00	KIT RICAMBI GUARN. STATICA HP
		HP STATIC GASKETS KIT
9	L010.07A	REGGISPINTA F 22/28
		FEMALE THRUST BEARING 22/28
10	L012.08	GUARNIZ. HP PER OR
		HP GASKET FOR O-RING
11	L104.06	GUARNIZIONE OR
		O-RING
12	T982.00	KIT RICAMBI GUARN. DINAMICHE HP
		HP DYNAMIC GASKETS KIT
13	L010.07A	REGGISPINTA F 22/28
		FEMALE THRUST BEARING 22/28
14	L011.07A	REGGISPINTA M 22/28
		TAP THRUST BEARING 22/28
15	L012.08	GUARNIZ. HP PER OR
		HP GASKET FOR O-RING
16	L104.06	GUARNIZIONE OR
		O-RING
