HT022044/103 HT022044/103 CP022022/591 Retaining Ring

Model: HT022044/103 HT022044/103 CP022022/591

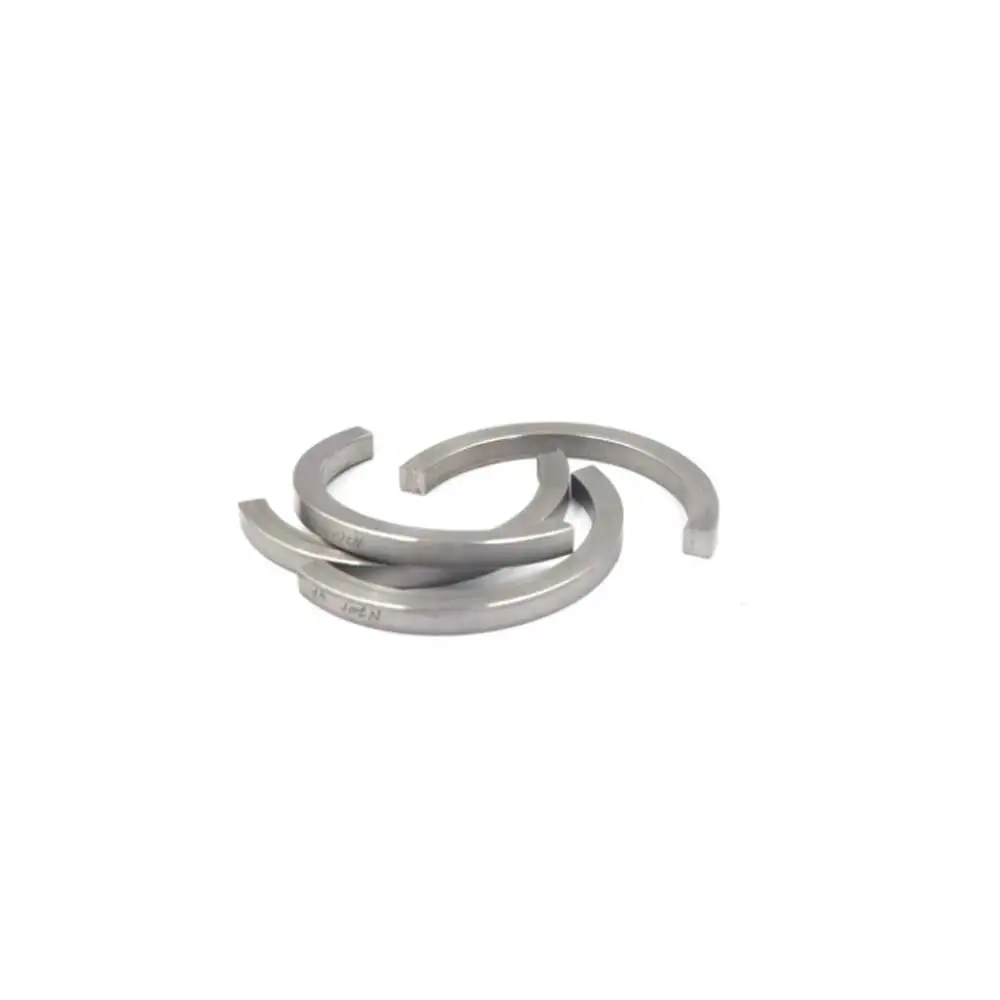

Name: Retaining ring
Used for : BFT/BHDT waterjet
Service: Design, production, assembly and technical support of waterjet cutting solutions, including robotic waterjet cutting cell, waterjet machine and waterjet pump etc.

PDF

Product Description:

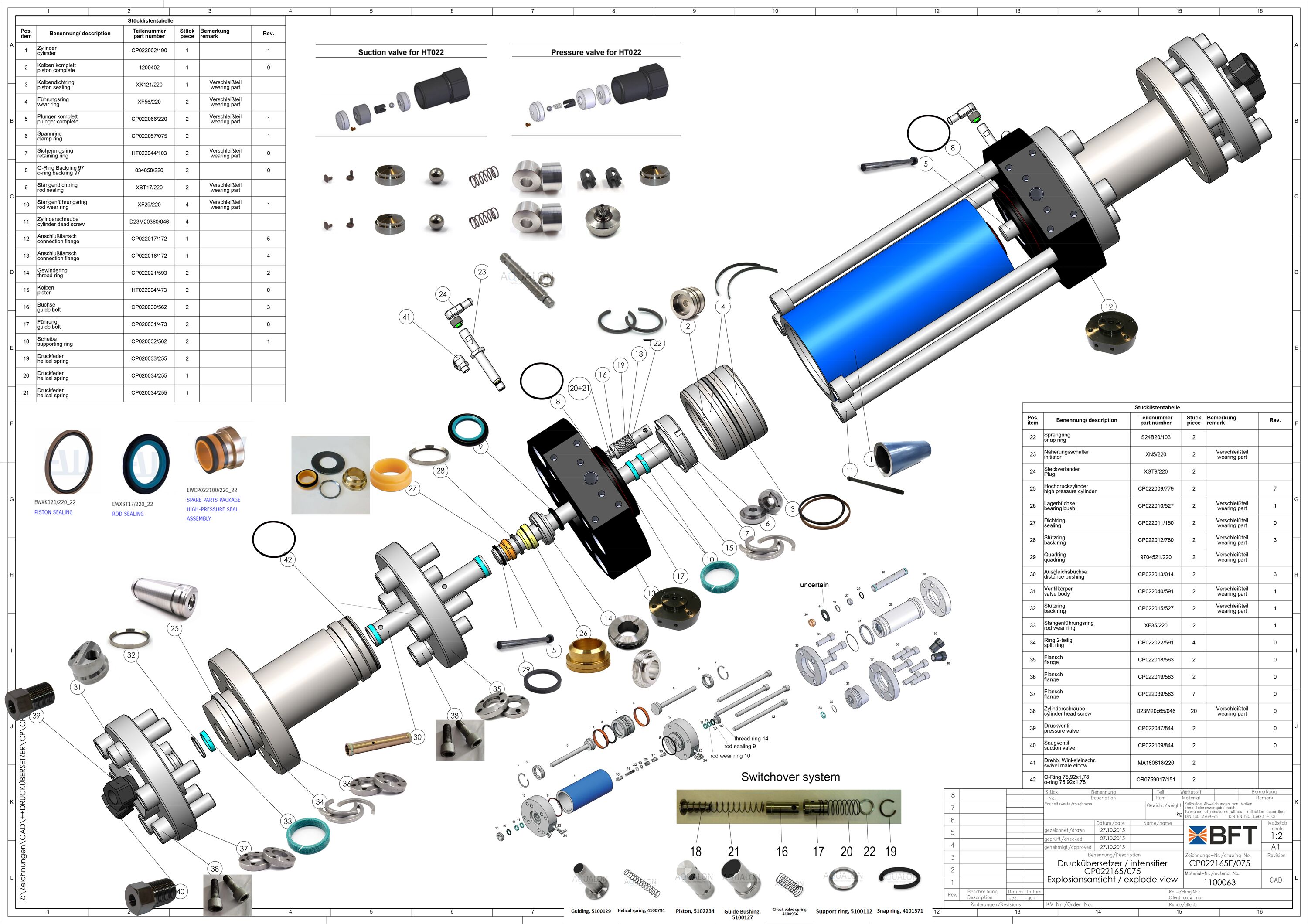

Win-Win provides all series replacement for BFT waterjet cutting machine:

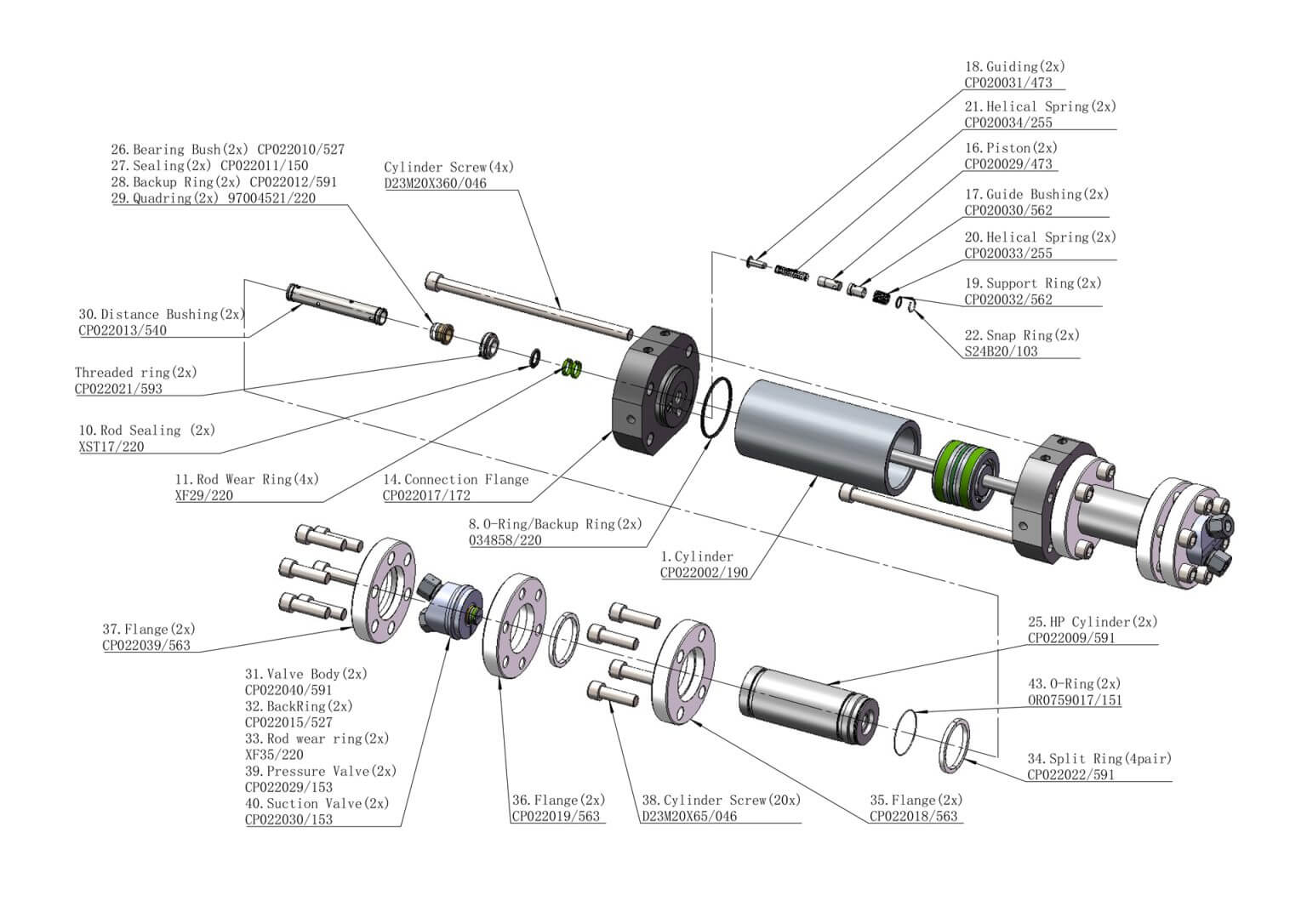

Item	Part Number	Description
1	CP022002/190	cylinder
8	034858/220	o-ring backring 97
10	XST17/220	rod sealing
11	XF29/220	rod wear ring
14	CP022017/172	connection flange
16	CP020029/473	Piston
17	CP020030/562	Guide bushing
18	CP020031/473	guide bolt
19	CP020032/562	supporting ring
20	CP020033/255	helical spring
21	CP020034/255	helical spring
22	S24B20/103	snap ring
25	CP022009/779	high pressure cylinder
26	CP022010/527	bearing bush
27	CP022011/150	Sealing
28	CP022012/780	Back ring
29	CP022040/591	quadring
30	CP022013/014	distance bushing
31	CP022040/591	Valve body
32	CP022015/527	back ring
33	XF35/220	rod wear ring
34	CP022022/591	split ring
35	CP022018/563	flange
36	CP022019/563	flange
37	CP022039/563	flange
38	D23M20x65/046	cylinder head screw
39	CP022047/844	pressure valve
40	CP022109/844	suction valve
