HP Tube Threading Coning and Bending Tool Kit with Case

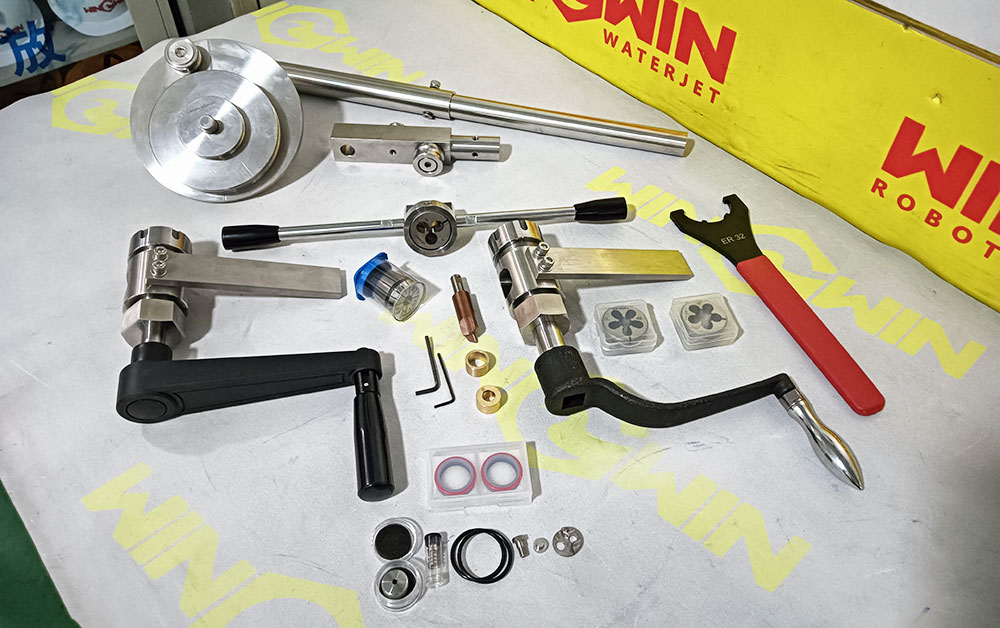

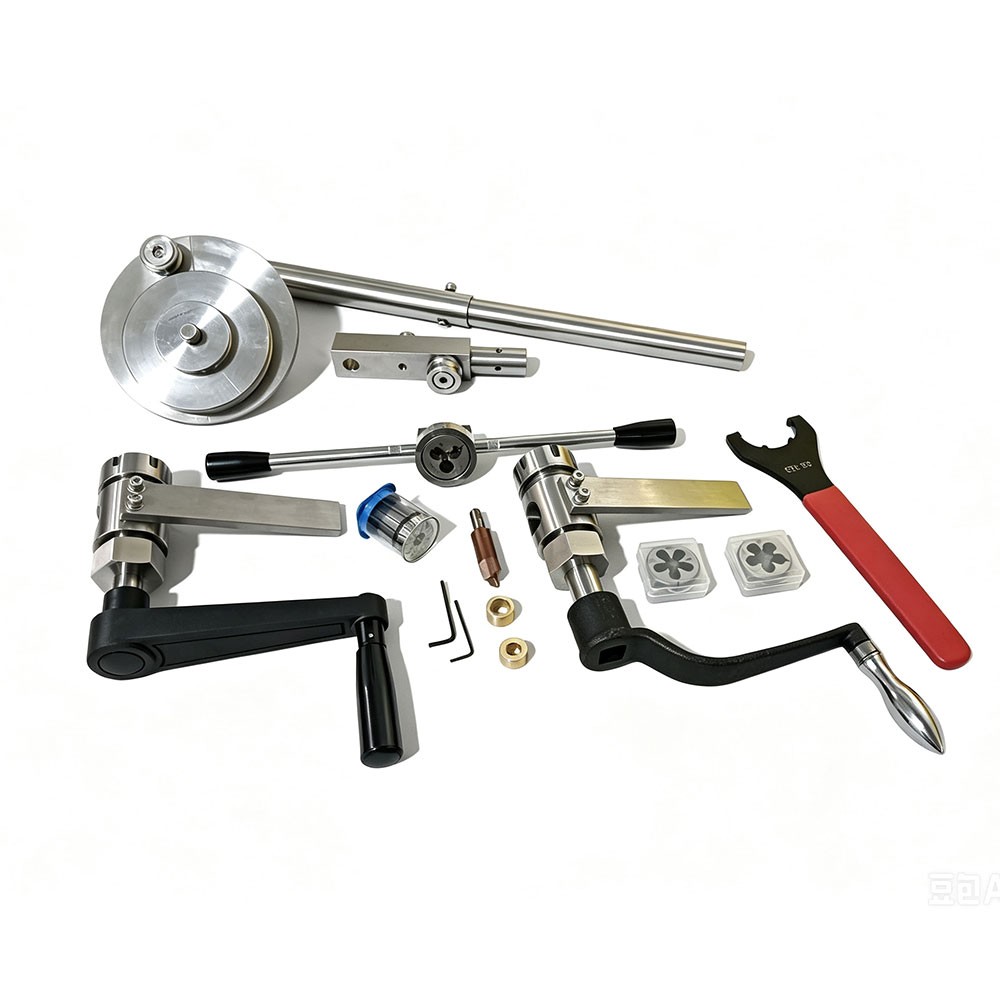

The below Waterjet Tool Kit Manual Coning Tool includes:

Threading and Coning Tool for 1/4", 3/8" and 9/16" HP Tube;

Bending Tool for 1/4" and 3/8" HP Tube.

The advantages of this HP Tube Threading Coning and Bending Tool Kit：

Complete High-Pressure Tube Coning & Threading Kit for 1/4", 3/8" & 9/16" HP Tubing

The Coning and Threading Kit is a complete tooling package developed for preparing 1/4", 3/8", and 9/16" high-pressure tubing used in waterjet cutting equipment and other ultra-high-pressure fluid systems. Manufactured for dependable performance, the kit allows technicians to accurately machine tube ends by producing clean cone surfaces and precise threads, helping create secure, high-pressure sealing connections.

Supplied with all essential tools in one convenient storage case, this kit is suitable for routine maintenance, tube fabrication, equipment repair, and new system installation. Whether used in a workshop or on-site, it delivers reliable tube preparation while reducing setup time and improving service efficiency.

Key Features

Supports Multiple Tube Sizes – Compatible with the most widely used 1/4", 3/8", and 9/16" HP tubing found in waterjet systems.

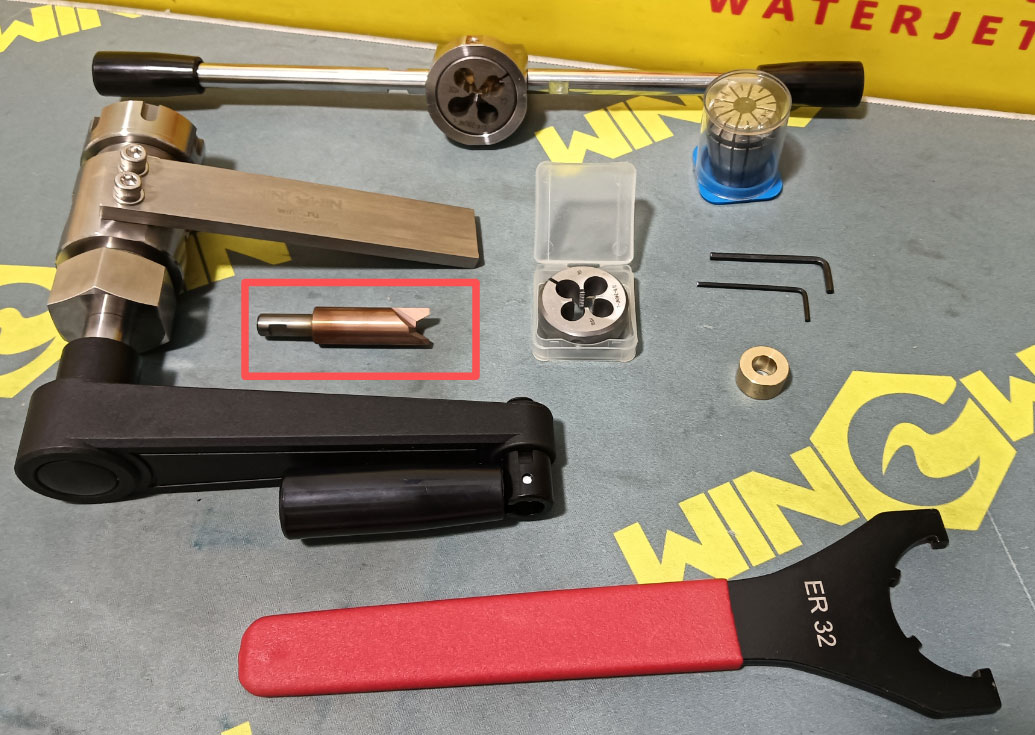

Most importantly, we use a special steel material to make coning machining tool (coning blade). It is a new type of blade with ultra-high hardness, suitable for machining high-strength HP tubes; it has strong wear resistance, reducing the frequency of blade replacement; it has better surface quality; and it has good heat resistance.

Complete Maintenance Solution – Includes the necessary tooling for coning, threading, and finishing high-pressure tubes in one organized kit.

High Machining Accuracy – Precision-manufactured components help produce uniform cone angles and thread profiles for dependable sealing performance.

Built for Professional Use – Suitable for waterjet service technicians, maintenance teams, equipment manufacturers, and industrial repair applications.

Portable Storage Case – Durable carrying case protects the tools, keeps them organized, and makes transportation between job sites easy.

Designed for long service life and consistent performance, this professional coning and threading kit helps improve tubing preparation quality, minimizes the risk of connection leaks, and supports the reliable operation of high-pressure waterjet equipment. It is an ideal choice for maintenance, replacement, and installation work involving HP tube assemblies.

Coning and Threading Kit with Protective Case is a professional maintenance tool designed for preparing high-pressure tubing used in Flow waterjet systems. It enables technicians to accurately machine tube ends by creating precision cones and threads, ensuring reliable connections with glands, collars, adapters, and other high-pressure fittings. Ideal for servicing waterjet pumps, intensifiers, cutting heads, and HP tubing assemblies, this complete kit is supplied in a durable storage case that keeps every tool organized, protected, and ready for on-site maintenance or workshop use.

Safety Notice: Proper cone and thread preparation is essential for the safe operation of ultra-high-pressure waterjet equipment. Poorly machined tubing may result in leaks, connection failure, or hazardous high-pressure accidents. All coning and threading work should be performed by experienced personnel using properly maintained tools and suitable tube supports. Carefully inspect every finished cone and thread before installation, and always replace worn or damaged glands, collars, inserts, or tubing instead of reusing parts that show signs of wear, distortion, cracking, or pressure damage.

How to use the threading and coning tool of the HP Tube Threading Coning and Bending Tool Kit:

How to use the bending tool of the HP Tube Threading Coning and Bending Tool Kit:

Please avoid the common operational mistakes shown in the following video, as these can easily damage the tool:

https://www.youtube.com/shorts/fO8zHO4NXzU

What are the precautions for using the waterjet pipe coning tool? How to use the coning tool?

A. Misunderstandings in Using Waterjet Cone / Coning Tool:

1. The handle cannot rotate too fast.

2. When the blade is removed after the conical surface is processed, the rotating handle cannot rotate in the reverse direction.

The above two methods are likely to cause damage to the blade.

B. So how do you do it?

When using the blade, follow these steps:

When inserting,

the nut rotates slowly,

while the handle rotates,

when pushing out,

the handle does not move,

loosen the nut,

and the handle comes out.

This set of tools is universally applicable and uses a common numbering system：

20468798 14536-60-4-6 B-5077-2 302025-1 05108865, 05108873, 05108881, 05109897, 05109889.

This HP Tube Threading Coning and Bending Tool Kit with Case tool kit covers the following part numbers.

Premium Straight 87K 3/8 Inch OD Tubing (046562-xxx)

87K 3/8 Inch Anti Vibration Gland (A-2838)

87K 1/4 Inch Anti Vibration Gland (044347-1)

87K 1/4 Inch Anti Vibration Collar (044348-1)

3/8 Inch Double Cone High-Pressure Insert (012952-1)

1-MS402A 1/4" Threading Tool
1-MSP0215 3/8" Die
1-MSP0216 9/16" Die
1-MS10100344 3/8" Bushing
1-MS10100345 9/16" Bushing
1-MS101F1578 3/8" Blade
1-MS10100883 9/16" Blade
1-MS90250 3/8" Collet
1-MS90251 9/16" Collet
1-MSMCTH4 1/4" Coning Tool (including 90253-ER25 Collet Nut
Wrench and Manual)
1-MS101F1350 Vice Stand
4-MSP1995 Screws 10-24x3
1-WM1119 Deburr Tool, Twist-A- Burr
1-WM1286 Tap Heavy 4oz
1-Tool Box

302024-1 H2O JET Threading Tool Kit
302026-1 H2O JET Coning Tool Kit
302027-1 2O JET Bending Tool Kit - (1/4" and 3/8" only) 400350-3 Tool Box

Bending Tool Kit-H20 JET 1/4" & 3/8" HP tubing 302027-1

Threading Tool Kit 302024-1

Coning Tool Kit 302026-1

BLADE CONING TOOL 9/16", 05108816, 400136-3

BLADE CONING TOOL 1/4", 05108808, 60BL4, 400136-1

BLADE CONING TOOL 3/8", 05108824, 60BL6, 400136-2

THREADING DIE 1/4" - 28, 400118-1

THREADING DIE 3/8" - 24, 400118-2

THREADING DIE 9/16"-18, 10078301, 400118-3

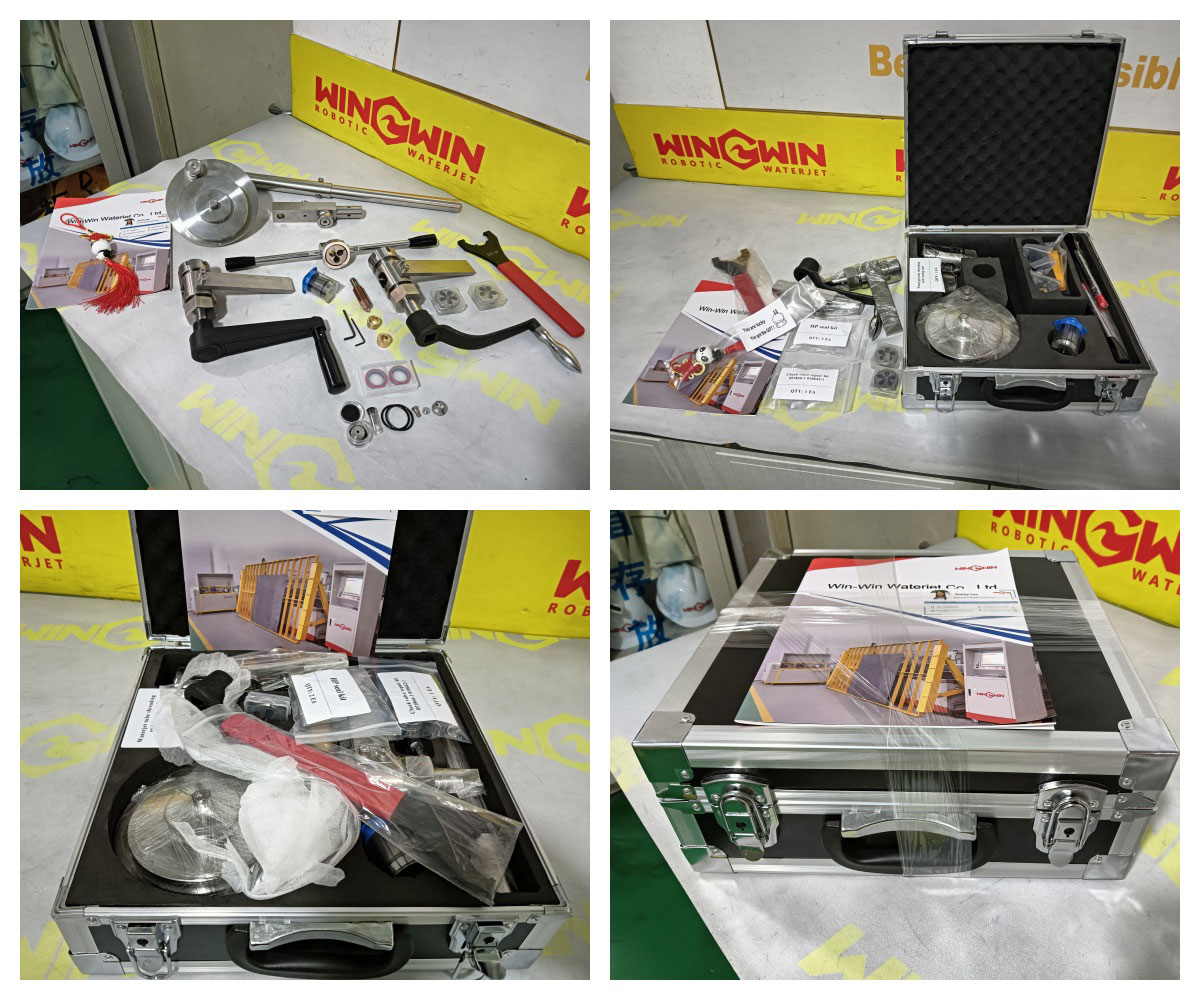

The pacakge of the HP Tube Threading Coning and Bending Tool like the following photos:
