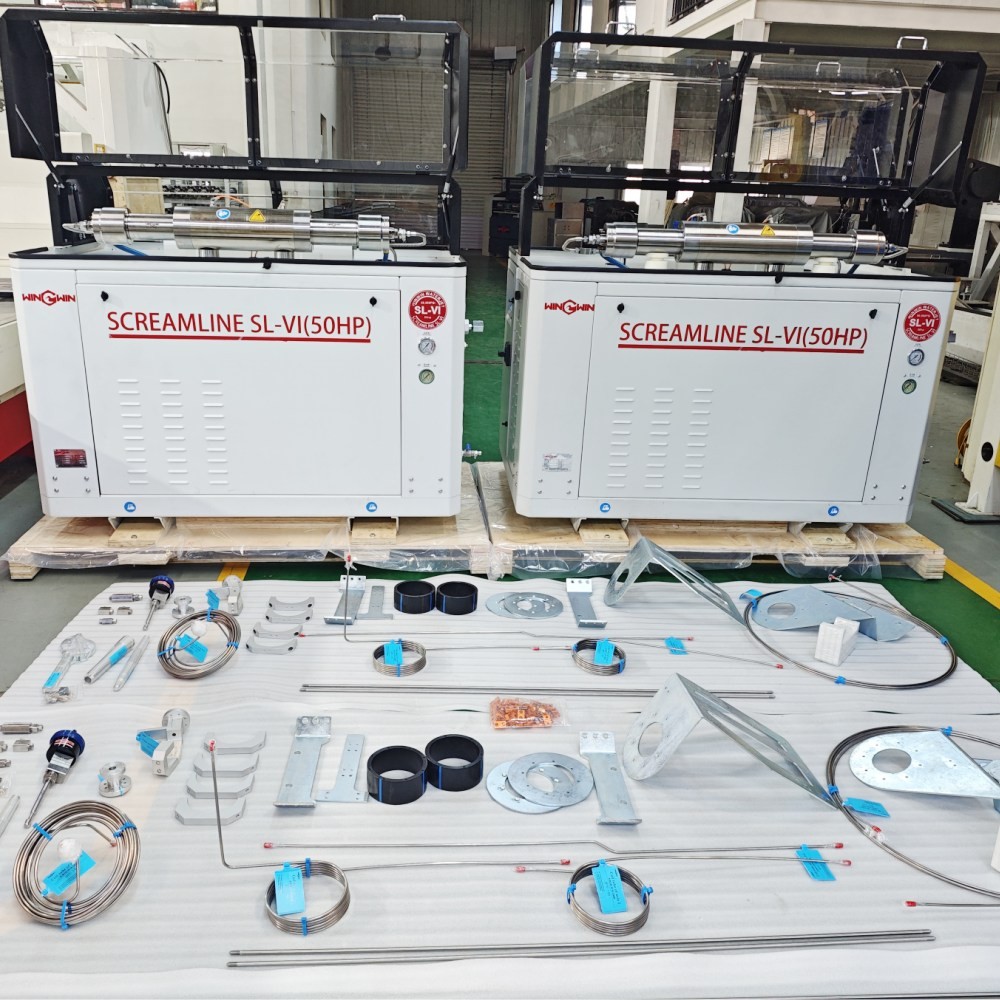

The coil tubes and brackets used for KUKA KR20 R3100-2/KUKA KR20 R3100

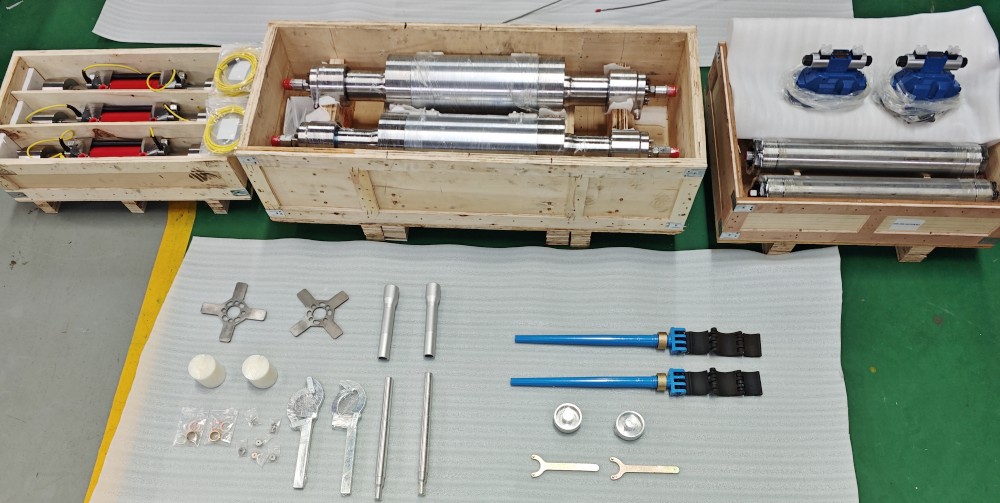

This is all the products in the video purchased by an automation service company from a European country.
It contains 3 major parts:
1. 2 units of SL-VI 50HP high-pressure pump.
2. Water jet cutting high-pressure parts for KUKA robotic waterjet system.
3. 2 units of SL-VI 100HP intensifier assemblies (learn our SL-VI 100HP waterjet pump).
3 units of international general-purpose and popular 60k psi intensifier assemblies (learn our 60k psi waterjet pump).
10 units of 1.4-liter accumulators (to know more our accumulor)
and 2 units of Electrical Shift Valve and Pilot Assembly, etc.

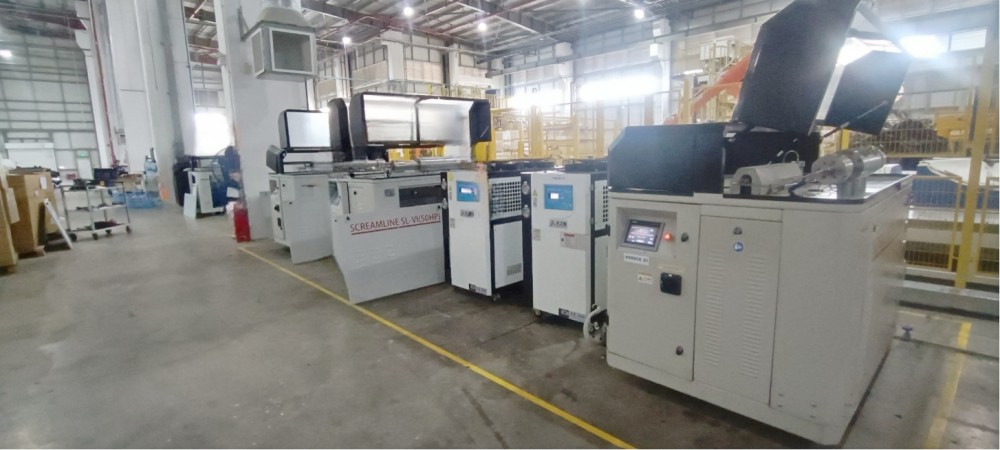

Parts 1 and 2 are combined for the cutting production line of an automotive interior manufacturer. This is the fourth batch of high-pressure pumps and robotic parts they have repurchased from our company in three years. As shown in the figure below, our SL-VI 50HP pumps are placed in their factory.
The 5 intensifier assemblies in Part 3 are purchased by another customer of theirs to replace the old pumps because they need to upgrade the existing waterjet pumps.
Among them, 10 accumulators are for resale by this automation service company. Our accumulators have always been very popular with users. Their structure is one-piece forging, maintenance-free, and we provide at least two years of warranty. If there is any quality problem, they will be directly replaced.
We have maintained a good cooperative relationship for several years. We are sincere and trust each other, and they also trust and rely on our professional technical support.
The following is the list of this batch of goods:
Item | Part NO. | Part Name | QTY |
1 | 10078905 | Connector 3/8 to 3/8 | 7pcs |
2 | 10079614 | Connector 3/8 to 1/4 | 3pcs |
3 | 10078590 | 3/8 tee | 4pcs |
4 | 05112768 | Valve seat | 10pcs |
5 | 3/8 gland | 8pcs | |
6 | 3/8 collar | 8pcs | |
7 | 20470475 | Tool of pneumatic valve repair kit | 2pcs |
9 | 20477460 | Tool of seal cartridge | 2pcs |
10 | 10148674 | Tool of HP seal assembly | 2pcs |
11 | 20484961 | Vee Block Cradle for HP cylinder | 2pcs |
12 | 05066139 | Wrench of HP cylinder | 2pcs |
13 | Water pipe 3/8, L=2500mm | 6pcs | |
14 | Water pipe 3/8, L=1400mm | 2pcs | |
15 | Water pipe 3/8, L=452mm | 2pcs | |
16 | Water pipe 3/8, L=200mm | 2pcs | |
17 | Water pipe 3/8, for connect pump to robot | 4pcs | |
18 | Waterjet cutting head assmebly | 2pcs | |
19 | Coil tube axis 1 bracket | 8pcs | |
20 | Coil tube support | 4pcs | |
21 | Waterjet cutting head support | 2sets | |
22 | Coil tube of axis 1 | 2pcs | |
23 | Coil tube of axis 2 | 5pcs | |
24 | Coil tube of axis 3-4 | 2pcs | |
25 | Coil tube of axis 3 | 2pcs | |
26 | Coil tube of axis 5-6 | 2pcs | |
27 | SL-VI 100HP Intensifier assembly | 2pcs | |
28 | 60K PSI Intensifier assembly | 3pcs | |
29 | Electrical Shift Valve and Pilot Assembly | 2pcs | |
30 | Tools for SL-VI 100HP and 60k psi intensifier assembly | 4sets | |
31 | Consumable parts for SL-VI 100HP Intenssifer assembly | 1set |
Whether you are an end user of water jet equipment, a middleman, a service provider, or want to buy some core components of water jet such as accumulator, intensifier assembly, etc. for assembling high-pressure pump, and high-pressure pipes, cutting head, etc. for assembling water jet cutting machine, you can find us. We can provide all products and technical support.
