Used for: CMS Greenjet Waterjet Cutting Machine
Win-Win waterjet provides the genuine / original parts from CMS apart pump and many replacements for CMS waterjet cutting machine.

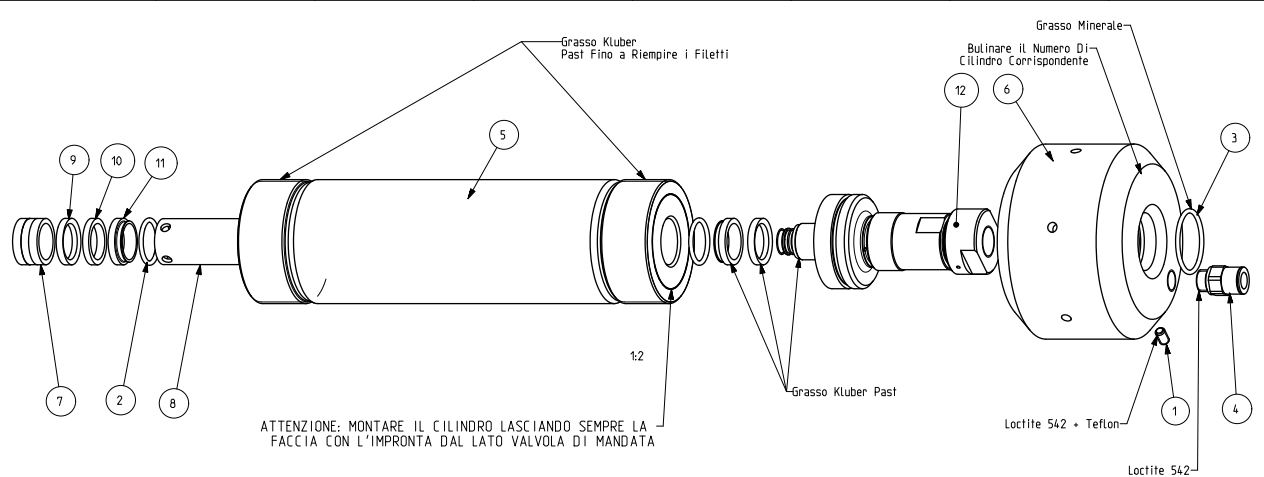

| NO. | Product number | Code | QTY | Description（Italian） | Description（English） |
|---|---|---|---|---|---|
| 12 | DT954 - 00 | 00 | 1 | GRUPPO VALVOLA MAND. ASP. D28 | VALVE GROUP MAND. ASP. D28 |
| 11 | DL012 - 08 | 00 | 2 | GUARNIZ. HP PER OR 22/28 | HP SEAL FOR OR 22/28 |
| 10 | DL011 - 07A | 00 | 1 | REGGISPINTA M 22/28 | PUSH ROD M 22/28 |
| 9 | DL010 - 07A | 00 | 2 | REGGISPINTA F 22/28 | PUSH ROD F 22/28 |
| 8 | DB175 - 03 | 01 | 1 | CILINDRO DISTANZIALE POMPA | PUMP SPACER CYLINDER |
| 7 | DB074 - 04 | 00 | 1 | BRONZINA CILINDRO | CYLINDER BUSHING |
| 6 | D1971AA - 00 | 02 | 1 | FLANGIA CHIUSURA CILINDRO EV01 | CYLINDER CLOSURE FLANGE EV01 |

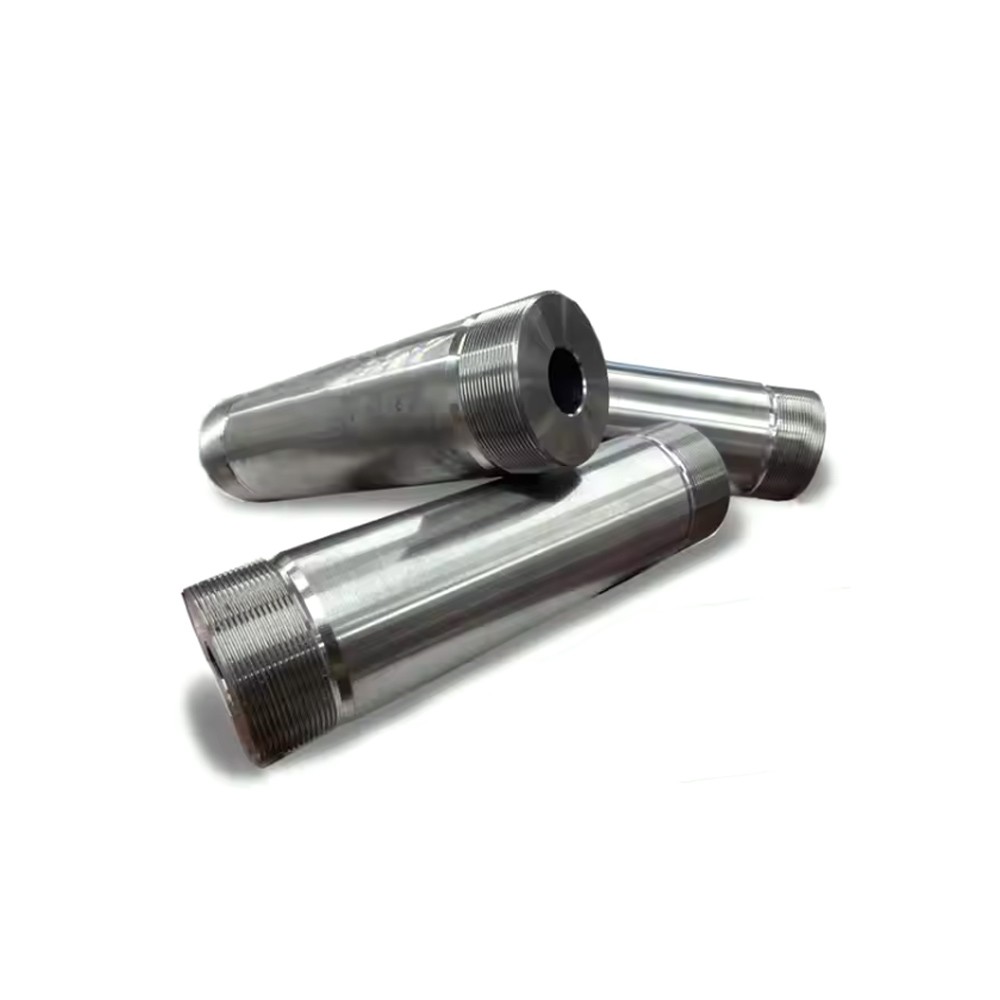

| 5 | D1968AA - 00 | 03 | 1 | CILINDRO POMPA EV01 | PUMP CYLINDER EV01 |
| 4 | CM232 - 00A | 00 | 1 | RACC. DIRITTO TUBO 10 1/4" | STRAIGHT FITTING TUBE 10 1/4" |
| 3 | CL117 - 06 | 00 | 1 | GUARNIZIONE OR 3137 34.60X2.62 | ORING SEAL 3137 34.60X2.62 |
| 2 | CL104 - 06 | 00 | 2 | GUARNIZIONE OR | ORING SEAL |
| 1 | CK608 - 04 | 00 | 1 | GRANO M6x10 INOX UNI 5923 | SCREW M6x10 STAINLESS STEEL UNI 5923 |

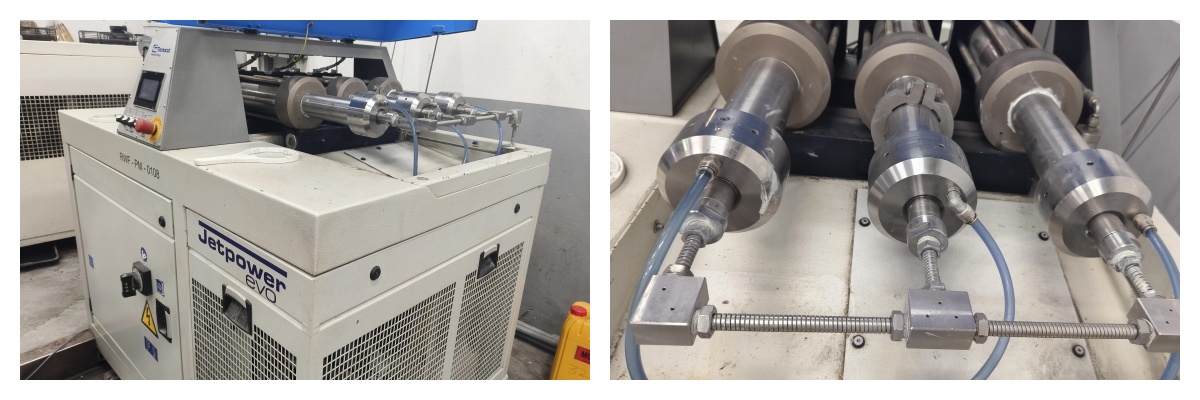

We provide the spare parts for CMS pump GREENJET EVO and JETPOWER EVO RWF-PM-0108.
If you wanna to know more CMS waterjet spare parts, click here please.
If you are interested in any waterjet products, contact me please.
