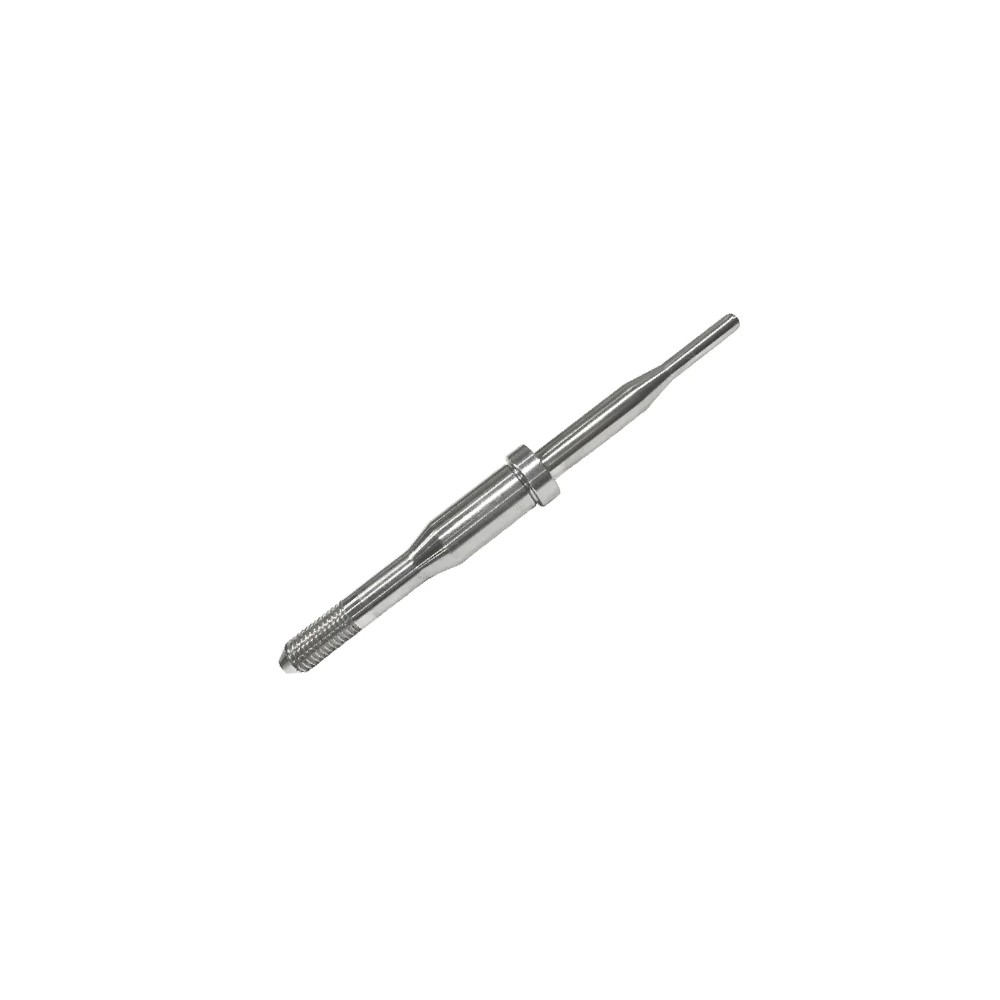

CJ501288 Spindle, HP Swivel Joint, .25", Straight, M/F, SST, 60K Used in CJ201288 .25" Male to Female, 90 Degree, HP Swivel Joint Assembly and CJ211388 .25" Male to Female, Straight, HP Swivel Joint Assembly.
CJ501288 Spindle, HP Swivel Joint, .25", Straight, M/F, SST, 60K
Item | Number | Name |
1 | 10138444 | diam 3/8" nozzle tyube 8" |
2 | 10178697 | valve seat |
3 | 10189181 | valve body |
4 | 10178978 | seal assembly |
5 | 49894207 | stem |
6 | 05114137 | nozzle filter complete |
7 | 05110531 | filter element 1/4" |
8 | 05114152 | seat 1/4" |
9 | 91959635 | body swivel joint |
10 | 91959650 | seal assembly swivel joint |
11 | 10094647 | thrust washers |
12 | 10084713 | thrust bearing |
13 | 301039 | Hp coil 1/4" axle 4 low |
14 | 301312 | Hp coil 1/4" axle 2 |
15 | 10079051 | coupling hp 90 1/4" |
16 | 49864473 | coupling hp,90, 3/8" |
17 | 10079481 | coupling hp وtee, 1/4" |
18 | 10078590 | coupling hp وtee, 3/8" |
19 | 05007786 | flange , seal hyd |
20 | 05144662 | valve poppet lp water |
21 | 05112768 | seat , seal head 17mm |
22 | 05116561 | seat seal head poppet |
23 | 80146 | threading die 1/4-28 |
24 | 80147 | threading die 3/8 -24 |
25 | 80148 | threading die 9/ 16-18 |
26 | 05108808 | coning blade 1/4" hand |
27 | 05108824 | coning blade 3/8" hand |
28 | 05108816 | coning blade9/ 16" hand |
29 | Orifice 0.17mm |
All the parts in the list above were sourced from one customer and are shown in the video below:
