Used for: CMS Greenjet Waterjet Cutting Machine
Win-Win waterjet provides the genuine / original parts from CMS apart pump and many replacements for CMS waterjet cutting machine.

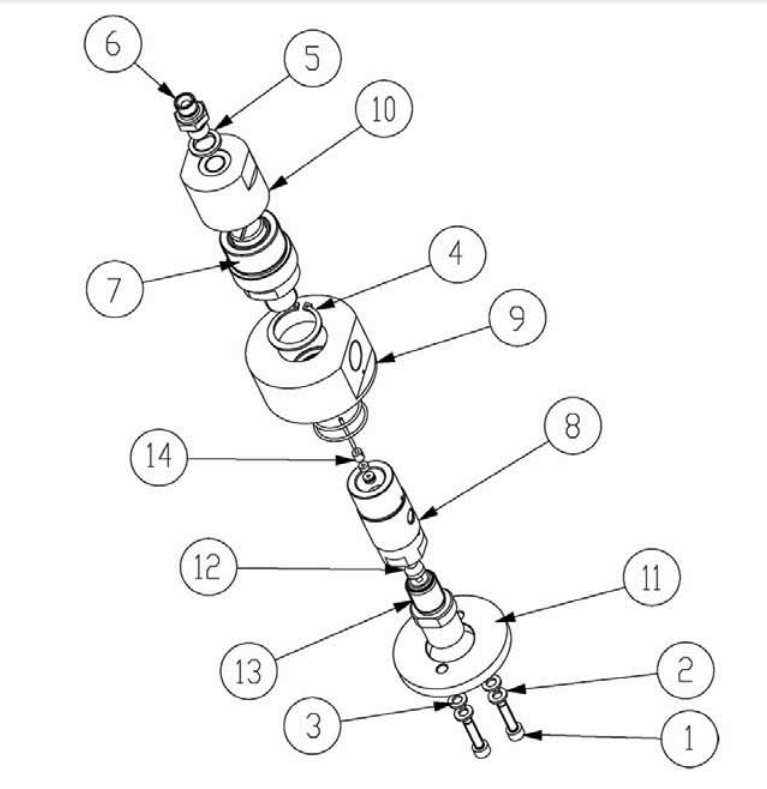

| No. | Product Number | Description |
| - | T952.00 | VALVOLA DI SICUREZZA |
| SAFETY VALVE | ||
| 1 | C0166AA - 00 | VITE TCEI M6x25 ACCIAIO INOSSIDABILE |
| SCREW M6x25 (STAINLESS STEEL) | ||
| 2 | C0268AA - 00 | ROSETTA GROWER ACCIAIO INOSSIDABILE |
| WASHER (STAINLESS STEEL) | ||
| 3 | C0273AA - 00 | ROSETTA PIANA ACCIAIO INOSSIDABILE |
| WASHER (STAINLESS STEEL) | ||
| 4 | K310.32 | ANELLO ELASTICO 30 ACCIAIO INOSSIDABILE |
| SNAP RING 30 (STAINLESS STEEL) | ||
| 5 | M601.02 | RONDELLA BONDED DA 1/4" |
| WASHER 1/4" | ||
| 6 | M615.62 | NIPPLO CIL SVA 1/4" GAS |
| NIPPLE 1/4" GAS | ||
| 7 | D0442AA - 00 | ASSIEME CORPO VALVOLA DI SICUREZZA |
| SAFETY VALVE BODY ASSEMBLY | ||
| 8 | B365.03A | CORPO SPILLO |
| NEEDLE BODY | ||
| 9 | D0444AA - 00 | ASSIEME SUPPORTO VALVOLA DI SICUREZZA |
| SAFETY VALVE SUPPORT ASSEMBLY | ||
| 10 | B048.03 | TAPPO VALVOLA SICUREZZA |
| SAFETY VALVE PLUG | ||
| 11 | B106.32 | STAFFA INF. VALV. SICUREZZA |
| SAFETY VALVE INFERIOR SUPPORT | ||
| 12 | T980.00 | KIT SPILLO TESTA 3AX |
| NEEDLE KIT (3AX CUTTING HEAD) | ||
| 13 | B370.03C | TAPPO SEDE SPILLO – 3/8" |
| NEEDLE SEAT PLUG 3/8" | ||

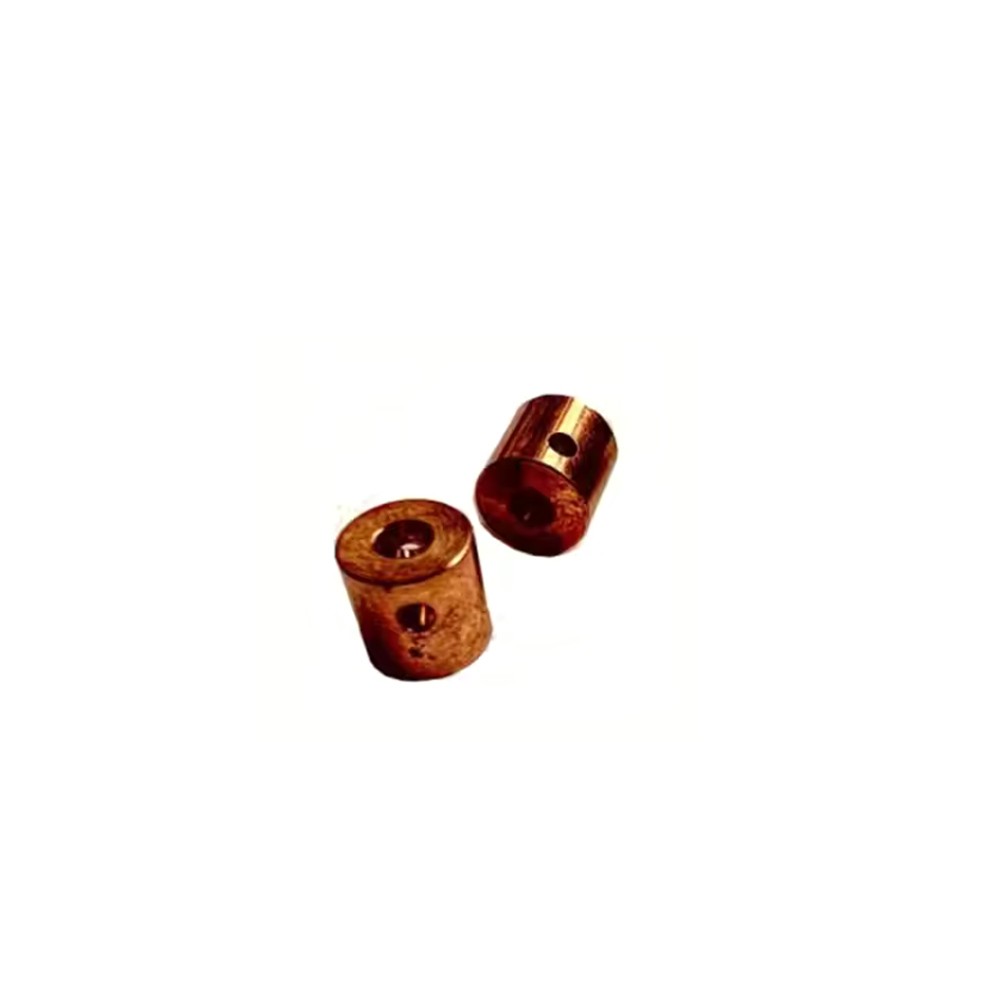

| 14 | B367.04A | BRONZINA SPILLO |
| NEEDLE BUSHING |
We provide the spare parts for CMS pump GREENJET EVO and JETPOWER EVO RWF-PM-0108.
If you wanna to know more CMS waterjet spare parts, click here please.
If you are interested in any waterjet products, contact me please.
