For STREAMLINE SL-V E50 / SL-IV / NEOLINE WATERJET INTENSIFIER PUMP

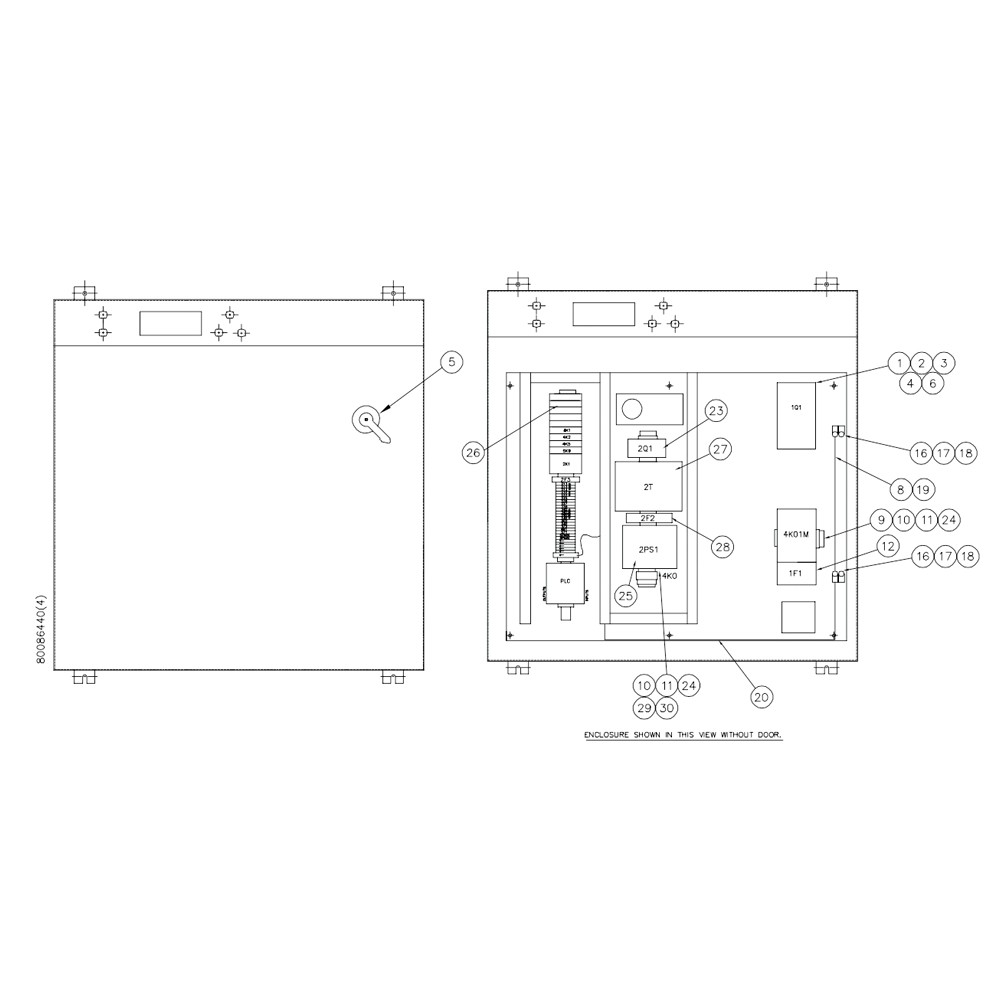

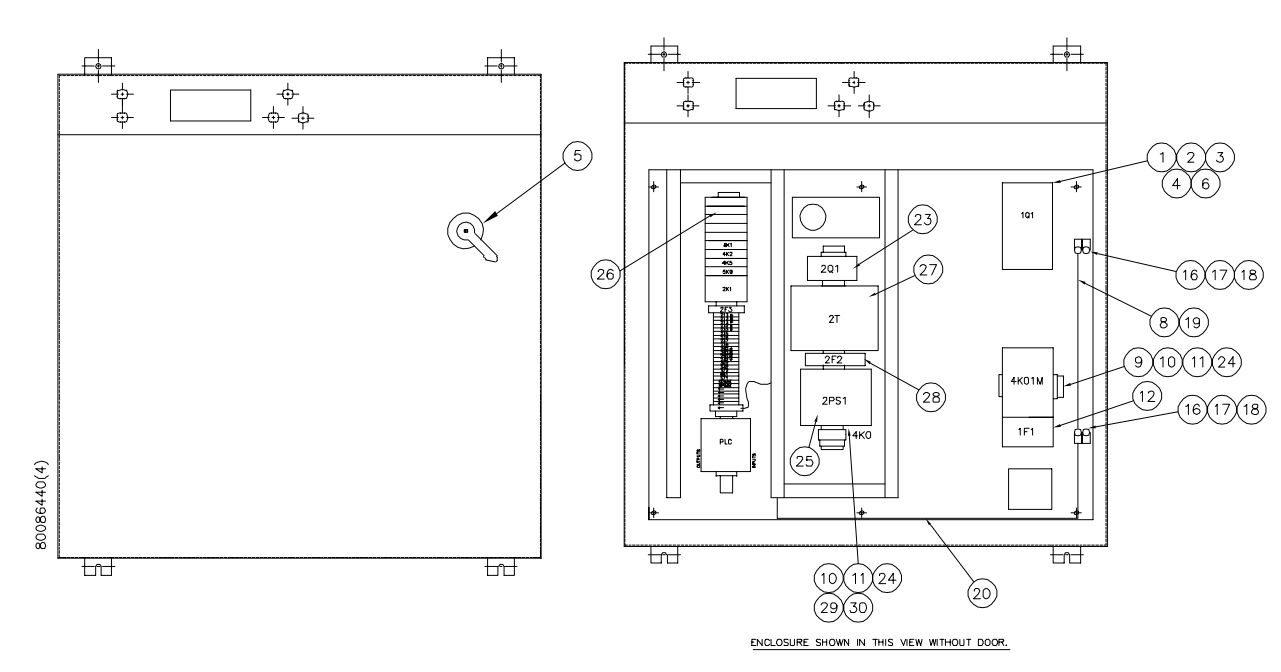

Spare Parts List of Control Panel Configuration Across-the-Line 80086440
| Item | Part Number | Description |
| 1 | 80077985 | Circuit Breaker, 80A |
| 2 | 05081955 | Socket Head Screw, 8-32 x 2 |
| 3 | 80077993 | Extension Shaf |
| 4 | 80078009 | Operator Handle |
| 5 | 80078090 | Operator Handle |
| 6 | 80078017 | Terminal Cover |
| 7 | 10105674 | Wire, #4, Black |
| 8 | 05149778 | Crimp Pin Connector, #4 |
| 9 | 49836877 | Contactor, Non-Reversing, 72A |
| 10 | 10157667 | Pan Head Screw, 10-32 x 3/4 |
| 11 | 10103034 | DIN Mounting Rail |
| 12 | 05111448 | Overload Relay |
| 13 | 10185395 | Connector, Crimp Ferrule, #16 |
| 14 | 10176410 | Wire, #16, Blue |
| 15 | 10170165 | Wire, #16/1 MM 2, Green/Yellow |
| 16 | 95830766 | Lock Washer, .31 |
| 17 | 05095609 | Ground Lug, -#6-#350 |
| 18 | 95423620 | Hex Head Screw, 5/16-18 x 3/4 |
| 19 | 05106398 | Wire, #3, Green/Yellow |
| 20 | 10170157 | Wire, #10/4 MM 2, Green/Yellow |
| 21 | 05019898 | Wire, #14, Black |
| 22 | 05019617 | Connector, Crimp Ferrule, #14/2.5 MM |
| 23 | 05140686 | Circuit Breaker, 600V |
| 24 | 05032362 | End Anchor |
| 25 | 05140876 | Power Supply, 24V DC |
| 26 | / | Controls Subassembly |
| 27 | 49836562 | Control Transformer, 200V AC |
| 28 | 80074131 | Circuit Breaker, 2A |
| 29 | 20418179 | Relay Base |
| 30 | 20418187 | Relay, Tube Base |
| 31 | 10181550 | Wire, #16, Red |
