Product

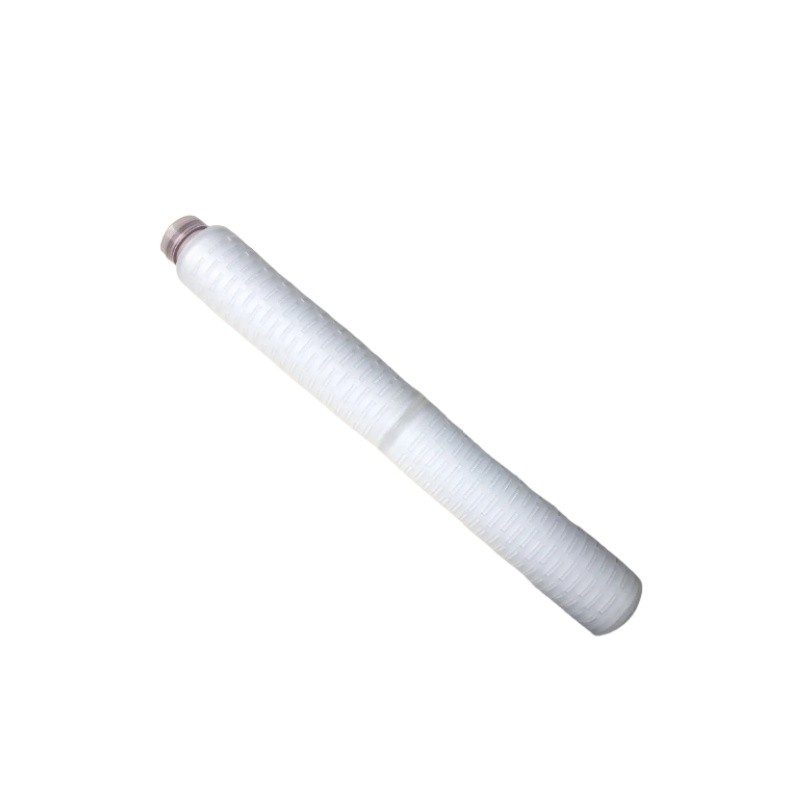

72125264 Element, Low Pressure Water Filter

Product number: 72125264
Product name: Element, Low Pressure Water Filter, 20.00 Inch, 60K, 90K,  WATERJET PART

Product Description:

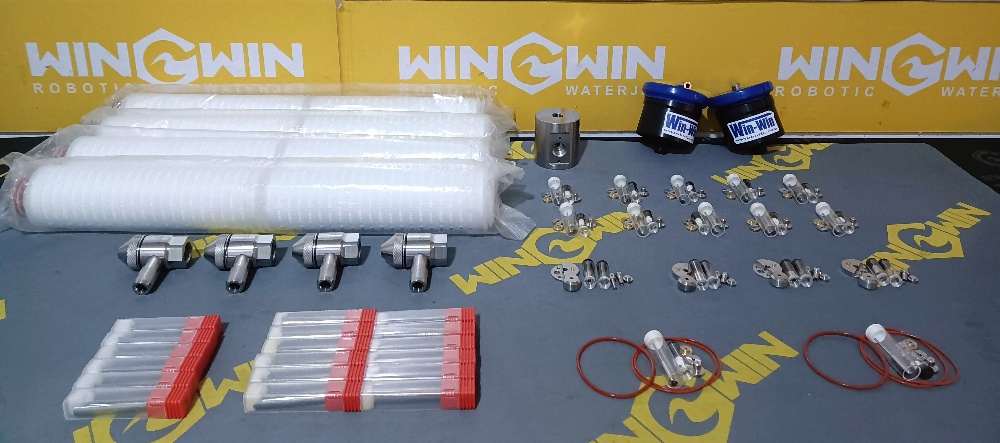

kmt waterjet spare parts.jpg

Water Filter Element, WTR, 10 micron 20LG, 72125264

FLTR ELEM-LP WTR,1072125264

For Use On K-M-T PRO III and SL-VI 15hp - 60hp, SL-VI 75hp - 200hp waterjet pumps.

We know that the water jet cutting machine uses a high-pressure pump to pressurize ordinary tap water to form strong high-pressure water, so as to cut different materials. If you want to cut more efficiently, you can also cut various materials by mixing abrasives, such as garnet. Therefore, it is also very important to control the water quality. So how is the water in the water jet cutting machine purified?

It can be equipped with multiple purifications, as shown below:

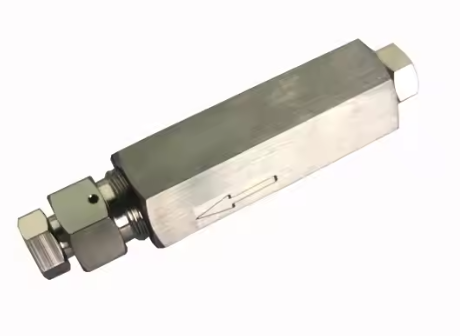

1. A metal filter can be installed near the cutting head, as shown in the figure below;

This is a one-way valve, which also comes with a filter, and the small filter element can be replaced regularly.

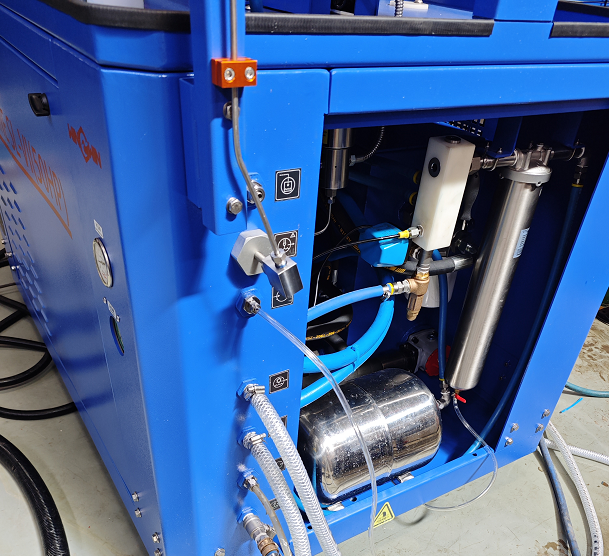

2. Double filters are usually installed in high-pressure pumps, usually PP cotton or other materials.

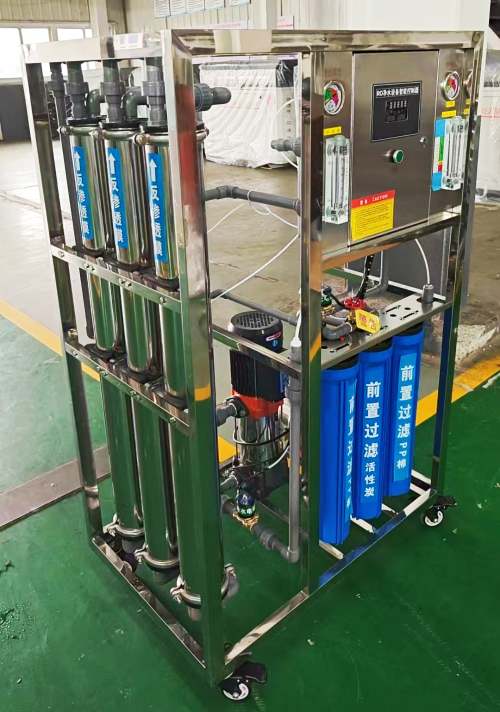

3. The above two are some coarse filtration. If fine filtration is required, we also need to add a water purification and softening system to the equipment, as shown in the figure below.

waterjet softening filtraction system.jpg

The above three devices can ensure that the water quality of the machine can reach the level of direct drinking, so as to ensure the long-term stable operation of the machine and increase the life of parts.

We provide allwaterjet products for the robot waterjet and abrasive waterjet machine, if you need any spare parts or machines, leave us a message and we will get back to you with the price list!
