Vacuum Assist Assembly for DWJ Cutting Heads: Improve Abrasive Flow and Piercing Performance

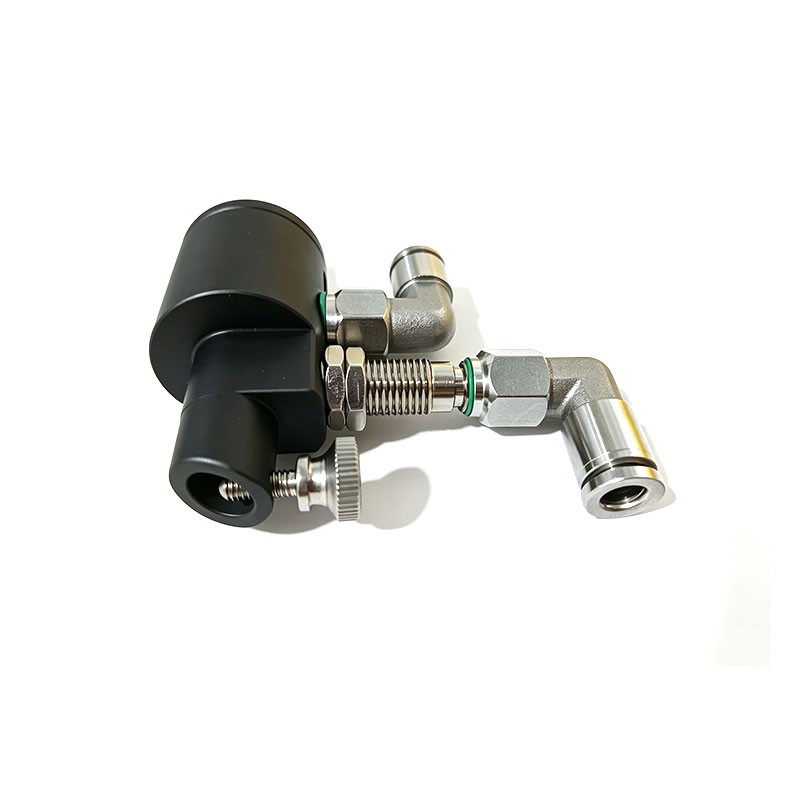

The Vacuum Assist Assembly is an important component for compatible Dynamic Waterjet systems equipped with a DWJ cutting head. It is designed to improve abrasive-feed performance during piercing and low-pressure cutting operations by helping generate a controlled vacuum within the cutting head. With a more stable vacuum effect, the system can achieve more consistent garnet entrainment and reliable abrasive delivery.

For waterjet cutting applications, stable abrasive flow is essential for maintaining cutting quality. When garnet delivery becomes unstable, operators may experience poor piercing, inconsistent cutting speeds, clogging, or interruptions during production. A properly maintained vacuum assist assembly can help reduce these problems and support more reliable operation of the entire waterjet cutting head.

How Does a Vacuum Assist Assembly Work?

During abrasive waterjet cutting, high-pressure water passes through the orifice to create an extremely fast waterjet stream. This high-speed jet generates a vacuum effect around the mixing chamber inlet, allowing abrasive garnet to be drawn into the cutting head and mixed with the water stream.

The Vacuum Assist Assembly supports this process by helping maintain the required vacuum conditions around the abrasive inlet. This is particularly useful during piercing and lower-pressure cutting conditions, when abrasive entrainment may be less stable.

When the vacuum assist system is working correctly, garnet can enter the mixing chamber more consistently. This helps the DWJ cutting head produce a stable abrasive jet and contributes to more predictable cutting and piercing performance.

Benefits of a DWJ Vacuum Assist Assembly

A high-quality vacuum assist assembly can provide several important benefits:

1. More Consistent Abrasive Feed
The assembly helps maintain stable garnet suction and abrasive delivery, reducing fluctuations that can affect cutting performance.

2. Improved Piercing Performance
Reliable abrasive entrainment is especially important during piercing. A stable abrasive flow can help create cleaner and more dependable pierce starts.

3. Reduced Risk of Clogging
Abrasive-feed problems can cause blockages inside the cutting head. Maintaining the vacuum assist components can help reduce interruptions caused by unstable abrasive delivery.

4. Better Cutting Consistency
Stable garnet flow allows the waterjet cutting head to maintain more consistent cutting conditions, helping operators achieve repeatable results.

5. Reduced Downtime
Regular inspection and replacement of worn vacuum assist components can help prevent unexpected abrasive-feed failures and unnecessary production interruptions.

Related DWJ Waterjet Cutting Head Parts

The performance of a vacuum assist system depends on the condition of several components within the cutting-head assembly. Commonly related parts include:

• Vacuum Assist Carbide Liner – 714251-2: Protects the vacuum assist body from abrasive wear. The liner should be inspected during routine maintenance and replaced when excessive wear is present.

• Vacuum Assist Kit – 043950-X: Provides vacuum assist configurations for compatible CWJ, DWJ, DWJ-XD, and Mach 2b cutting-head systems.

• 60K DWJ Cutting Head Assembly – 712262-1: A compatible cutting-head assembly used with DWJ abrasive delivery components.

• 87K DWJ Mixing Chamber Assembly – 020694-1: Helps facilitate abrasive entrainment and maintain effective jet performance downstream of the orifice.

• DWJ Spray Shield Yellow – 711621-1: Helps protect the cutting-head and mixing-tube area from water splashback and abrasive spray.

When Should You Inspect the Vacuum Assist System?

If abrasive flow becomes inconsistent, inspection should not be limited to the vacuum assist component alone. The complete DWJ cutting head stack should be checked, including the vacuum assist liner, seals, mixing chamber inlet, orifice, and mixing tube.

Excessive wear in the carbide liner, damaged seals, contamination around the abrasive inlet, or wear of the mixing tube can all affect vacuum performance and abrasive entrainment. These conditions may lead to unstable garnet flow, poor piercing quality, clogging, or reduced cutting efficiency.

For this reason, routine maintenance of the waterjet cutting head is essential for maintaining stable machine performance. Replacing worn components before they cause major abrasive-feed problems can also help reduce unplanned downtime.

Reliable Waterjet Cutting Head Components

The Vacuum Assist Assembly plays an important role in abrasive delivery for compatible DWJ systems. When combined with properly maintained mixing chambers, orifices, carbide liners, seals, and mixing tubes, it can help provide stable abrasive flow and dependable cutting performance.

For waterjet operators, fabricators, and maintenance teams, selecting compatible DWJ cutting head parts and inspecting wear components regularly are key steps toward maintaining cutting accuracy, piercing reliability, and overall equipment efficiency.

We also supply a wide range of waterjet cutting head assemblies and replacement parts, including vacuum assist components, mixing chambers, carbide liners, orifices, mixing tubes, seals, and other abrasive delivery components. A large selection of waterjet spare parts is available from stock to support routine maintenance and urgent replacement requirements.
