Waterjet Direct Drive Pump Parts
If you are interested in any waterjet products or need any waterjet technical support, CONTACT US please.

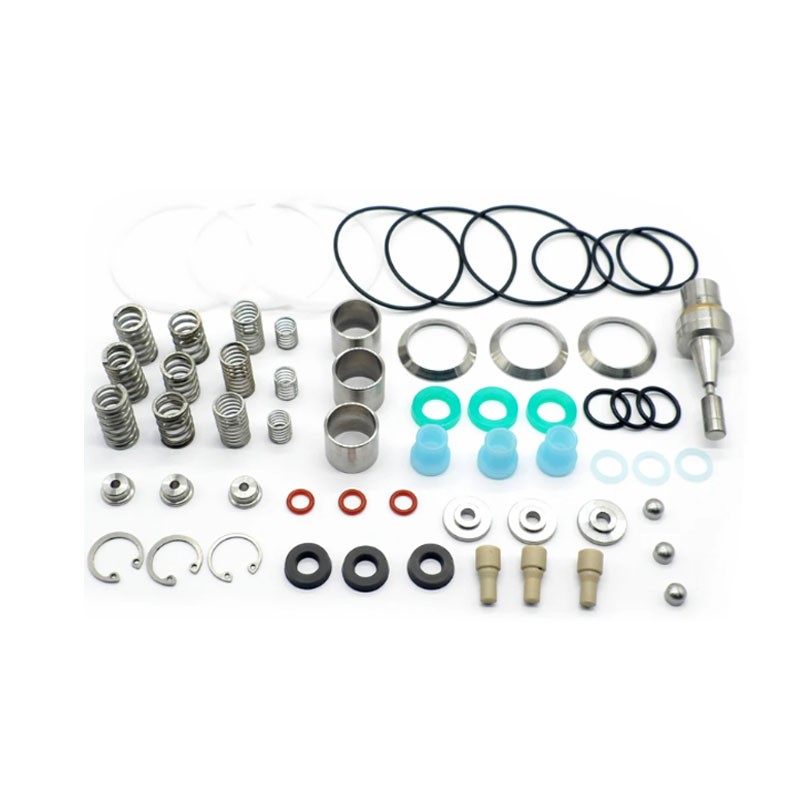

| P/N | Description | Qty | P/N | Description | Qty |
| 011051-1 | Dynamic seal | 3 | A-0275-025 | O-ring | 3 |
| A-00621-33 | Rod seal | 3 | A-1903 | 320 grit paper | 1 |
| 011042-1 | Inlet poppet | 3 | A-4689 | Food-grade grease | 1 |
| 011040-1 | Outlet poppet guide | 3 | SB-0168 | Minor Maintenance SB | 1 |
| 011039-1 | Outlet poppet | 3 | A-9223 | Compression spring | 3 |
| 011041-1 | Outlet poppet seat | 3 | A-12219 | Spring | 3 |
| 013032-1 | PCV poppet | 1 | 011350-1 | Filler tube sleeve | 3 |
| 013031-1 | PCV seat | 1 | A-20386-1 | Anti-seize lubricant | 2 |
| 006765-1 | Static manifold seal | 1 | 012306-DWG | HP assembly drawing | 1 |
| A-0275-033 | O-ring | 3 |
Contact us to get the price list of direct drive pump parts !
