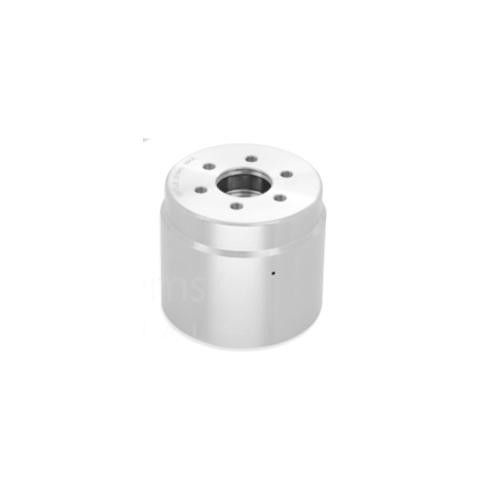

49838212 HP Cylinder Nut, HSEC

For STREAMLINE SL-V E50 WATERJET INTENSIFIER PUMP

Product Description:

Main Parts List of K-M-T STREAMLINE SL-V E50

Item	Description	Part Number
1	Intensifier assembly	20434793
2	Hydraulic cartridge seal	80086622
3	Sealing head assembly	20417833
4	Pneumatic valve/actuator assembly	20427739
5	Hydraulic piston assembly	05132253
6	High pressure water assembly	20434827
7	Low pressure water filter, optional	80087976
8	Hydraulic power package, standard	20435264
9	Hydraulic power package, optional	20434785
10	Motor/pump assembly	80087935
11	Hydraulic manifold assembly	05071766
12	Hydraulic hose connections	80087844
13	Reservoir assembly	80087802
14	Bulkhead pipe assembly, standard	80089253
15	Bulkhead pipe assembly, optional	20416050
16	Ekectrical assembly	80087257
17	Controls subassembly	80086457
18	Control panel configuration	80086440
19	Control panel configuration	20419615

The Parts List for Intensifier Assembly 20434793

Item	Part Number	Description
