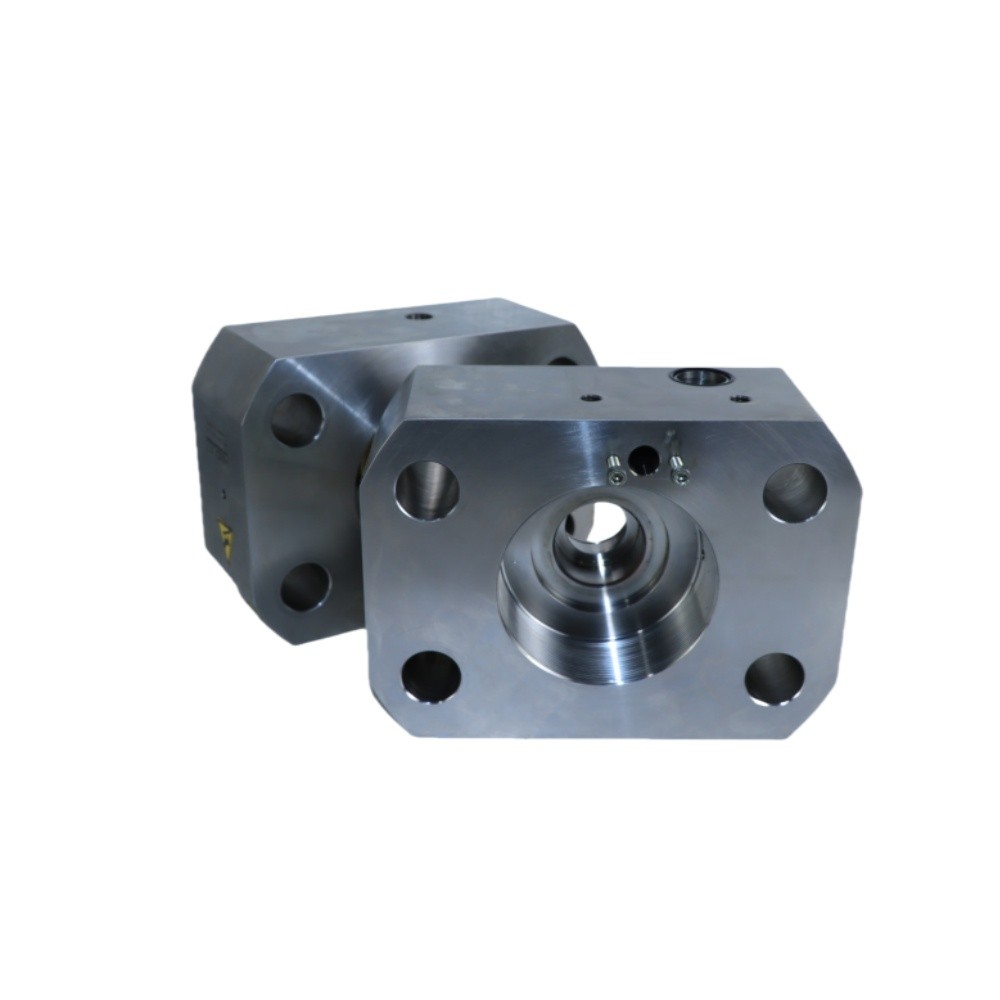

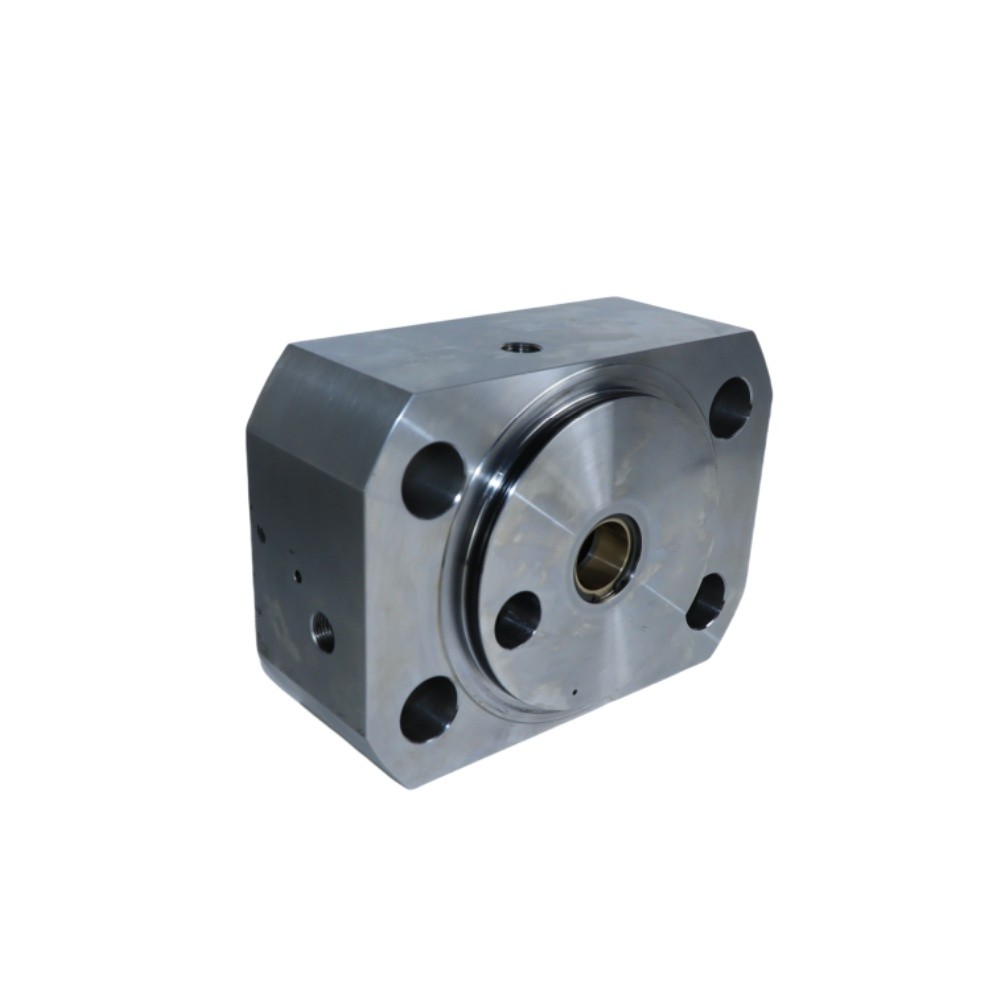

301001-3-L End Bell 60K Left

301001-3-L End Bell 60K Left
For larger intensifier, it puts out 1.5gpm from a single intensifier

Product Description:

H2O 1.5 GPM 60k Long Block Intensifier.jpg

1.5 GPM 60k Long Block Intensifier, 60k Electric Shift, Hi-Load & Manifold, 301020-12-3-HL

1.5 GPM 60k  Intensifier Parts Legend

A - High Pressure Cylinder 1.5 GPM 100001-3

B - Hydraulic Cylinder 94K/1.5GPM 190008-2

C - Tie Rod 100017-2 D - End Bell 60K Left 301001-3-L

D - End Bell 60K Right 301001-3-R

E - Check Valve Assy. 60K 301002-5

F - End Cap Assy. 301004-2

G - Hex Nut 3/4-16 400004-2

H - Electric Pilot Shift & Main Valve 301018-2

Parts (Not Shown) :

Electric Shift Sensor Assy. 1.5 GPM 301011-4

Hi-Load Piston & Plunger Assy. 1.5 GPM 301005-5



We provide all waterjet products for the robot waterjet and abrasive waterjet machine, if you need any spare parts, leave us a message and we will get back to you with the price list!
