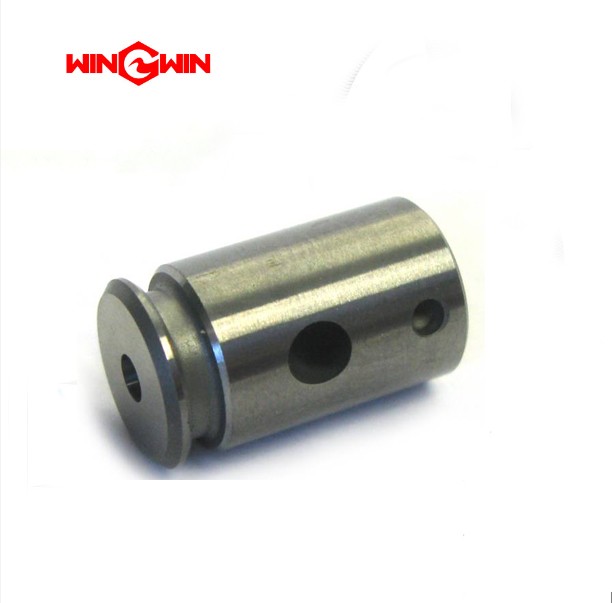

20453082 WEAR INSERT, AUTOLINE II waterjet part

Product Item:20453082
WEAR INSERT, AUTOLINE® II, 60K, WATERJET PART 20453064
Wear Insert, AUTOLINE® II, 60K/60,000PSI. GENUINE PART 20453064
Pump Type Compatibility
NeoLine SL-IV 100hp Dual Topworks SL-IV 15hp - 60hp SL-IV 75hp - 200hp
SL-IV Plus 100hp Dual Topworks SL-IV Plus 15hp - 60hp SL-IV Plus
75hp - 200hp SL-V 100hp Dual Topworks SL-V 15hp - 60hp SL-V 75hp - 200hp
 SL-VI 15hp - 60hp SL-VI 75hp - 200hp TriLine
Rated Pressure Compatibility
60 000 psi

Product Description:

waterjet cutting head parts 20453082 WEAR INSERT, AUTOLINE II waterjet part



20453949Autoline IITM Nozzle Assembly, .030 Wear Insert Figure
20454108Autoline IITM Nozzle Assembly, .043 Wear Insert
20453952 Nozzle Cap
20453958 Nozzle Body
20453064 Wear Insert, .030 x .156
 20453082 Wear Insert, .043 x .156
20453964 Feed Tube Assembly
20453973 Handle
20433398 Setscrew
20453976 T-Knob
 05138821 O-Ring, .69 x .81 x .06
20445476 O-Ring, .31 x .44 x .06
05087168 Guard
05081518 O-Ring, .38 x .50 x .06
05077078 O-Ring, .38 x .50 x .06
49885361 Poly Tube, .38


1. Which nozzles are used for KMT waterjet cutting head?


The PRO Series features the superior HYPERTUBE Index Design for longer, more uniform  wear preventing “focusing tube blow-out"


0.030 x 3.0 / 0.76 mm x 76 mm 20477366

0.030 x 4.0 / 0.76 mm x 102 mm 20477382

0.033 x 4.0 / 0.84 mm x 102 mm 20490760

0.040 x 3.0 / 1.02 mm x 76 mm 20486133*

0.040 x 4.0 / 1.02 mm x 102 mm 20486166*

0.043 x 3.0 / 1.10 mm x 76 mm 20477386

0.043 x 4.0 / 1.10 mm x 102 mm 20477395

0.045 x 3.0 / 1.14 mm x 76 mm 20486151*

0.045 x 4.0 / 1.14 mm x 102 mm 20486158

0.048 x 4.0 / 1.22 mm x 102 mm 20490768


ROCTEC® 100 waterjet cutting head nozzle


0.021 x 3.13 / 0.53 mm x 79 mm 20451227*

0.025 x 3.13 / 0.63 mm x 79 mm 20452309*

0.030 x 3.13 / 0.76 mm x 79 mm 10126969

0.036 x 3.13 / 0.91 mm x 79 mm 80075252

0.039 x 3.13 / 0.99 mm x 79 mm 49833593*

0.040 x 3.13 / 1.02 mm x 79 mm 49835390

0.043 x 3.13 / 1.10 mm x 79 mm 10126928

0.052 x 3.13 / 1.32 mm x 79 mm 05117528

0.058 x 3.13 / 1.47 mm x 79 mm 05051891*

0.063 x 3.13 / 1.60 mm x 79 mm 10126936

ROCTEC® 500


0.021 x 2.0 / 0.53 mm x 50 mm 05097928

0.030 x 3.13 / 0.76 mm x 79 mm 05097944

0.036 x 3.13 / 0.91 mm x 79 mm 05116652

0.043 x 3.13 / 1.10 mm x 79 mm 05097936

0.093 x 3.13 / 2.36 mm x 79 mm 05130927*


2. Which model orifice suit for KMT waterjet cutting head ?

1. AUTOLINE PRO 6,200 bar Diamond Orifice


0.004" / 0.10 mm 20481704

0.005" / 0.12 mm 20481705

0.006" / 0.15 mm 20481706

0.007" / 0.17 mm 20481707

0.008" / 0.20 mm 20481708

0.009" / 0.23 mm 20481709

0.010" / 0.25 mm 20481710

0.011" / 0.28 mm 20481711*

0.012" / 0.30 mm 20481712

0.013" / 0.33 mm 20481713*

0.014" / 0.35 mm 20481714

0.015" / 0.38 mm 20481715*

0.016" / 0.40 mm 20481716

0.017" / 0.43 mm 20481717*

0.018" / 0.46 mm 20481718*

0.019" / 0.48 mm 20481719*

0.020" / 0.51 mm 20481720*

0.021" / 0.53 mm 20481721*

0.022" / 0.56 mm 20481722*


 2.  AUTOLINE I & II 4,100 bar For True Alignment & Maximum Performance waterjet cutting head Diamond Orifice



0.004" / 0.10 mm 20448625*

0.007" / 0.17 mm 05063847

0.008" / 0.20 mm 05112537

0.009" / 0.23 mm 05084504

0.010" / 0.25 mm 05077029

0.011" / 0.28 mm 05101753

0.012" / 0.30 mm 05077300

0.013" / 0.33 mm 05136098

0.014" / 0.35 mm 05077037

0.015" / 0.38 mm 80075781*

0.016" / 0.40 mm 05121512

0.018" / 0.46 mm 05114905*

0.019" / 0.48 mm 80086663*

0.020" / 0.51 mm 05114897


3. Sapphire Orifice


0.007" / 0.17 mm 05109079*

0.008" / 0.20 mm 05109087*

0.009" / 0.23 mm 05109095*

0.010" / 0.25 mm 05109103*

0.011" / 0.28 mm 05109111*

0.012" / 0.30 mm 05109129*

0.013" / 0.33 mm 20412569*

0.014" / 0.35 mm 05109137*

0.016" / 0.40 mm 20448541*

0.018" / 0.46 mm 05114913*

0.019" / 0.48 mm 80086671*

0.020" / 0.51 mm 05114921



4. Orifices for Pure Water Cutting 4,100 bar Diamond Orifice


0.003" / 0.07 mm 49888852

0.004" / 0.10 mm 49888860

0.005" / 0.12 mm 49888878

0.006" / 0.15 mm 49888886

0.007" / 0.17 mm 49888894

0.008" / 0.20 mm 49888902

0.009" / 0.23 mm 49888910

0.010" / 0.25 mm 49888928

0.012" / 0.30 mm 49888936

0.013" / 0.33 mm 49836786*

0.014" / 0.35 mm 49888944

0.015" / 0.38 mm 49888951

0.016" / 0.40 mm 49888969

0.018" / 0.46 mm 49888977

0.019" / 0.48 mm 20436198*

0.020" / 0.51 mm 49888985

0.022" / 0.56 mm 49888993


5. waterjet cutting head Sapphire Orifice

PREVIOUS:001198-1 60K Intensifier High-Pressure Seal Kit NEXT:05078530 AUTOLN ASSY-.030,.38 HP waterjet parts
