For STREAMLINE SL-V E50 / SL-IV / NEOLINE WATERJET INTENSIFIER PUMP

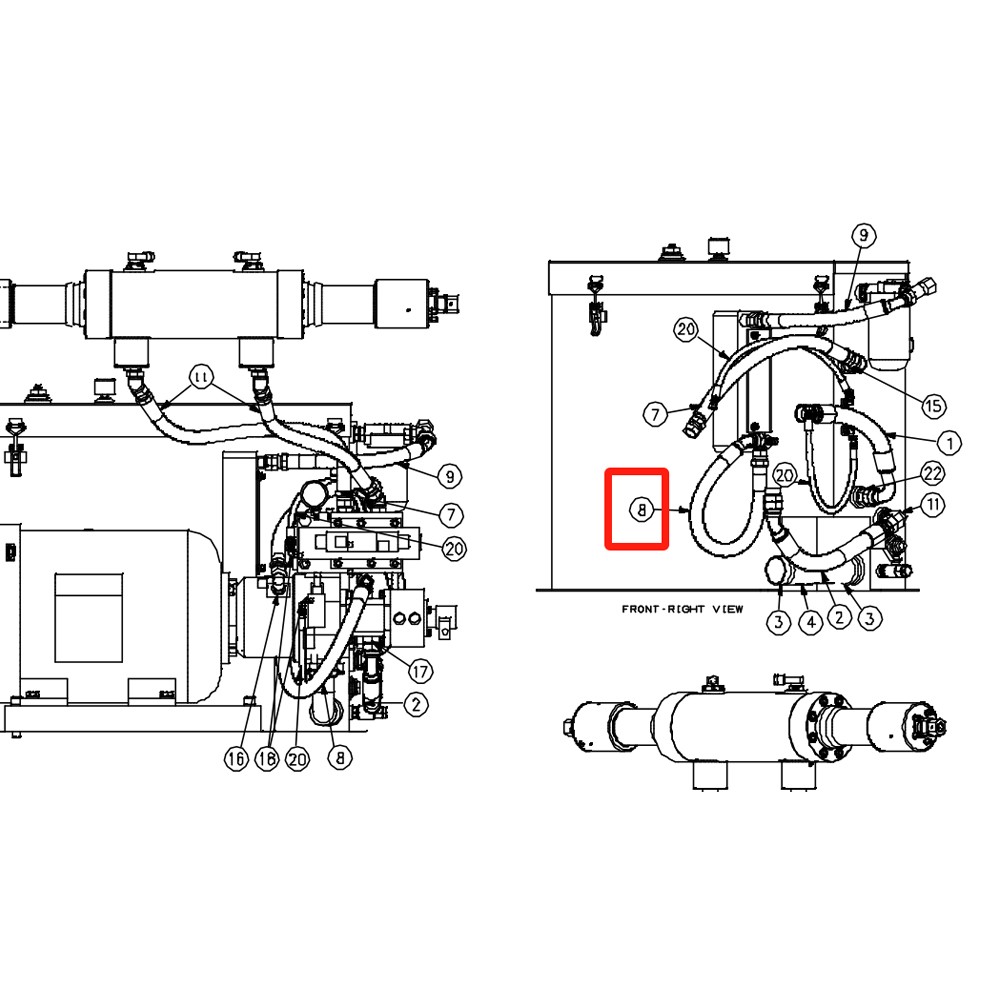

Spare Parts List of Hydraulic Hose Connections 80087844
Item | Part Number | Description |
1 | 20449078 | Hydraulic Hose Assembly, 1.0 X 15.50 |
2 | 20449096 | Hydraulic Hose Assembly, 1.0 X 17.50 |
3 | 10083517 | Hose Clamp |
4 | 10179018 | Radiator Hose, 2.0 |
5 | 05048780 | Split Flange Kit, 2.0 |
6 | 05048806 | Adapter, Hose/Flange, 2.0 X 2.0 |
7 | 20430342 | Hydraulic Hose Assembly, .75 X 21.50 |
8 | 20449070 | Hydraulic Hose Assembly, .75 X 32.50 |
9 | 20449062 | Hydraulic Hose Assembly, .75 X 15.75 |
10 | 20453805 | Hydraulic Hose Assembly, .75 X 29.0 |
11 | 80085970 | Adapter, JIC/ORB, 1.0 x 1.0 |
12 | 05052493 | Adapter, JIC/ORB, .75 X .63 |
13 | 95702619 | Adapter, JIC/ORB, .75 X .75 |
14 | 05064407 | Adapter, JIC/ORB, 1.0 x .75 |
15 | 10091163 | Adapter, JIC/ORB, .75 x .75 |
16 | 05050331 | Adapter, JIC/ORB, .75 x .63 |
17 | 80086192 | Adapter, JIC/ORB, 1.0 x 1.0 |
18 | 10142644 | Adapter, JIC/ORB, .25 x .25 |
19 | 10144749 | Adapter, JIC/ORB, .25 x .25 |
20 | 80085889 | Hydraulic Hose Assembly, .25 x 20.0 |
21 | 05060751 | Hydraulic Hose Assembly, .25 x 32.0 |
22 | 80086192 | Adapter, JIC/ORB, 1.0 x 1.0 |
23 | 05071055 | Plug, ORB, .75 |
24 | 05073168 | Adapter, JIC/ORB, .75 x .75 |
