Hydraulic Power Package, Standard 20435264 For STREAMLINE SL-V E50 / SL-IV / NEOLINE WATERJET INTENSIFIER PUMP

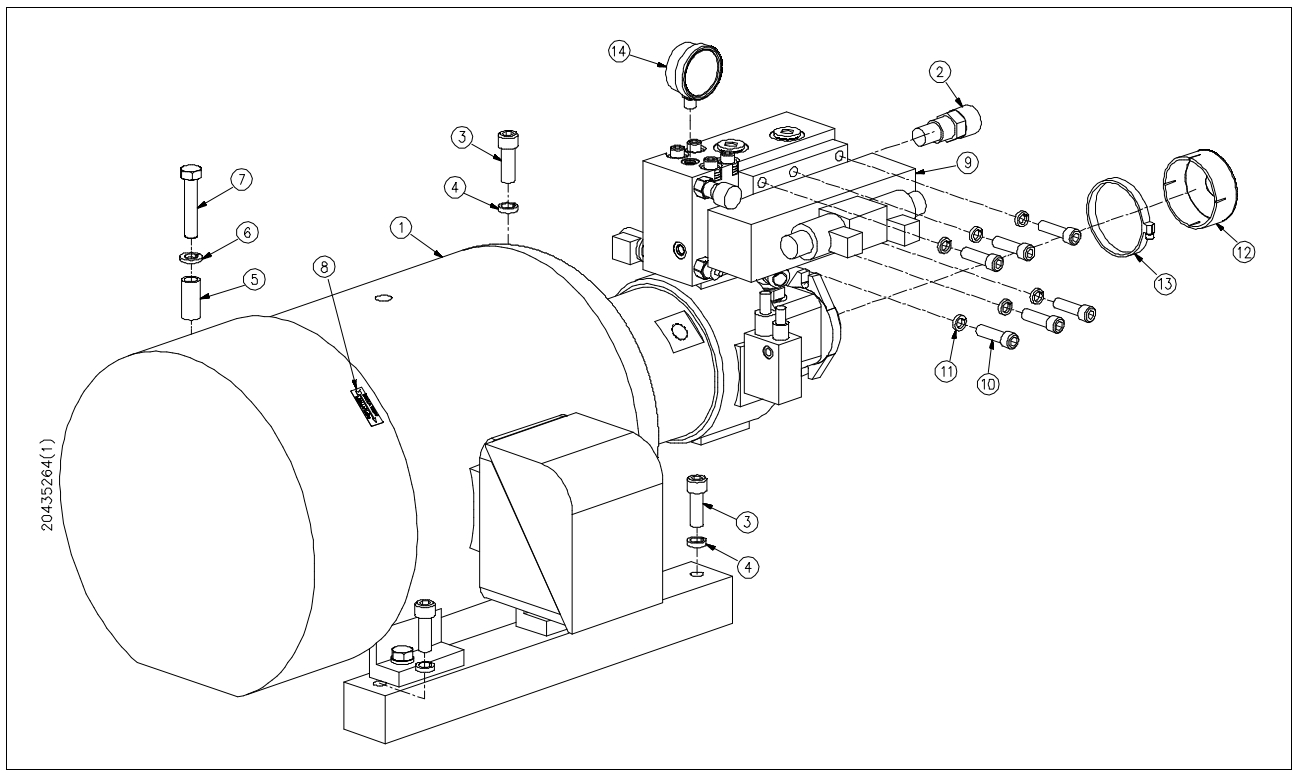

Spare Parts List of Hydraulic Power Package, Standard 20435264
| Item | Part Number | Description |
| 1 | 80087935 | Motor/pump assembly, 50HP |
| 2 | 05071717 | Relief valve 235 bar |
| 3 | 49832959 | Socket head screw 5/8-11x1-3/4 |
| 4 | 49833072 | Lock washer .63 |
| 5 | 80089667 | Spacer standoff |
| 6 | 95688719 | Lock washer .63 |
| 7 | 10066223 | Hex head screw 5/8-11x3 |
| 8 | 10091510 | Arrow decal |

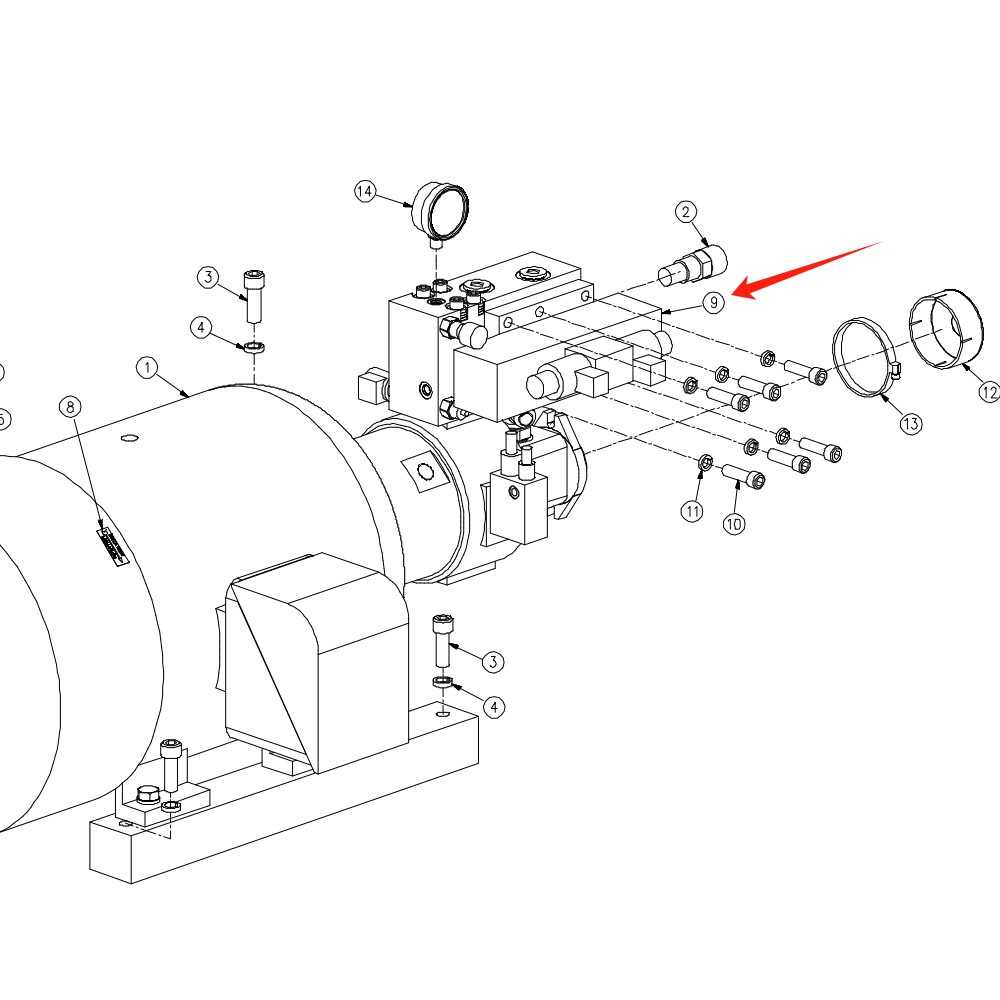

| 9 | 20437164 | Directional control valve assembly, D08 24V DC |
| 10 | 95055059 | Sock head screw 1/2-13x2-1/2 |
| 11 | 95688750 | Lock washer .50 |
| 12 | 05050687 | Cap recirculation pump shaft |
| 13 | 05092697 | Hose clamp |
| 14 | 20432794 | Pressure gauge 0-5000psi |
