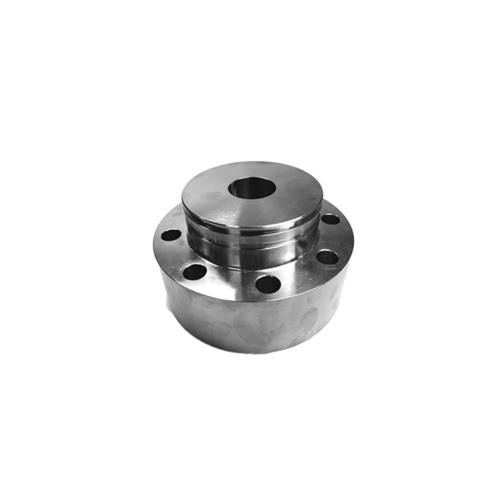

20414880 Hydraulic Cylinder Head

For STREAMLINE SL-V E50V2 WATERJET INTENSIFIER PUMP

Product Description:

Main Parts List of K-M-T STREAMLINE SL-V E50

Item	Description	Part Number
1	Intensifier assembly	20434793
2	Hydraulic cartridge seal	80086622
3	Sealing head assembly	20417833
4	Pneumatic valve/actuator assembly	20427739
5	Hydraulic piston assembly	05132253
6	High pressure water assembly	20434827
7	Low pressure water filter, optional	80087976
8	Hydraulic power package, standard	20435264
9	Hydraulic power package, optional	20434785
10	Motor/pump assembly	80087935
11	Hydraulic manifold assembly	05071766
12	Hydraulic hose connections	80087844
13	Reservoir assembly	80087802
14	Bulkhead pipe assembly, standard	80089253
15	Bulkhead pipe assembly, optional	20416050
16	Ekectrical assembly	80087257
17	Controls subassembly	80086457
18	Control panel configuration	80086440
19	Control panel configuration	20419615

The Parts List for Intensifier Assembly 20434793

Item	Part Number	Description
1	20434777	HP cylinder
2	05039771	Plunger assembly, .875
3	20417833	Sealing head assembly
4	20414880	Hydraulic cylinder head
5	20422243	HP seal assembly
6	05144696	Spacer, sealing head
7	49838212	HP cylinder nut, HSEC
8	80086622	Hydraulic cartridge seal assembly
9	05007786	Bushing retainer flanger
10	20418805	Liner, HP cylinder
11	10074920	O-ring, 1.75x1.94x.09
12	80070352	Jackbolt, 7/16-20x2.31
13	05034798	Retainning ring, 2.75
14	05034764	Hydraulic cylinder
15	10075000	O-ring 3.75x4.0x.13
16	05034855	Backup ring, 3.75x4.0
17	05141106	Socket head screw, M14x60
18	05127584	Proximity switch, 20-250V AC/DC
19	10183572	Socket head screw, M6x1.0x22mm
20	05132253	Piston assembly
21	20427804	Intensifier topworks support, 3.0x3.0
22	20427994	Socket head screw, M10x1.5x65mm
23	05061486	Lock washer M10
24	10074409	O-ring, 1.0x1.25x.13
25	05144183	Spacer, proximity switch
26	05081872	Gasket, upper drip pan/stem
