Hydraulic Manifold Assembly 05071766 Parts For STREAMLINE SL-V E50 / SL-IV / NEOLINE WATERJET INTENSIFIER PUMP

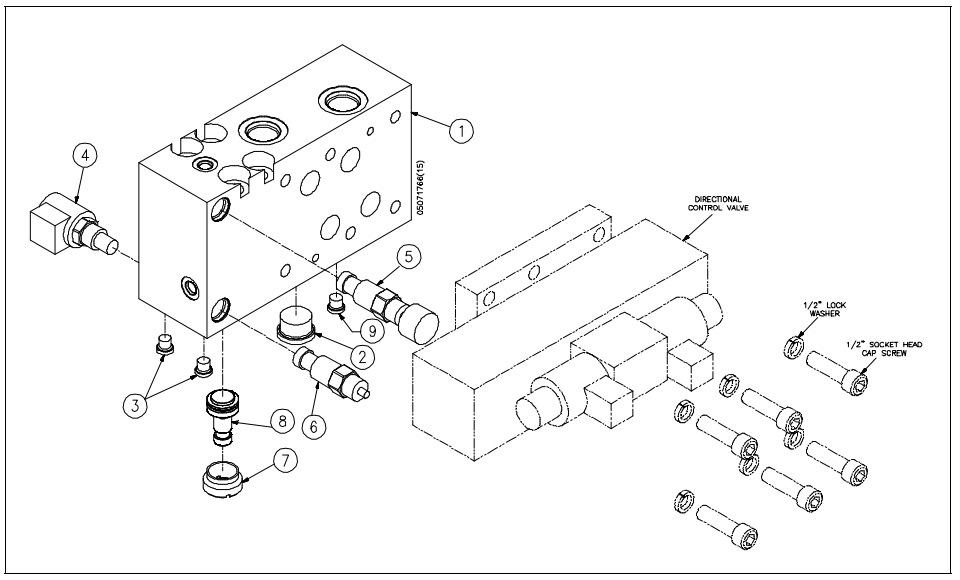

Spare Parts List of Hydraulic Manifold Assembly 05071766
| Item | Part Number | Description |
| 1 | 05044144 | Manifold |
| 2 | 05071055 | Plung ORB .75 |
| 3 | 05055017 | Plug ORB .13 |

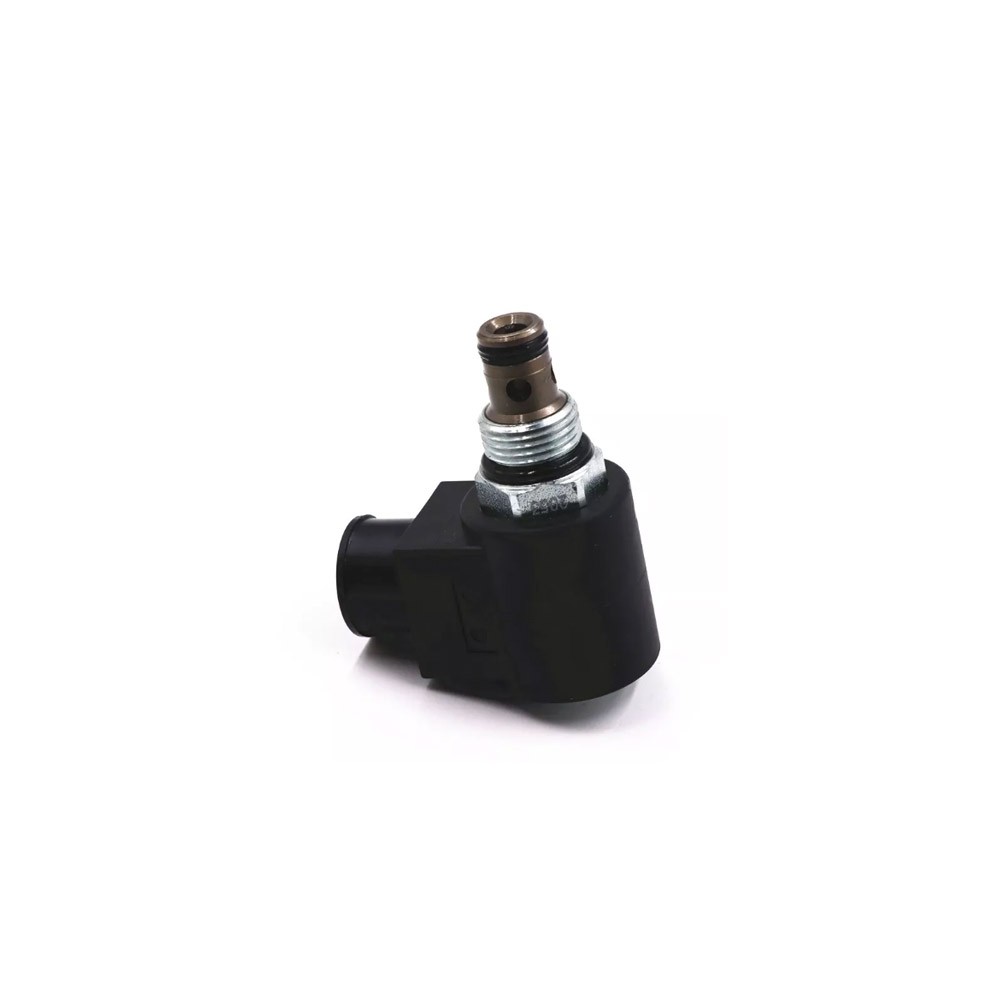

| 4 | 10185585 | Solenoid valve 24V DC |
| 5 | 10187052 | Relief valve 25-3000 psi |
| 6 | 10187060 | Relief valve 25-1500 psi |
| 7 | 49889744 | Retainer cartridge valve |
| 8 | 49889736 | Check valve |
| 9 | 49889769 | Plug ORB .25 |
