KMT Part Number: 10178184 Note, including 8" Nozzle tube 10138444 & 3/8" Nozzle nut 49863665 Other references: 103175

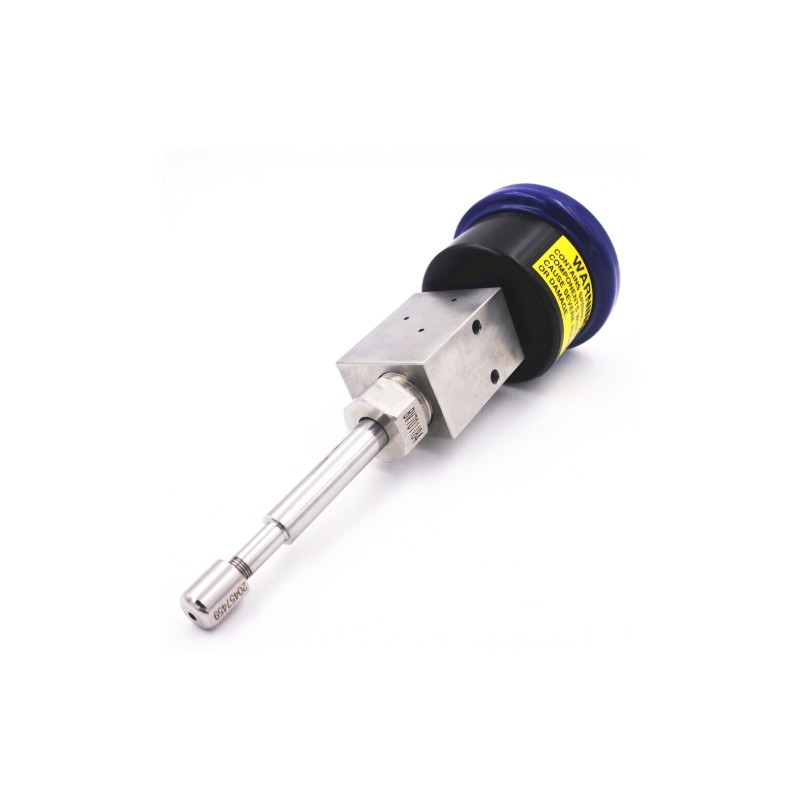

Water Only Cutting Head Assembly
Item No.: 10178184
N/C cutting valve assembly 10138824

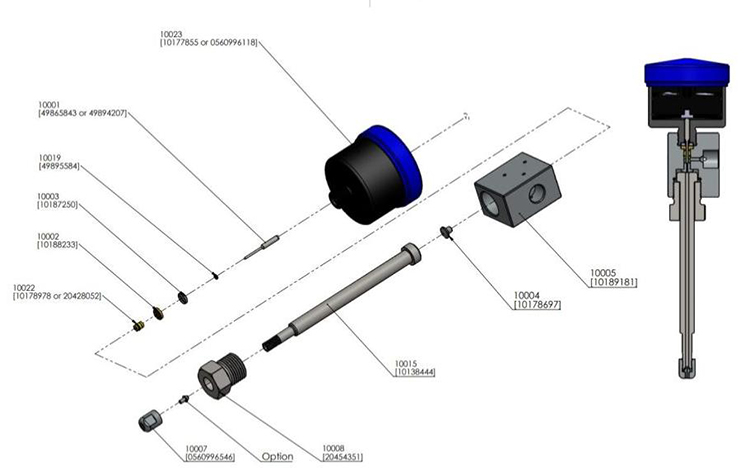

Details of the waterjet cutting head assembly:
| Item No. | Description |
| 10177855 or 0560996118 | Air Actuator |
| 49865843 or 49894207 | Valve Stem |
| 49895584 | O-ring |
| 10187250 | Stainless Steel Backup Ring |
| 10188233 | Brass Backup Ring |
| 10178978 or 20428052 | Seal Assembly |
| 10189181 | Pneumatic Valve Body |
| 10178697 | Seat Penumatic Valve |
| 10138444 | Nozzle Tube |
| 20454351 | Gland Nut |
| 49863590 or A2260006 or 1017 | Orifice 0.17mm or 0.18mm optional |
| 0560996546 or B2841 or 49863665 or 10014127 or 103100 | Nozzle Nut |
Win-Win Waterjet provide waterjet consumables and waterjet machine, regarding the waterjet spare parts, we have almost all of the parts in stock. Which can be sent out within 24 hours. If you are looking for the waterjet products supplier, feel free to leave us a message, we will get in touch with you soon!
