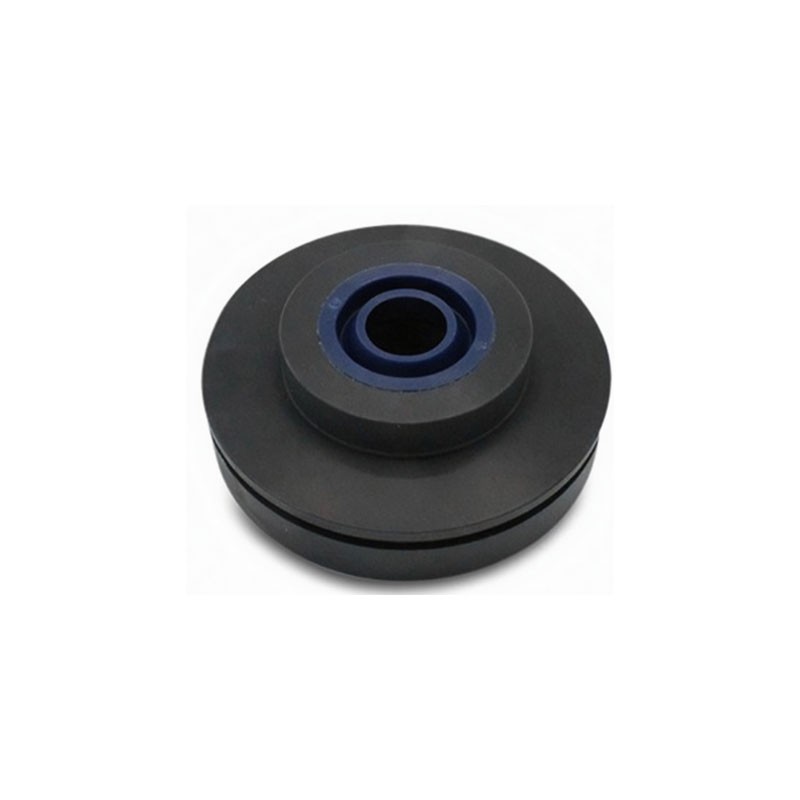

10176568 20411554 Top Cover, Pneumatic Valve

Related parts:

ACTUATOR ASSEMBLY, PNEUMATIC VALVE, NORMALLY CLOSED 10177855, 0560996118

05052899 COVER, PNEUMATIC VALVE ACTUATOR ASSEMBLY

10177772 SNAP RING, PNEUMATIC VALVE ACTUATOR

20411554 TOP COVER, PNEUMATIC VALVE ACTUATOR

02054119 SPRING

05145990 PISTON, PNEUMATIC VALVE ACTUATOR

10177806 O-RING, PNEUMATIC VALVE ACTUATOR

10176543 CYLINDER, PNEUMATIC VALVE ACTUATOR

10177855 Waterjet Actuator Assembly: Full Replacement vs Partial Parts Repair Guide

The 10177855 waterjet actuator assembly is a core OEM component for 60K ultra-high pressure waterjet cutting systems, serving as the key pneumatic control unit for water switch operation in waterjet cutting heads. As a precision integrated component, the 10177855 waterjet actuator assembly consists of dozens of tiny internal parts, including compression springs, precision O-rings, dust wiper seals, pistons, cylinder barrels, snap rings, and top covers. Its complex internal structure directly determines the stability, safety, and service life of the entire waterjet cutting equipment. For most waterjet operation and maintenance teams, the most confusing question is whether to replace the entire10177855 waterjet actuator assembly or repair and replace individual internal parts separately. This professional guide will elaborate on the two maintenance solutions to help users make cost-effective and safe maintenance decisions.

First, it is necessary to clarify the structural characteristics of the 10177855 waterjet actuator assembly. Different from ordinary single mechanical parts, the 10177855 waterjet actuator assembly adopts a highly integrated precision assembly design. All internal accessories are matched with professional factory calibration tolerances. Multiple sets of springs need precise pre-pressure matching, and all sealing parts have strict installation direction and torsion requirements. Any improper assembly of small parts will lead to ultra-high pressure leakage, delayed water switch action, jamming, or even equipment failure. This is why the original factory takes the lead in recommending overall replacement of the 10177855 waterjet actuator assembly for most industrial users.

Full assembly replacement of the 10177855 waterjet actuator assembly is the most reliable and mainstream maintenance solution for industrial production scenarios. All factory-supplied 10177855 waterjet actuator assembly products are pre-assembled, calibrated, and tested through strict low-pressure air tightness and high-pressure step-up tests before leaving the factory. Users can complete direct disassembly and replacement on site, which greatly shortens equipment downtime and avoids production losses caused by prolonged maintenance. This solution is especially suitable for users with insufficient on-site maintenance experience, tight production schedules, and high equipment safety requirements. In ultra-high pressure 60K working environment, the fully assembled 10177855 waterjet actuator assembly can effectively avoid hidden dangers such as pressure deviation and liquid leakage caused by manual assembly errors, ensuring long-term stable operation of the waterjet cutting machine.

In addition to overall replacement, partial part replacement and maintenance of the 10177855 waterjet actuator assembly are also feasible for professional maintenance teams. Users can purchase special repair kits including O-rings, dust seals and spring accessories to repair the old 10177855 waterjet actuator assembly, which can effectively reduce maintenance costs. However, partial repair has strict applicable preconditions. It is only recommended when the failure cause is single aging and damage of sealing parts, and the core components of the assembly such as cylinder barrel and piston have no scratches, wear or deformation, and the internal springs have no fatigue failure.

It is worth noting that the partial maintenance of the 10177855 waterjet actuator assembly has high technical thresholds and risks. On-site disassembly is prone to loss of tiny parts such as snap rings, and inconsistent pre-pressure of multiple springs will cause unstable switching action. Improper installation of seal lip direction and twisted O-rings will lead to repeated leakage failures under ultra-high pressure. More importantly, if the core components of the 10177855 waterjet actuator assembly are worn, simple replacement of sealing parts cannot solve the fundamental problem, and secondary failure will occur in a short time. In addition, self-disassembly and maintenance will invalidate the original factory warranty of the product.

To sum up, for most waterjet processing enterprises and daily equipment maintenance, overall replacement of the 10177855 waterjet actuator assembly is the preferred solution with higher safety factor and more stable performance. For professional maintenance teams with complete tools, official maintenance manuals and rich on-site experience, partial replacement of damaged parts can be selected to save costs on the premise of complete intact core components. Choosing a reasonable maintenance method according to the actual failure condition of the10177855 waterjet actuator assembly can balance equipment operation safety, maintenance cost and production efficiency to the greatest extent.

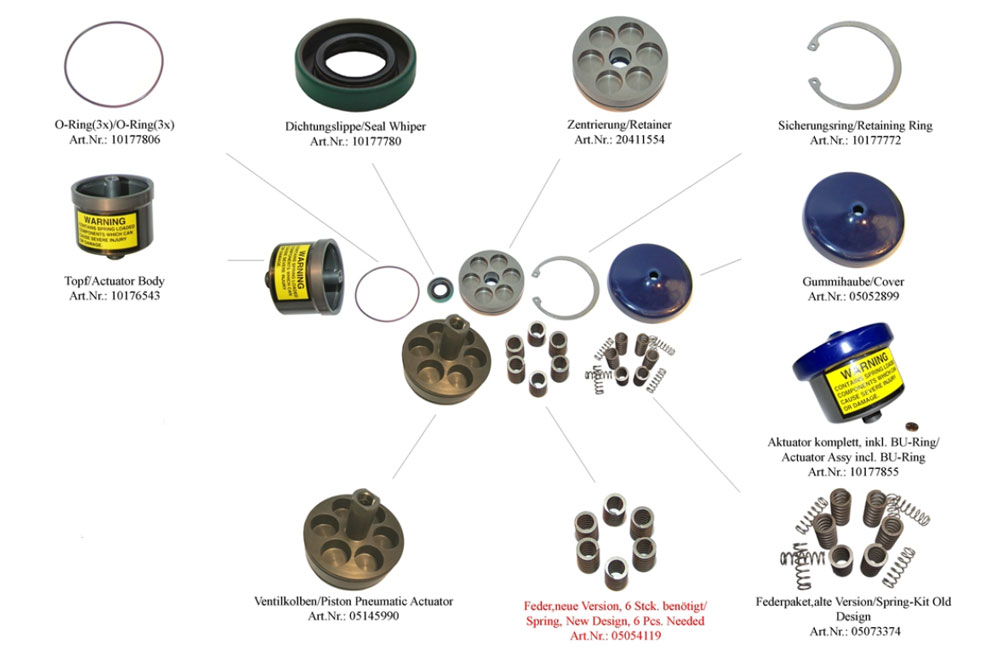

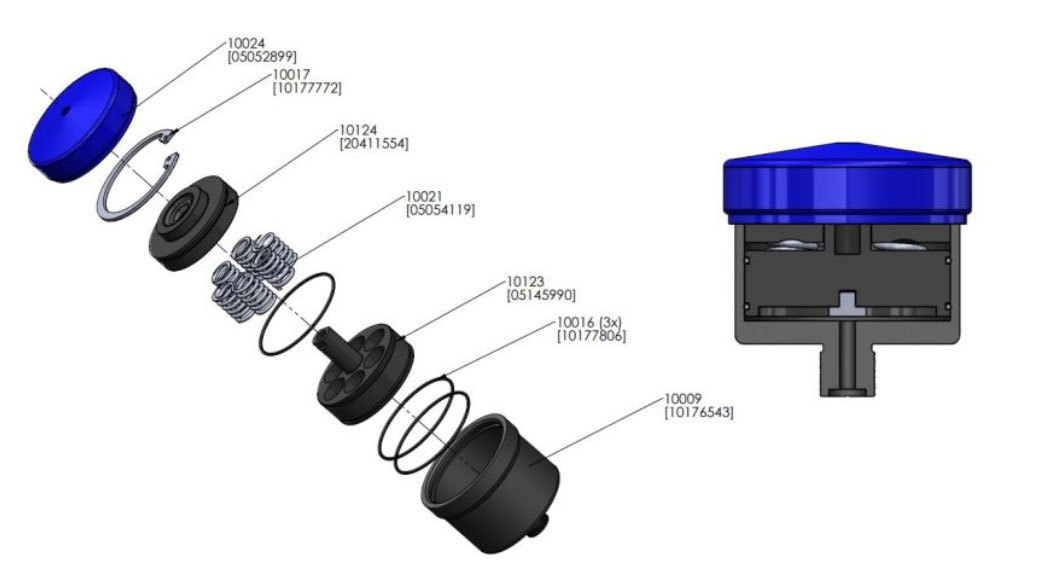

This Assembly Contains:
10176543 Cylinder IR NC Valve
20411546 Piston, IR NC Valve
20411554 Top Cover
10177772 Snap Ring
10177780 Seal/Wiper
05054119 Spring Kit
10177806 O-Ring
10187250 Bearing Disk, 1/4" Seal
49895584 O-Ring, NC/NO Valve
00080028 Actuator Cover
