Used for: Resato waterjet cutting machine

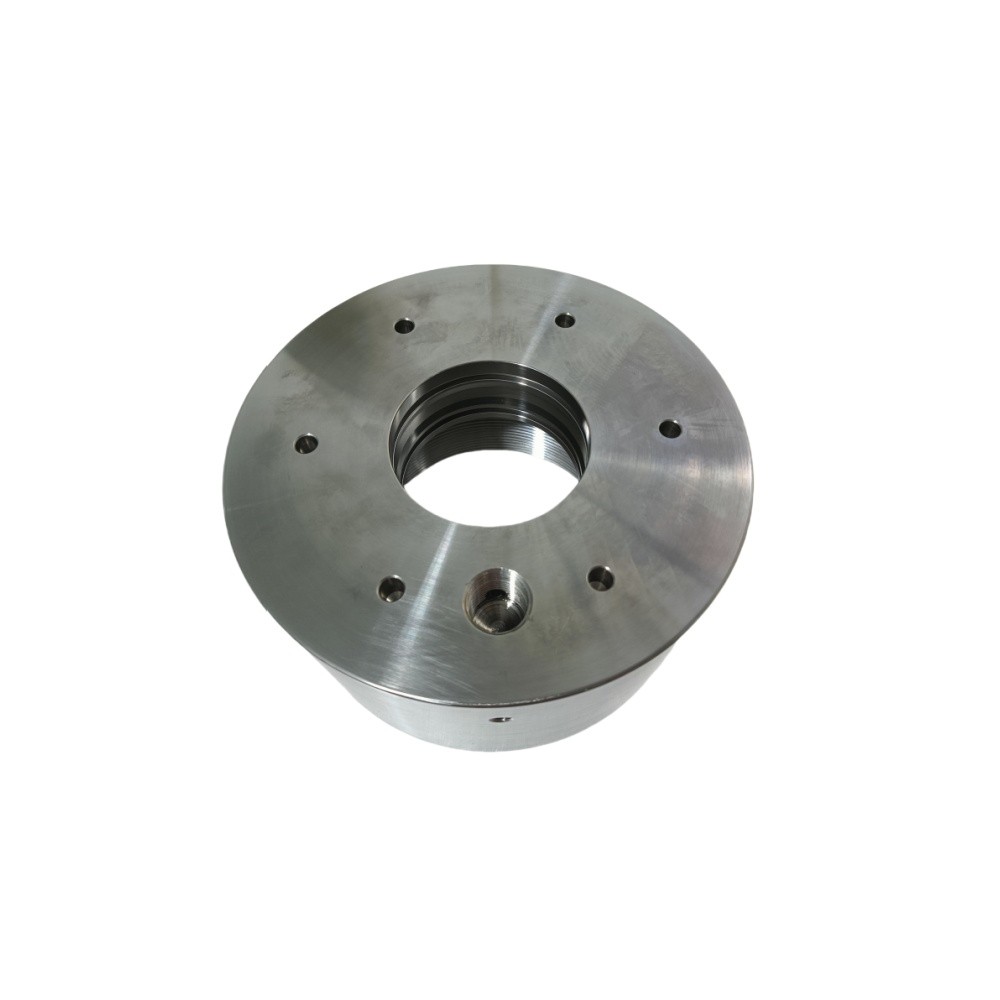

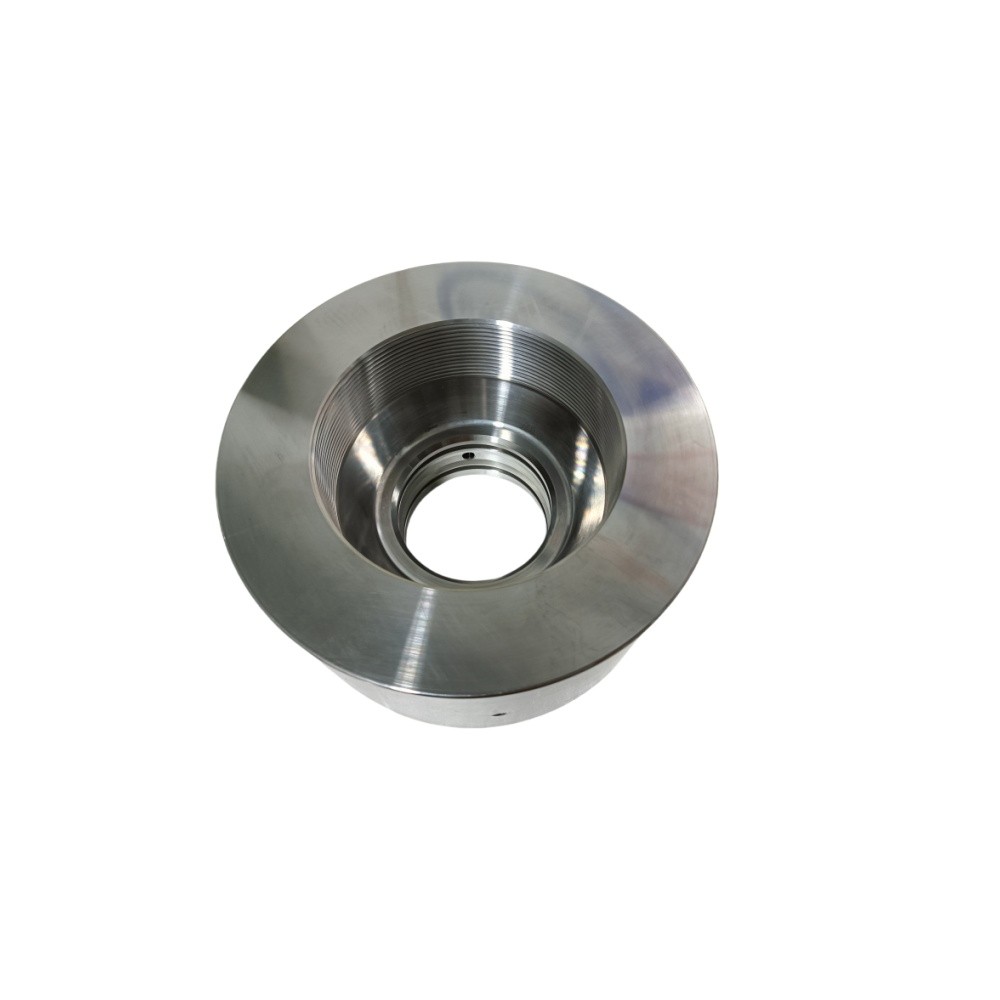

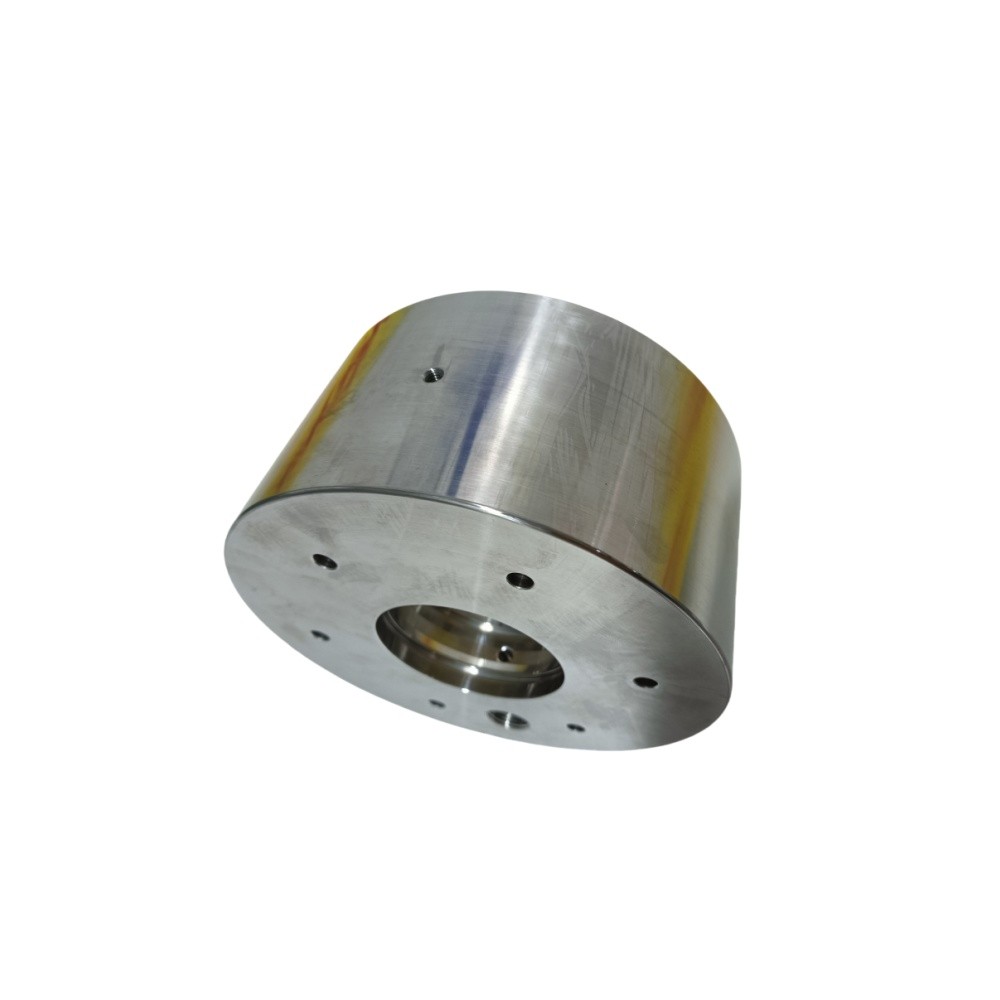

The RESATO Waterjet spare parts 1004316 HP Flange:

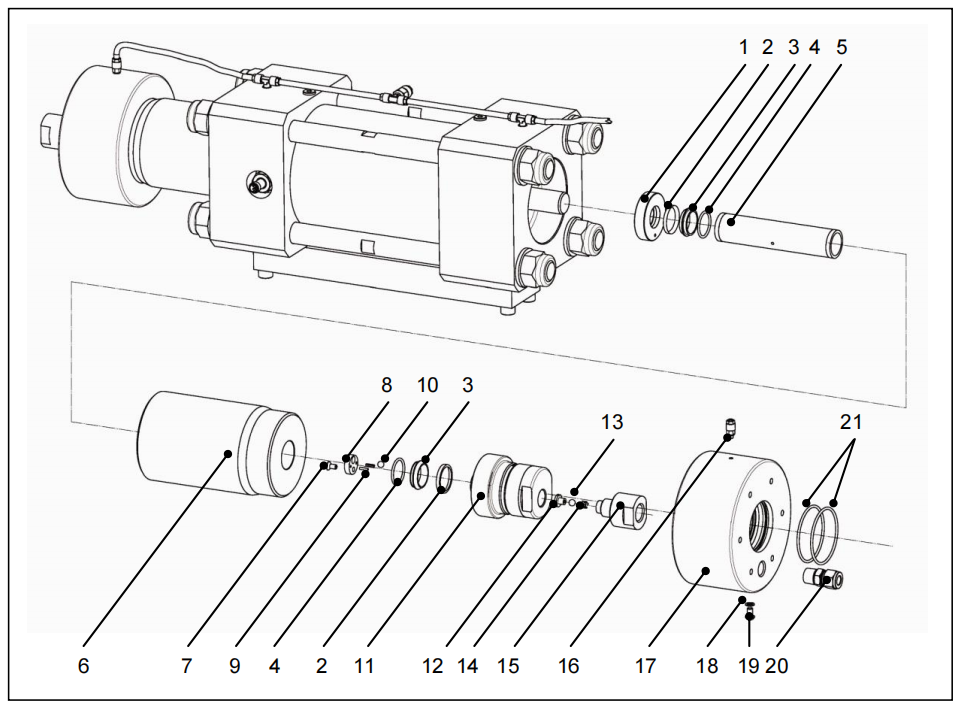

| NO. | QTY | Product name | IOP115-20-2 | A | B | C | D | E |
| 1 | 2 | Support ring | 1003697 | X | ||||
| 2 | 4 | Hoop | 1004319 | X | X | |||
| 3 | 4 | High-pressure seal | 1010531 | X | X | |||
| 4 | 4 | O-ring | ||||||
| 5 | 2 | Bushing | 1004326 | |||||
| 6 | 2 | High-pressure cylinder | 1003544 | |||||
| 7 | 2 | Screw | 1003435 | X | ||||
| 8 | 2 | Disk | 1001824 | X | ||||
| 9 | 4 | Ider | 1005501 | X | ||||
| 10 | 2 | Ball | 1001753 | X | ||||
| 11 | 2 | Valve body | 1004154 | X | ||||
| 12 | 2 | Seat | 1003436 | X | X | |||
| 13 | 2 | Ball | 1003434 | X | X | |||
| 14 | 2 | Guidance crown | 1003437 | X | X | |||
| 15 | 2 | Gland | 1003433 | X | ||||
| 16 | 2 | Leakrate nipple HP flange | 1005326 | |||||
| 17 | 2 | HP flange | 1004316 | |||||
| 18 | 2 | Sealing ring | 1015590 | |||||
| 19 | 2 | Screw | 1001919 | |||||
| 20 | 2 | Connector | 103370 | |||||
| 21 | 4 | O-ring | 1000799 | X | ||||
| No. | Description | IOP115-20-2 | ||||||
| A | Dynamic seal assembly | 1004439 | ||||||
| B | Static seal assembly | 1004540 | ||||||
| C | Inlet check valve assembly | 1004604 | ||||||
| D | Outlet check valve assembly | 1003269 | ||||||
| E | Outlet check valve repair kit | 1004541 | ||||||

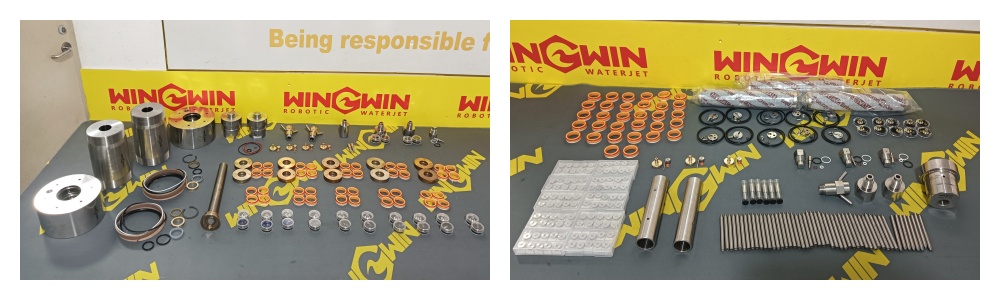

Other parts of RESATO waterjet:
No. | Code | Description |
1 | 1003302 | HP filter element 40 micron |
2 | 1029990 | Seal kit B for cutting head body |
3 | Static seal | |
4 | 1004535 | Mixing chamber |
5 | 1004543 | Repair kit for the hydraulic bleed valve |
6 | 1044042 | Oil filter element |
7 | 1004326 | Bushing |
8 | 1004541 | Outlet check valve repair kit |
9 | Inlet check valve repair kit | |
10 | 1004240 | Tube 0.76 |
11 | 1004273 | Nozzle 0.25 |
12 | 1003433 | Gland |
13 | 1004154 | Valve body |
1004539 HP seal kit
1003269 outlet check vavle assembly
1003544 HP cylinder
1054189 plunger
1003644 HP filter
1005009 hydralic seal kit
1029992 Sealkit C VJW1-2R-40-C-80
1004316 HP flange
1001510 Replaceable seat/gland
1003333 Needle
1003334 o-ring
1002056 back-up ring
1002057 back-up ring
1002839 o-ring
1003324 Rod seal
1003426 Hydraulic seal
1003327 106*3NBR70 o-ring
1002152 backup ring
1005004 backup ring
1001742 retaining ring
