Used for: R-esato waterjet cutting machine
Win-Win provides all series replacement for R-ESATO waterjet cutting machine:

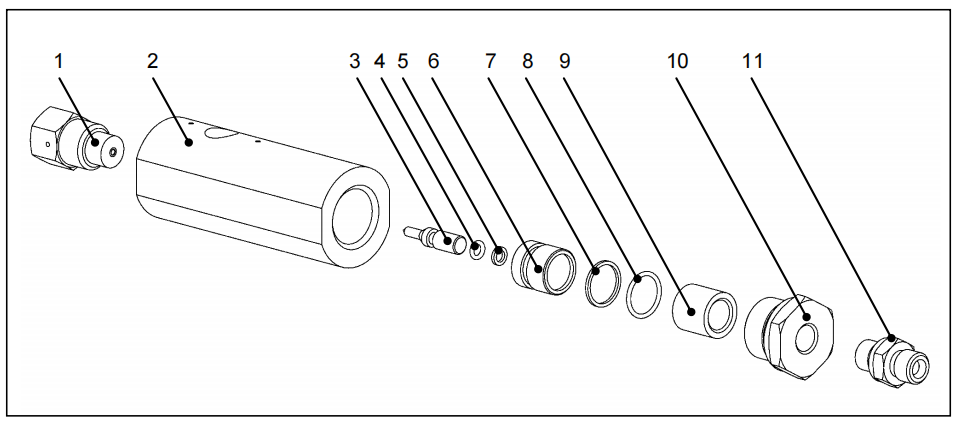

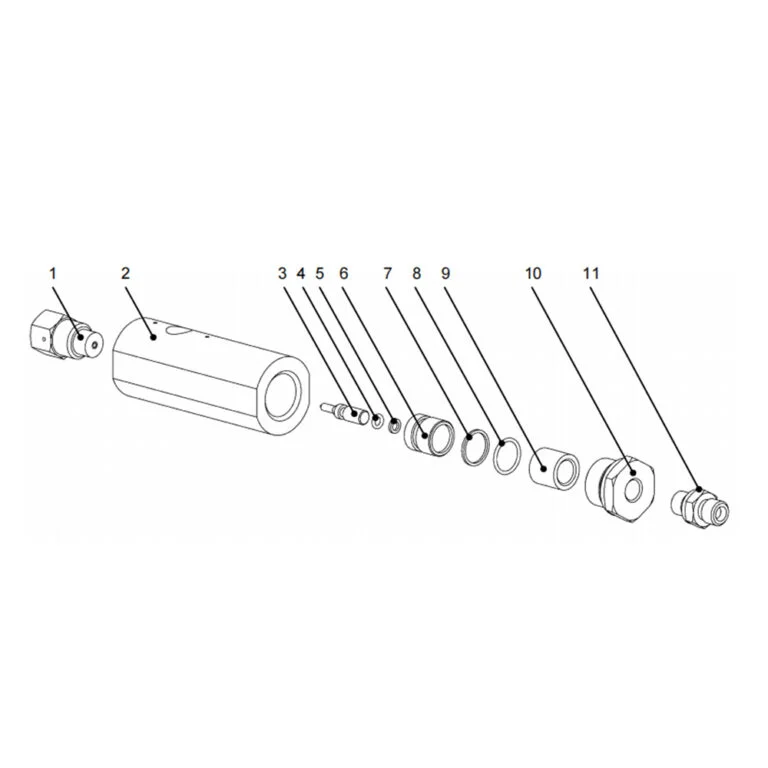

| Nr. | Aantal | Beschrijving | PJ 2-4000 PJ 4-4000 | Reparatieset A | Reparatieset B |
|---|---|---|---|---|---|
| 1 | 1 | Replaceable seat/gland | 1001510 | X | X |
| 2 | 1 | Body | 1002055 | X | |
| 3 | 1 | Needle | 1003333 | X | X |
| 4 | 1 | O-ring | 1003334 | X | X |
| 5 | 1 | Back-up ring | 1002056 | X | X |
| 6 | 1 | Piston | 1002058 | X | |
| 7 | 1 | Back-up ring | 1002057 | X | X |
| 8 | 1 | O-ring | 1002839 | X | X |
| 9 | 1 | Spacer | 1002059 | X | |
| 10 | 1 | Adapter | 1003335 | X | |
| 11 | 1 | Hose adapter | 1003336 | X | |
| Reparatieset | Beschrijving | PJ 2-4000 PJ 4-4000 | |||
| A | Hydraulic bleed valve assembly | 1003260 | |||
| B | Repair kit for the hydraulic bleed valve | 1004543 |
