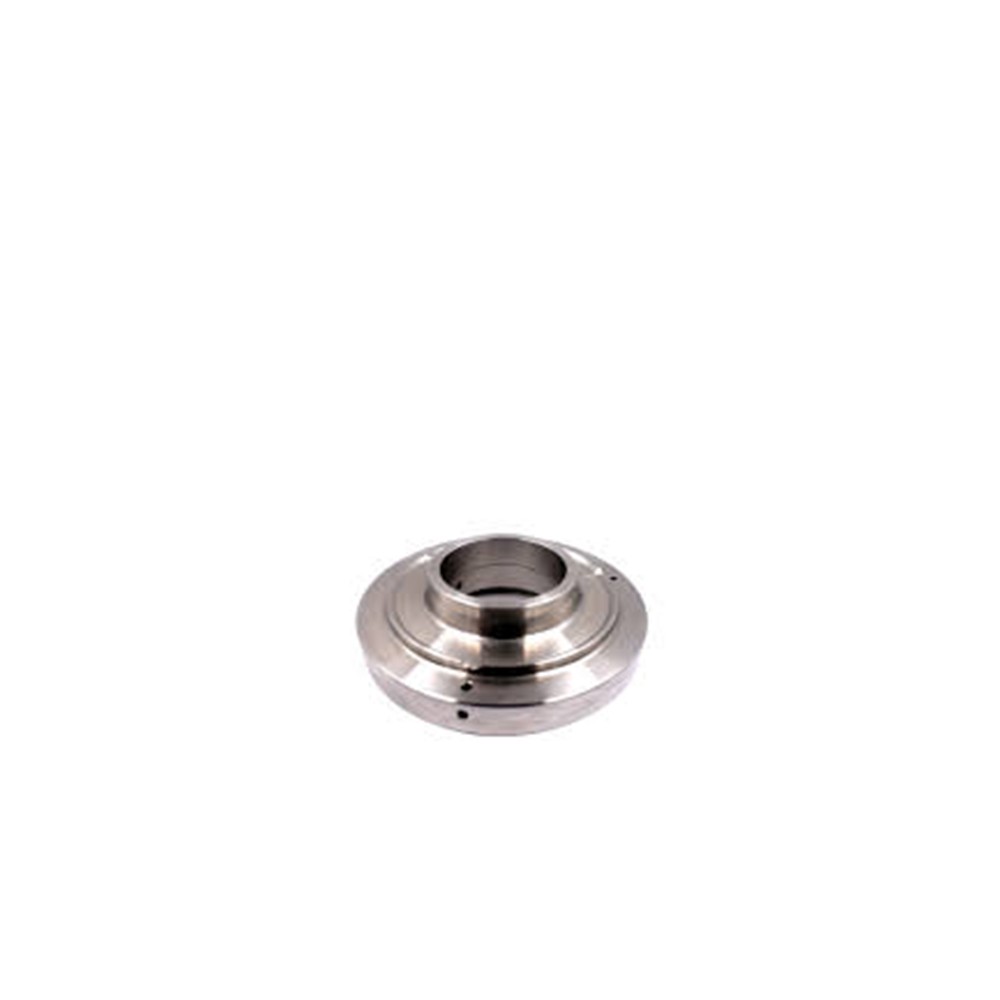

05145099 Waterjet Flange Bushing Retainer 1.125 Plunger 60K

Flange, Bushing Retainer, HP, 1.125 Plunger, 60K.
Pump Type Compatibility
SL-IV Plus 75hp - 200hp SL-V 75hp - 200hp SL-VI 75hp - 200hp
Rated Pressure Compatibility
60 000 psi
Part Number 05145099

Product Description:

CONTACT US TO GET THE WATERJET PARTS PRICE LIST & CATALOG!

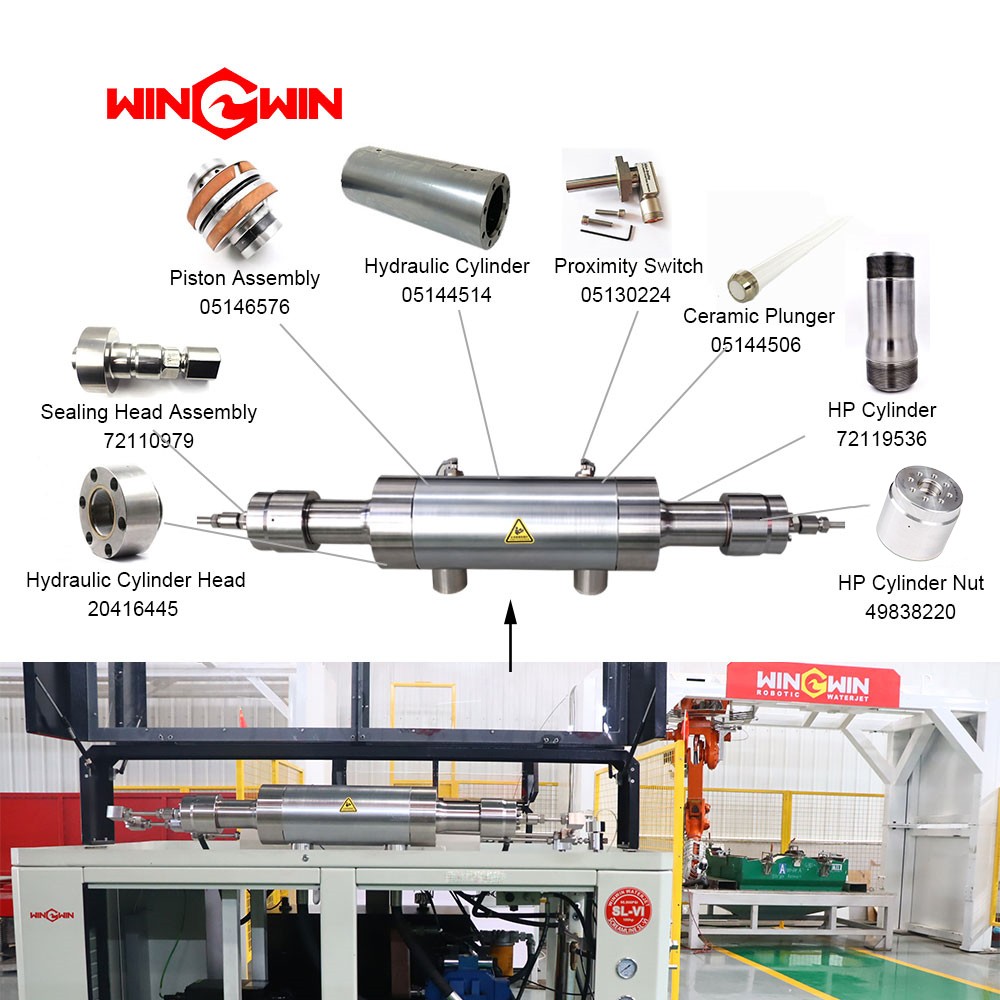

100hp waterjet.png

Item	Part Number	Description	Item	Part Number	Description
1	72119536	HP Cylinder	16	05120092	Backup Ring, 5.25 x 5.50
2	05144506	Ceramic Plunger	17	10074771	O-Ring, 5.25 x 5.50 x .13
3	72110979	Sealing Head Assembly	18	20413955	Socket Head Screw, 3/4-16 x 3-1/4
4	20416445	Hydraulic Cylinder Head	19	05130224	Proximity Switch, 20-250V AC/DC
5	05149711	HP Seal Assembly	20	95119012	Socket Head Screw, 1/4 x 20 x 1
7	49838220	HP Cylinder Nut, HSEC	21	05146576	Piston Assembly
8	05146584	Hydraulic Cartridge Seal Assembly	23	05144522	Topworks Support
9	05145099	Bushing Retainer Flange	25	05041058	Socket Head Screw, 3/8-16 x 2-1/4
11	72110945	Liner, HP Cylinder	26	95688743	Lock Washer, .38
12	10074920	O-Ring, 1.75 x .94 x .09	27	10118206	O-Ring, 1.31 x 1.56 x .13
13	80070352	Jackbolt, 7/16-20 x 2.31	28	05144183	Spacer Assembly, Proximity Switch
14	05034798	Retaining Ring		05144191	O-Ring, .69 x .88 x .09
15	05144514	Hydraulic Cylinder	29	05146592	Gasket, Topworks Support
