For STREAMLINE SL-V E50 / SL-IV / NEOLINE WATERJET INTENSIFIER PUMP

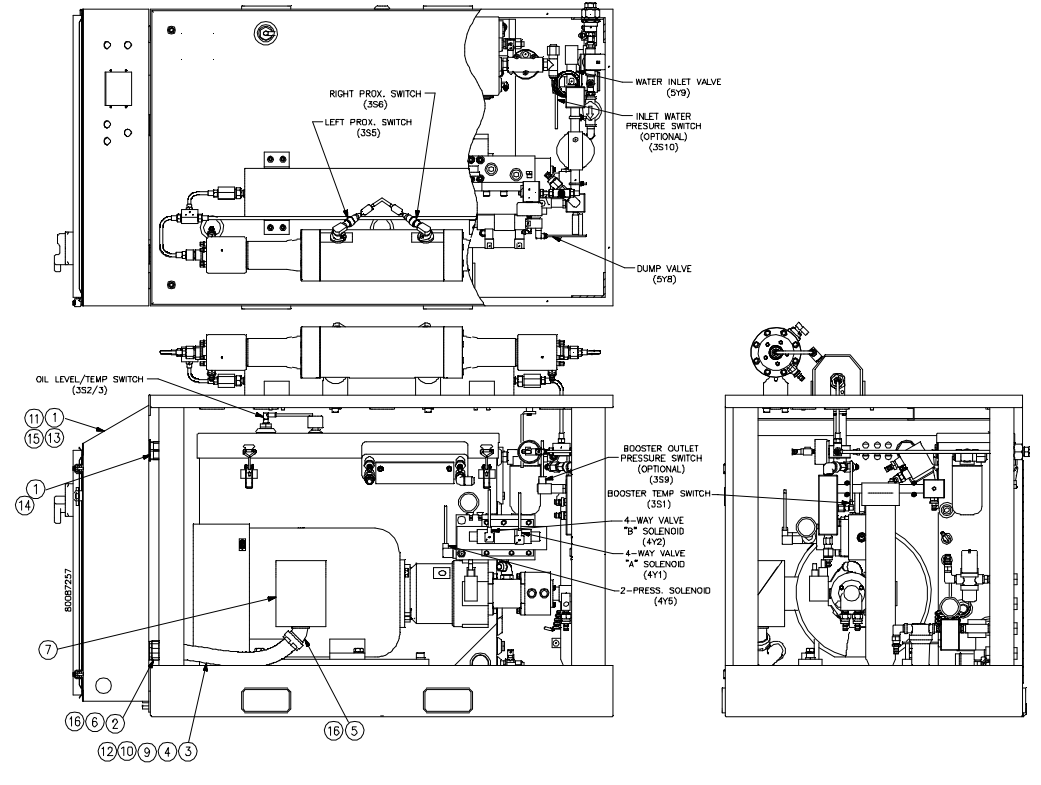

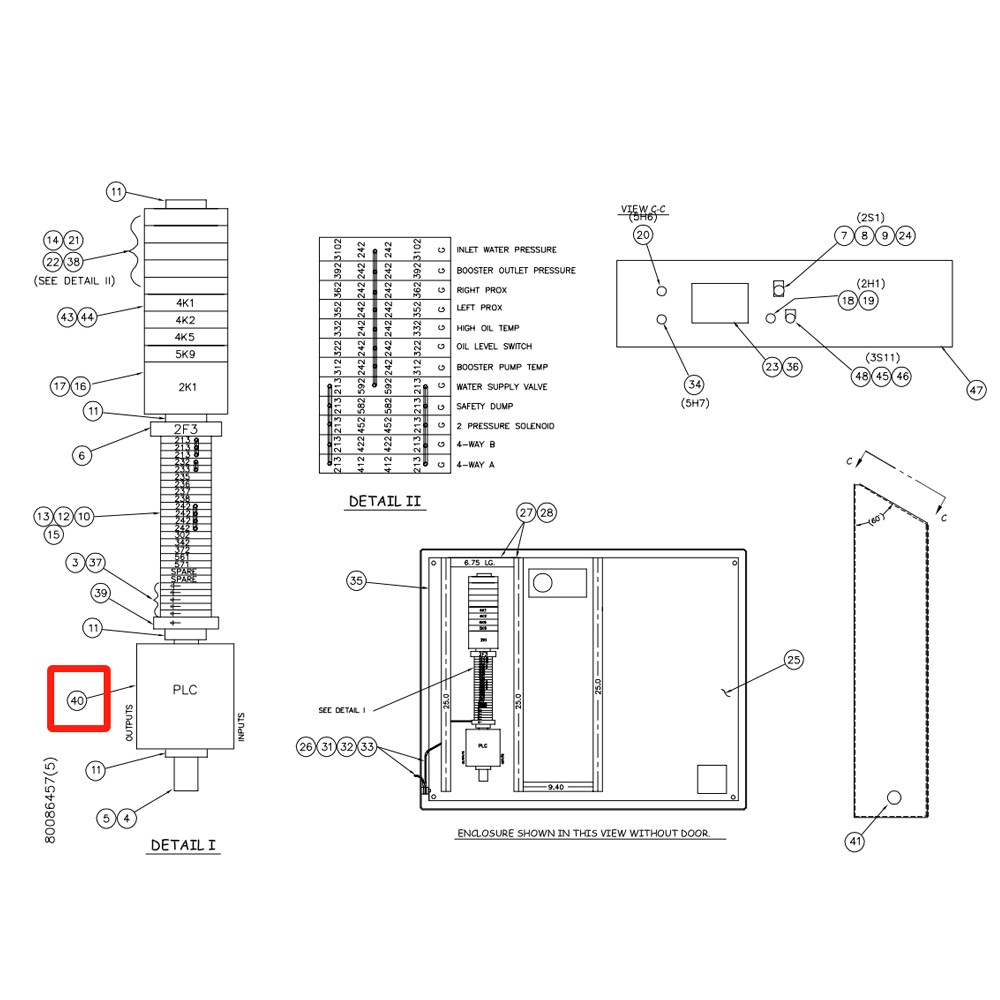

Spare Parts List of Controls Subassembly 80086457
Item | Part Number | Description |
1 | 10176410 | Wire, #16, Blue |
2 | 10170165 | Wire, #16/1 MM 2, Green/Yellow |
3 | 05032420 | Terminal Block |
4 | 10103034 | DIN Mounting Rail |
5 | 10157667 | Pan Head Screw, 10-32 x 3/4 |
6 | 49839335 | Circuit Breaker, 6A |
7 | 20416802 | Emergency Stop Switch |
8 | 20419143 | Contact Block |
9 | 05049473 | Legend Plate |
10 | 05032438 | Terminal Block 2 |
11 | 05032362 | End Anchor, Terminal Block |
12 | 05032370 | End Barrier |
13 | 05032388 | Terminal Block Jumper |
14 | 05112818 | Terminal Block Marker |
15 | 05032412 | Blank Markers, Terminal Blocks |
16 | 20418179 | Relay Base, 14-Pin |
17 | 20418187 | Tube Base Relay, 24V DC |
18 | 49833395 | Push Button Switch, Illuminated |
19 | 49833486 | Lamp Socket Block, W/24V Bulb |
20 | 49833379 | Pilot Light, Green |
21 | 05113634 | Terminal Block |
22 | 05112826 | Terminal Block Jumper |
23 | 49831597 | Cable, Modem to Channel 0 |
24 | 20416825 | Illuminated Operator |
25 | 20411677 | Subplate, Electrical Enclosure |
26 | 10157659 | Lock Washer, .25 |
27 | 05021944 | Wiring Duct |
28 | 10170132 | Push Rivet, .187 |
29 | 05140926 | Wire, #16, Orange |
30 | 10185395 | Connector, Crimp Ferrule, #16 |
31 | 10170157 | Wire, #10/4 MM 2, Green/Yellow |
32 | 10094712 | Ring Terminal, 14-10, 1/4 |
33 | 95416335 | Hex Nut, 1/4-2 |
34 | 49833387 | Pilot Light, Red |
35 | 10102242 | Spiral Wrap, .38 |
36 | 05137740 | Panelview Display, 300 |
37 | 05115134 | End Barrier |
38 | 05117601 | End Barrier |
39 | 05115704 | Terminal Block |
40 | 05138623 | Programmable Controller |
41 | 49874233 | Hole Seal, 1.50 |
42 | 05061312 | Hole Seal, 2.50 |
43 | 10156859 | I/O Rack, 2 Slot, 24V DC |
44 | 10146363 | Output Module, DC 24 |
45 | 49833411 | Selector Switch, Keyed |
46 | 05114889 | Legend Plate, Remote Control On/Off |
47 | 20417130 | Wiring Duct |
48 | 05140629 | Legend Plate Holder |
