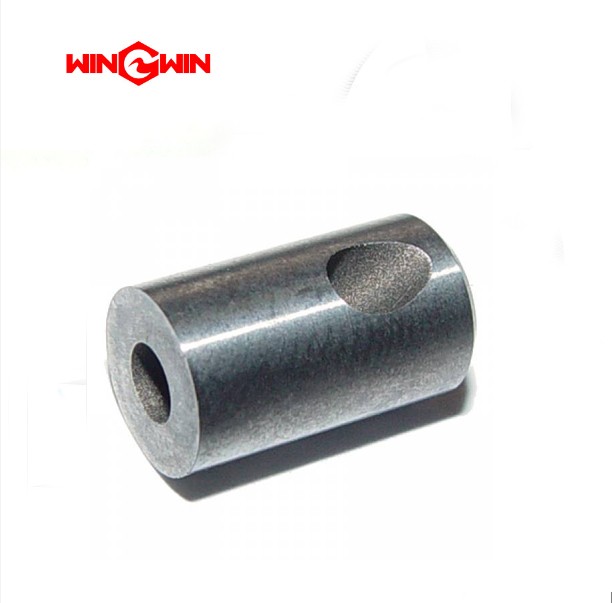

05076955 Wear Insert - Autoline,0.03 waterjet parts

Product Item：05076955
05076955 Wear Insert AUTOLINE I assembly , 60K/60,000PSI,
Pump Type Compatibility
NeoLine SL-IV 100hp Dual Topworks SL-IV 15hp - 60hp
 SL-IV 75hp - 200hp SL-IV Plus 100hp Dual Topworks
SL-IV Plus 15hp - 60hp SL-IV Plus 75hp - 200hp SL-V 100hp
 Dual Topworks SL-V 15hp - 60hp SL-V 75hp - 200hp
SL-VI 15hp - 60hp SL-VI 75hp - 200hp TriLine
Rated Pressure Compatibility
60 000 psi

Product Description:

Autoline™ Abrasive Nozzle Assembly

05078530	AutolineTM Nozzle Assembly, .030 Wear Insert
05147970	AutolineTM Nozzle Assembly, .043 Wear Insert
05076971	Nozzle Cap
05076955	Wear Insert, .030 x .156
05135827	Wear Insert, .043 x .156
05076989	Feed Tube Adapter
05077292	Setscrew, 1/4-28
05081518	O-Ring, .38 x .50 x .06
05104930	O-Ring, .50 x .63 x .06
05092887	O-Ring, .75 x .63 x .06
05078712	Retainer Knob
05087168	Guard
49885361	Poly Tube, .38

1. Which nozzles are used for KMT waterjet cutting head?

The PRO Series features the superior HYPERTUBE Index Design for longer, more uniform wear preventing “focusing tube blow-out"

0.030 x 3.0 / 0.76 mm x 76 mm 20477366

0.030 x 4.0 / 0.76 mm x 102 mm 20477382

0.033 x 4.0 / 0.84 mm x 102 mm 20490760

0.040 x 3.0 / 1.02 mm x 76 mm 20486133*

0.040 x 4.0 / 1.02 mm x 102 mm 20486166*

0.043 x 3.0 / 1.10 mm x 76 mm 20477386

0.043 x 4.0 / 1.10 mm x 102 mm 20477395

0.045 x 3.0 / 1.14 mm x 76 mm 20486151*

0.045 x 4.0 / 1.14 mm x 102 mm 20486158

0.048 x 4.0 / 1.22 mm x 102 mm 20490768

ROCTEC® 100 waterjet cutting head nozzle

0.021 x 3.13 / 0.53 mm x 79 mm 20451227*

0.025 x 3.13 / 0.63 mm x 79 mm 20452309*

0.030 x 3.13 / 0.76 mm x 79 mm 10126969

0.036 x 3.13 / 0.91 mm x 79 mm 80075252

0.039 x 3.13 / 0.99 mm x 79 mm 49833593*

0.040 x 3.13 / 1.02 mm x 79 mm 49835390

0.043 x 3.13 / 1.10 mm x 79 mm 10126928

0.052 x 3.13 / 1.32 mm x 79 mm 05117528

0.058 x 3.13 / 1.47 mm x 79 mm 05051891*

0.063 x 3.13 / 1.60 mm x 79 mm 10126936

ROCTEC® 500

0.021 x 2.0 / 0.53 mm x 50 mm 05097928

0.030 x 3.13 / 0.76 mm x 79 mm 05097944

0.036 x 3.13 / 0.91 mm x 79 mm 05116652

0.043 x 3.13 / 1.10 mm x 79 mm 05097936

0.093 x 3.13 / 2.36 mm x 79 mm 05130927*

2. Which model orifice suit for KMT waterjet cutting head ?

1. AUTOLINE PRO 6,200 bar Diamond Orifice

0.004" / 0.10 mm 20481704

0.005" / 0.12 mm 20481705

0.006" / 0.15 mm 20481706

0.007" / 0.17 mm 20481707

0.008" / 0.20 mm 20481708

0.009" / 0.23 mm 20481709

0.010" / 0.25 mm 20481710

0.011" / 0.28 mm 20481711*

0.012" / 0.30 mm 20481712

0.013" / 0.33 mm 20481713*

0.014" / 0.35 mm 20481714

0.015" / 0.38 mm 20481715*

0.016" / 0.40 mm 20481716

0.017" / 0.43 mm 20481717*

0.018" / 0.46 mm 20481718*

0.019" / 0.48 mm 20481719*

0.020" / 0.51 mm 20481720*

0.021" / 0.53 mm 20481721*

0.022" / 0.56 mm 20481722*

2. AUTOLINE I & II 4,100 bar For True Alignment & Maximum Performance waterjet cutting head Diamond Orifice

0.004" / 0.10 mm 20448625*

0.007" / 0.17 mm 05063847

0.008" / 0.20 mm 05112537

0.009" / 0.23 mm 05084504

0.010" / 0.25 mm 05077029

0.011" / 0.28 mm 05101753

0.012" / 0.30 mm 05077300

0.013" / 0.33 mm 05136098

0.014" / 0.35 mm 05077037

0.015" / 0.38 mm 80075781*

0.016" / 0.40 mm 05121512

0.018" / 0.46 mm 05114905*

0.019" / 0.48 mm 80086663*

0.020" / 0.51 mm 05114897

3. Sapphire Orifice

0.007" / 0.17 mm 05109079*

0.008" / 0.20 mm 05109087*

0.009" / 0.23 mm 05109095*

0.010" / 0.25 mm 05109103*

0.011" / 0.28 mm 05109111*

0.012" / 0.30 mm 05109129*

0.013" / 0.33 mm 20412569*

0.014" / 0.35 mm 05109137*

0.016" / 0.40 mm 20448541*

0.018" / 0.46 mm 05114913*

0.019" / 0.48 mm 80086671*

0.020" / 0.51 mm 05114921

4. Orifices for Pure Water Cutting 4,100 bar Diamond Orifice

0.003" / 0.07 mm 49888852

0.004" / 0.10 mm 49888860

0.005" / 0.12 mm 49888878

0.006" / 0.15 mm 49888886

0.007" / 0.17 mm 49888894

0.008" / 0.20 mm 49888902

0.009" / 0.23 mm 49888910

0.010" / 0.25 mm 49888928

0.012" / 0.30 mm 49888936

0.013" / 0.33 mm 49836786*

0.014" / 0.35 mm 49888944

0.015" / 0.38 mm 49888951

0.016" / 0.40 mm 49888969

0.018" / 0.46 mm 49888977

0.019" / 0.48 mm 20436198*

0.020" / 0.51 mm 49888985

0.022" / 0.56 mm 49888993

5. waterjet cutting head Sapphire Orifice

PREVIOUS：05078530 AUTOLN ASSY-.030,.38 HP waterjet parts NEXT：05078712 Focus Tube Retainer Knob waterjet parts
