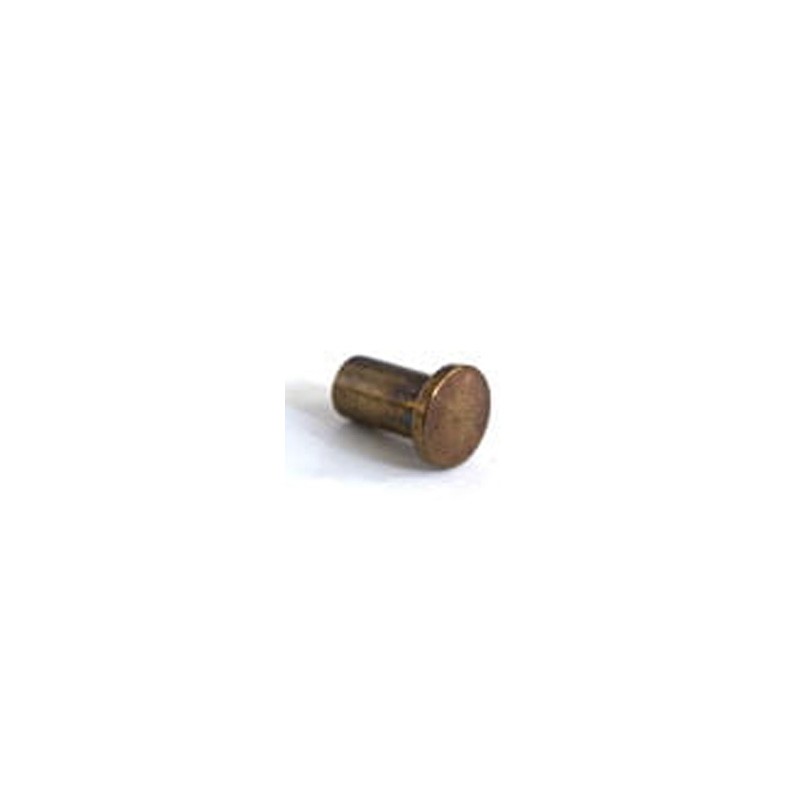

05074380 Plunger Retainer Pin, Clevis Used on SL-VI100HP series pump MOQ: 1 unit Shipping Method: DHL/FedEx/UPS etc. Payment Method: T/T/XTransfer/Paypal etc.
CONTACT US TO GET THE WATERJET PARTS PRICE LIST & CATALOG!
| Item | Part Number | Description | Item | Part Number | Description |
| 1 | 72119536 | HP Cylinder | 16 | 05120092 | Backup Ring, 5.25 x 5.50 |
| 2 | 05144506 | Ceramic Plunger | 17 | 10074771 | O-Ring, 5.25 x 5.50 x .13 |
| 3 | 72110979 | Sealing Head Assembly | 18 | 20413955 | Socket Head Screw, 3/4-16 x 3-1/4 |
| 4 | 20416445 | Hydraulic Cylinder Head | 19 | 05130224 | Proximity Switch, 20-250V AC/DC |
| 5 | 05149711 | HP Seal Assembly | 20 | 95119012 | Socket Head Screw, 1/4 x 20 x 1 |
| 7 | 49838220 | HP Cylinder Nut, HSEC | 21 | 05146576 | Piston Assembly |
| 8 | 05146584 | Hydraulic Cartridge Seal Assembly | 23 | 05144522 | Topworks Support |
| 9 | 05145099 | Bushing Retainer Flange | 25 | 05041058 | Socket Head Screw, 3/8-16 x 2-1/4 |
| 11 | 72110945 | Liner, HP Cylinder | 26 | 95688743 | Lock Washer, .38 |
| 12 | 10074920 | O-Ring, 1.75 x .94 x .09 | 27 | 10118206 | O-Ring, 1.31 x 1.56 x .13 |
| 13 | 80070352 | Jackbolt, 7/16-20 x 2.31 | 28 | 05144183 | Spacer Assembly, Proximity Switch |
| 14 | 05034798 | Retaining Ring | 05144191 | O-Ring, .69 x .88 x .09 | |
| 15 | 05144514 | Hydraulic Cylinder | 29 | 05146592 | Gasket, Topworks Support |

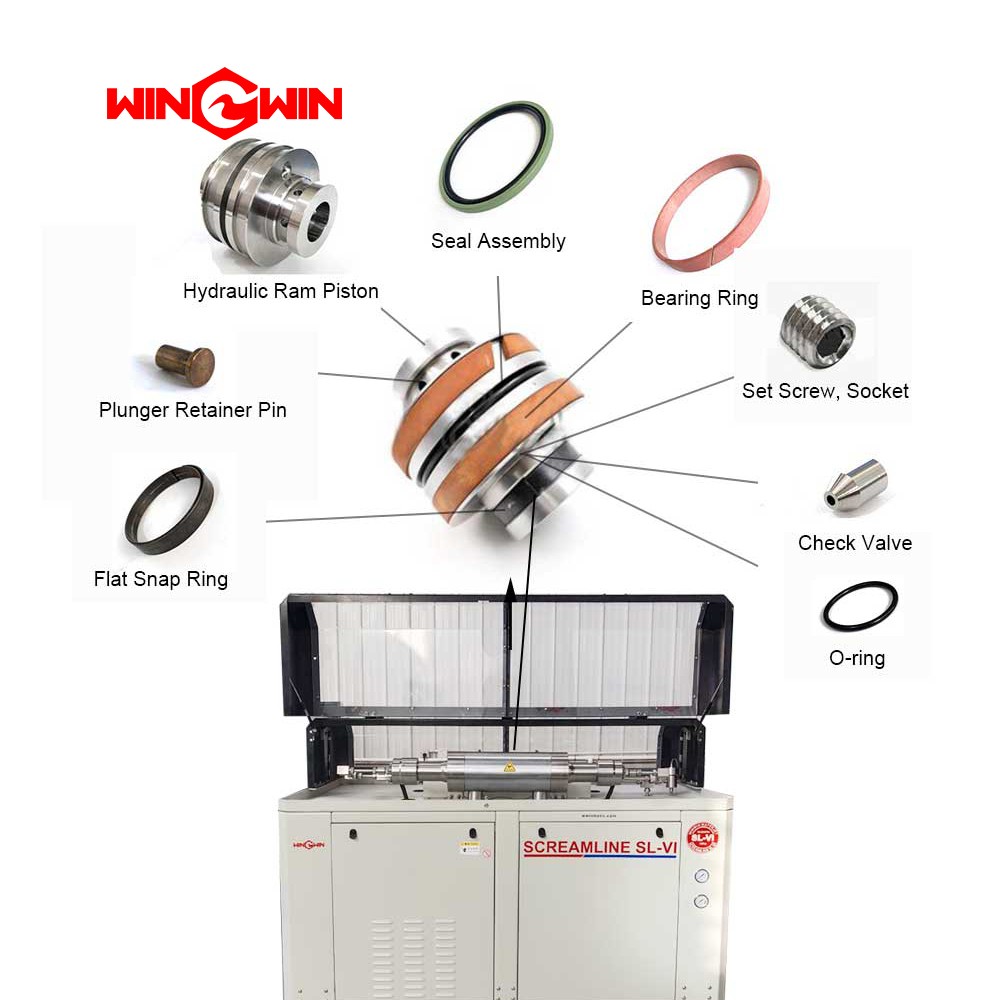

Item | Part Number | Description | Quantity |
1 | 72101205 | Ram Piston, 5.50 | 1 |
2 | 05074380 | Clevis Pin | 12 |
3 | 05049887 | Set screw | 2 |
4 | 10148757 | Check Valve Assembly | 2 |
5 | 05088364 | Retaining Ring | 2 |
6 | 05049994 | Backup Ring, 1.50 x 1.75 | 2 |
7 | 05087713 | O-Ring, 1.25 x 1.50 x .13 | 2 |
8 | 05120118 | Seal Assembly | 1 |
9 | 05120100 | Bearing | 2 |
| 72168337 | Spare Parts Kit | ||
| Includes items 4, 5, 6, 7, 8 and 9 |
