Motor/Pump Assembly 80087935 Parts For STREAMLINE SL-V E50 / SL-IV / NEOLINE WATERJET INTENSIFIER PUMP

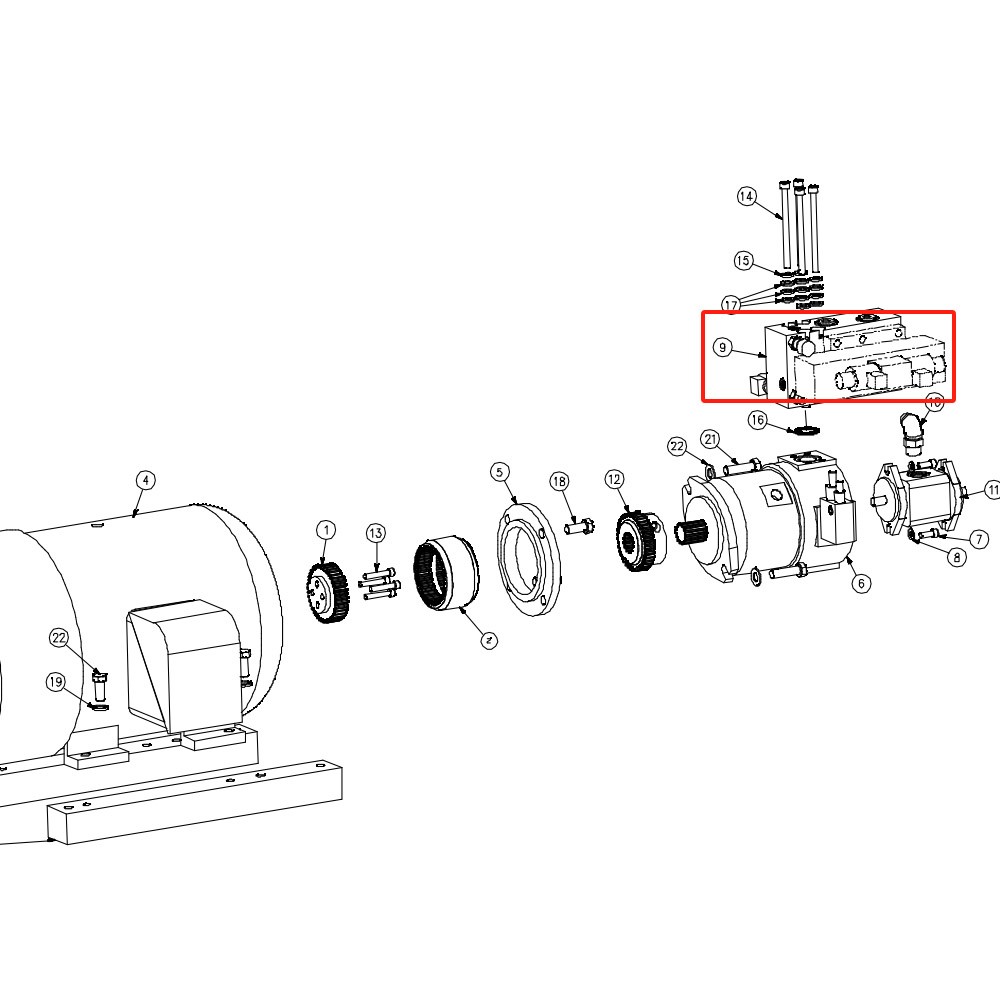

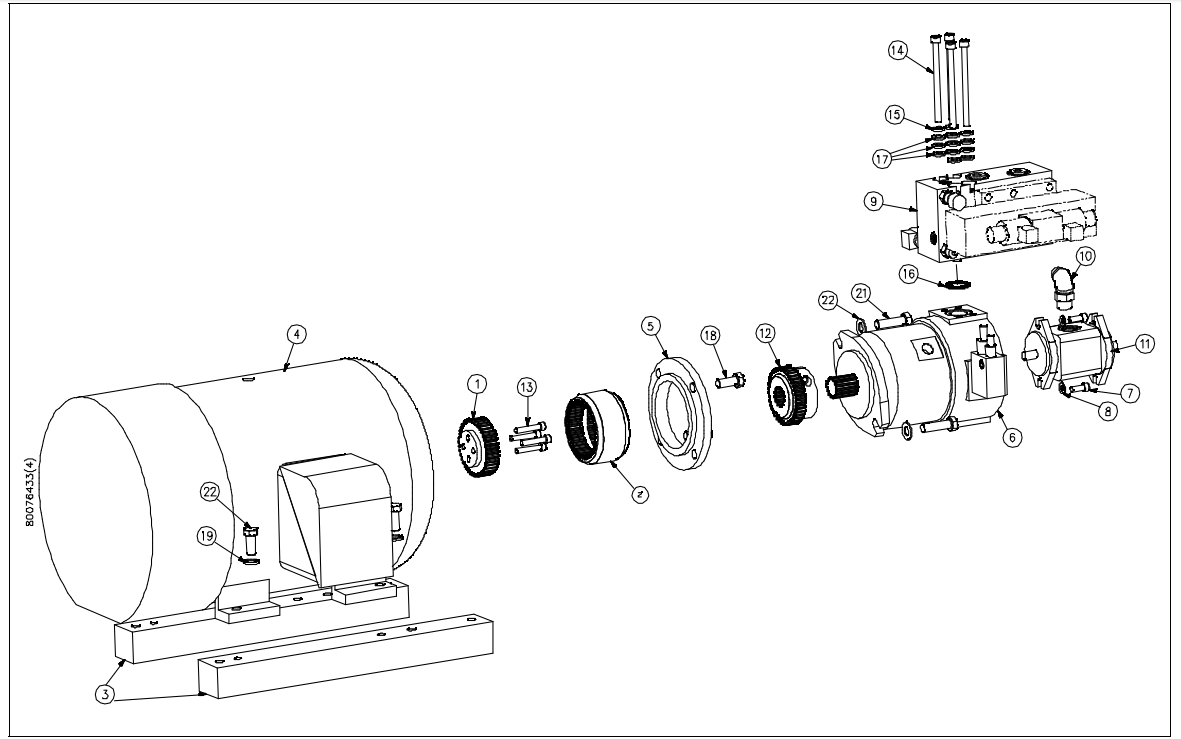

Spare Parts List of Motor/Pump Assembly 80087935
| Item | Part Number | Description |
| 1 | 80076573 | Coupling motor shaft |
| 2 | 80076557 | Flexible drive insert |
| 3 | 05101613 | Vivration Isolation mount |
| 4 | 80076490 | Electric motor 50HP |
| 5 | 80076482 | Flange motor/pump assembly |
| 6 | 05045505 | Piston pump |
| 7 | 05037593 | Socket head screw M10x1.50x25mm |
| 8 | 10069714 | Flat washer .38 |
| 9 | 05071766 | Manifold assembly |
| 10 | 05047451 | Adapter JIC/ORB .75x.75 |
| 11 | 05045364 | Gear pump |
| 12 | 80076565 | Coupling, pump shaft |
| 13 | 95055265 | Socket head screw 3/8-16x1-1/4 |
| 14 | 05091756 | Socket head screw 7/16-14x6 |
| 15 | 05050356 | Lock washer .43 |
| 16 | 10074953 | O-ring 1-1/2x1-3/4x1/8 |
| 17 | 05089792 | Flat washer .44 |
| 18 | 95897294 | Hex head screw 5/8-11x1-1/2 |
| 19 | 95688719 | Lock washer .63 |
| 20 | 49835721 | Hex head screw 5/8-11x2.25 |
| 21 | 80087513 | Flat washer .63 |
| 22 | 95897294 | Hex head screw 5/8-11x1-1/2 |
