For STREAMLINE SL-V E50 / SL-IV / NEOLINE WATERJET INTENSIFIER PUMP

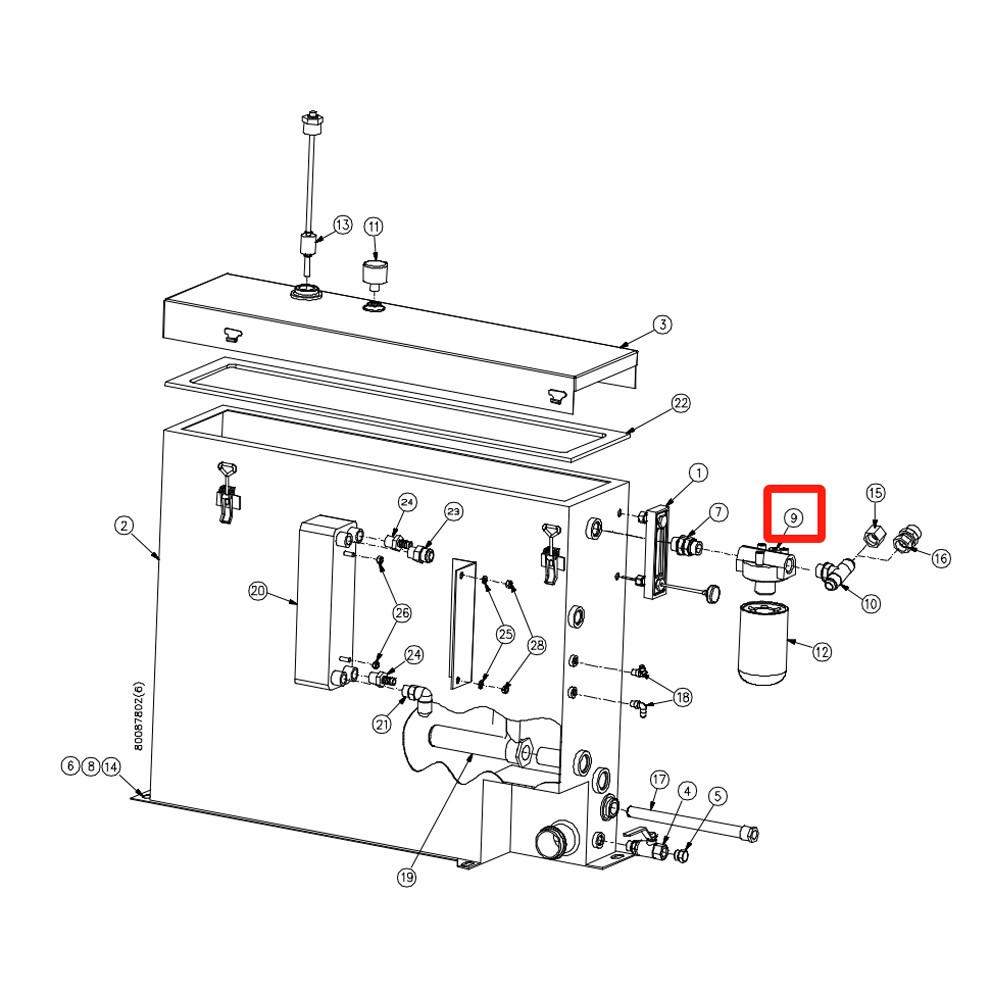

Spare Parts List of Reservoir Assembly 80087802
| Item | Part Number | Description |
| 1 | 20451474 | Level/Temperature Gauge |
| 2 | 80086358 | Reservoir Weldment |
| 3 | 80087794 | Reservoir Lid |
| 4 | 20423326 | Ball Valve, 2-Way |
| 5 | 05025176 | Plug, ORB, .50 |
| 6 | 10116713 | Hex Head Screw, 1/2-13 x 1-1/2 |
| 7 | 05057542 | Coupling, ORB, .75 x .75 |
| 8 | 10170686 | Lock Washer, .50 |
| 9 | 05049697 | Hydraulic Filter Head W/Gauge |
| 10 | 05071063 | Tee, JIC/ORB, .75 x .75 |
| 11 | 05092739 | Air Breather |
| 12 | 05049689 | Oil Filter |
| 13 | 05050026 | Temperature/Level Switch |
| 14 | 10069763 | Flat Washer, .50 |
| 15 | 05069976 | Cap, JIC, .75 |
| 16 | 05079371 | Adapter, BSPP/JIC, .75 x .75 |
| 17 | 10091858 | Bulb, Well |
| 18 | 10142644 | Adapter, JIC/ORB, .25 x .25 |
| 19 | 80087687 | Diffuser, Return Line |
| 20 | 05145958 | Heat Exchanger, Water/Oil |
| 21 | 05050331 | Adapter, JIC/ORB, .75 x .63 |
| 22 | 80087810 | Gasket, Reservoir |
| 23 | 05073150 | Adapter, JIC/ORB, .75 x .63 |
| 24 | 10079713 | Hose Barb, .50 x .50 |
| 25 | 95830766 | Lock Washer, .31 |
| 26 | 10070191 | Hex Nut, M8 x 1.25 MM |
