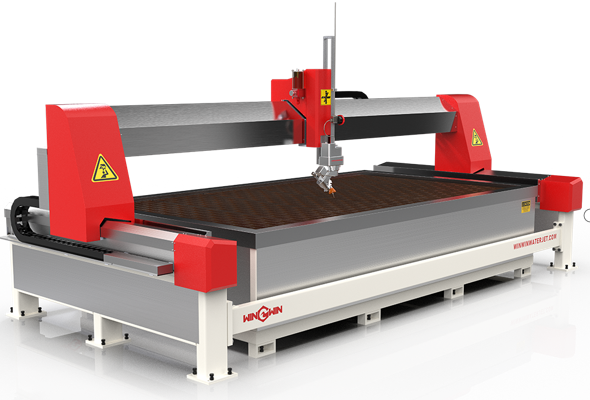

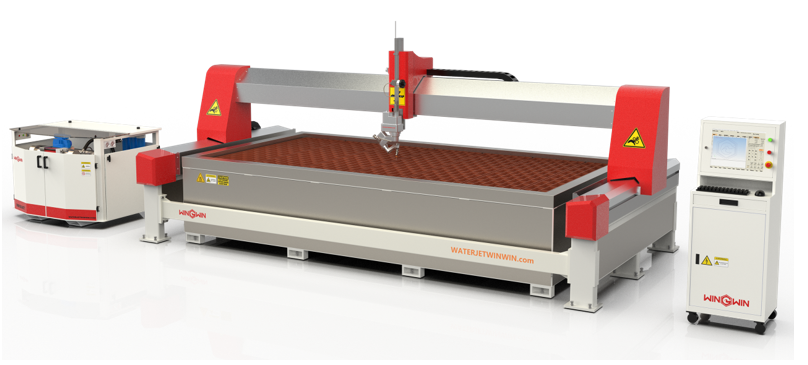

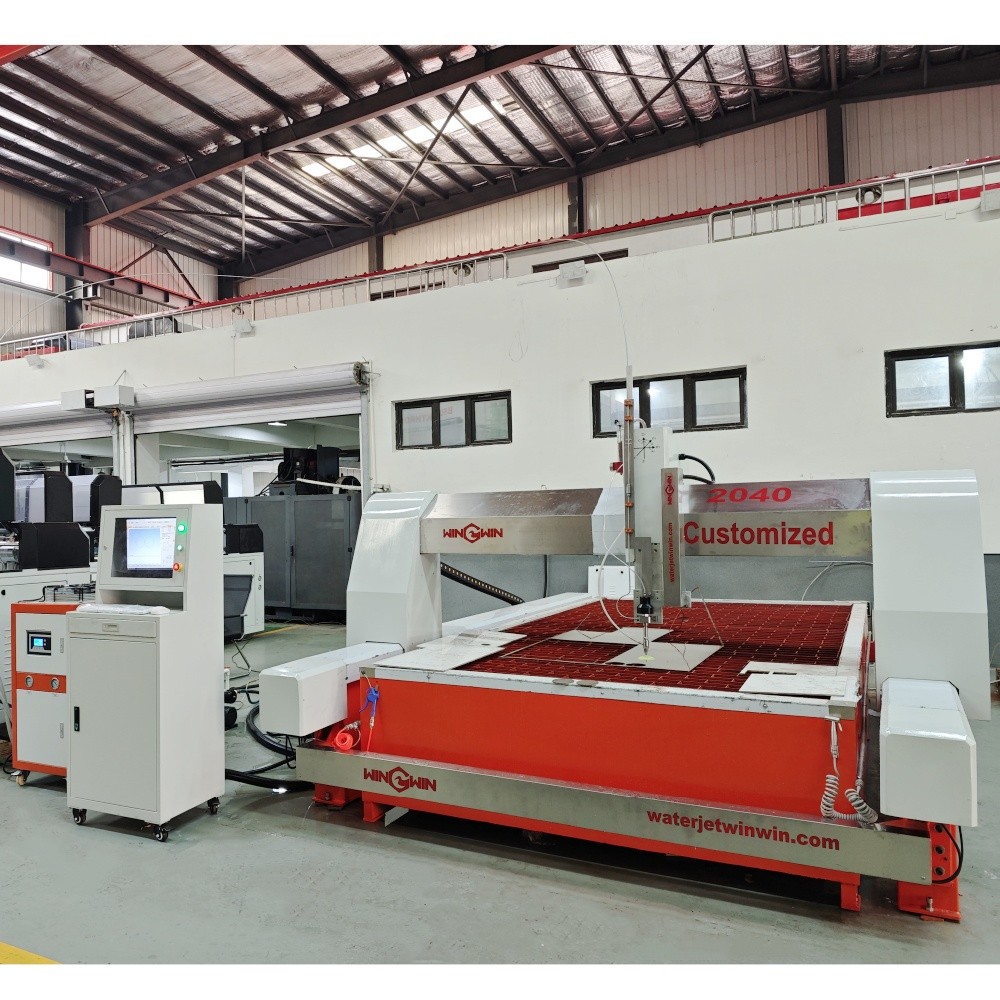

WW4020 WATERJET CUTTING MACHINE

A reasonable design is fundamental

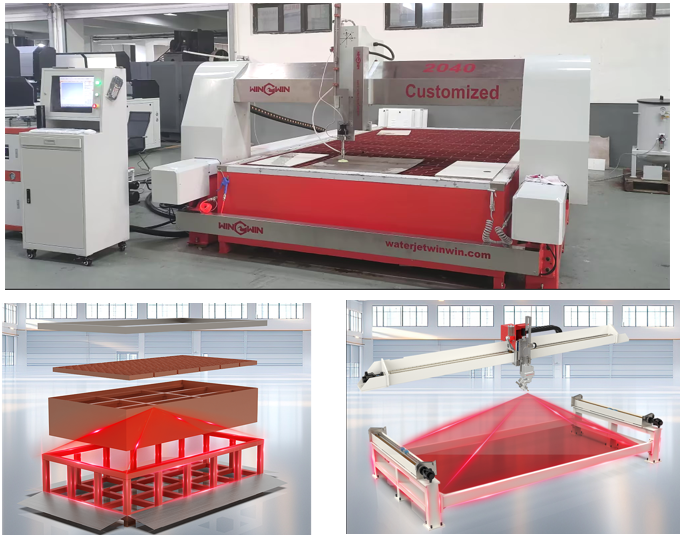

1. Integrated load-bearing water tank frame with an internal water tank, increasing weighing stability by 30%, far exceeding the stability of a single-layer sheet metal structure.

2. Stainless steel protection is used for the water tank exterior and the platform's outer edge, protecting the loading and unloading equipment from wear and tear.

3. Non-load-bearing frame with extremely high durability and stability. The double Y-beams are made of H-steel welded and annealed, while the X-axis beam is made of steel plate bent, welded, and annealed. The entire machine undergoes an aging treatment to eliminate internal stress, ensuring the machine's strength, preventing deformation, and guaranteeing permanent cutting precision.

4. All steel materials are sandblasted and then coated with two layers of anti-rust primer. Custom-painted steel plates are used, and all dust covers are made of stainless steel, keeping the equipment looking new for ten years.

5. The (block-like) support structure provides more connection points, resulting in a more stable structure and a longer service life.

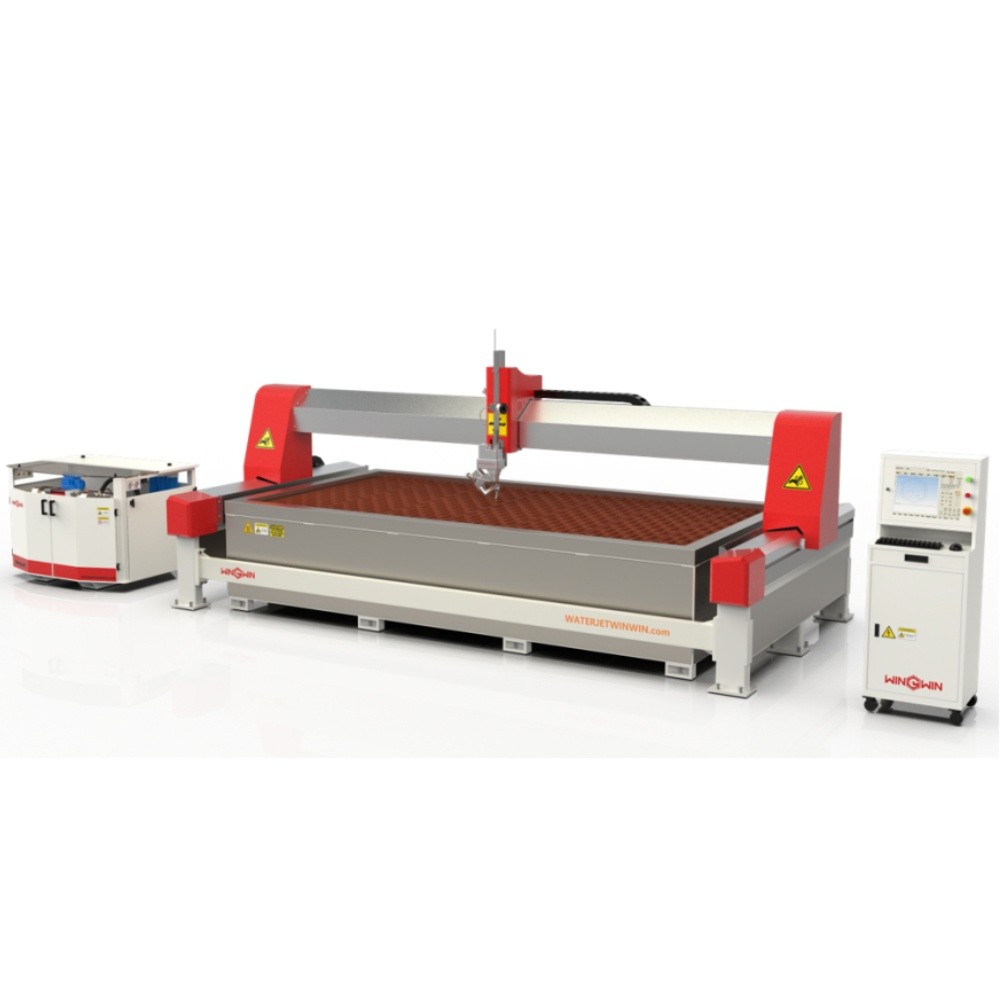

First item: Cutting platform 4020AC 5A, cutting platform parameters

A reasonable design is fundamental

1. Integrated load-bearing water tank frame with an internal water tank, increasing weighing stability by 30%, far exceeding the stability of a single-layer sheet metal structure.

2. Stainless steel protection is used for the water tank exterior and the platform's outer edge, protecting the loading and unloading equipment from wear and tear.

3. Non-load-bearing frame with extremely high durability and stability. The double Y-beams are made of H-steel welded and annealed, while the X-axis beam is made of steel plate bent, welded, and annealed. The entire machine undergoes an aging treatment to eliminate internal stress, ensuring the machine's strength, preventing deformation, and guaranteeing permanent cutting precision.

4. All steel materials are sandblasted and then coated with two layers of anti-rust primer. Custom-painted steel plates are used, and all dust covers are made of stainless steel, keeping the equipment looking new for ten years.

5. The (block-like) support structure provides more connection points, resulting in a more stable structure and a longer service life.

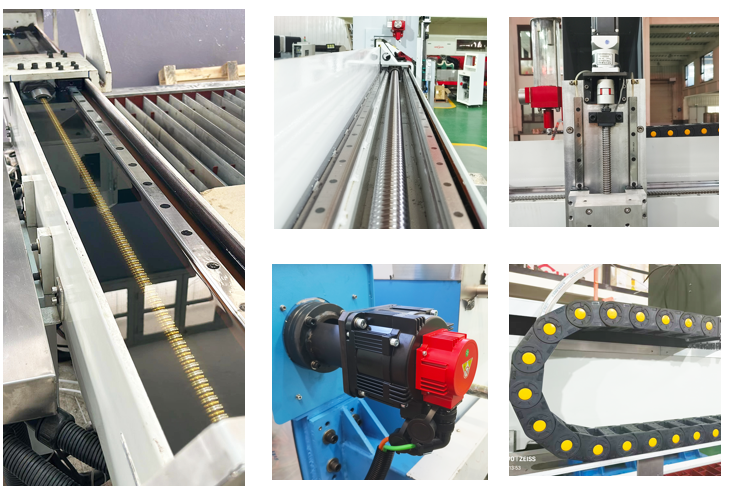

The secret to stable and long-lasting equipment

1. Utilizing an oil-immersion structure, the lead screw and slider are constantly submerged in lubricating oil, ensuring cleanliness and lubrication of the ball screw and linear guide at all times during machine operation, increasing their service life by 15 times.

2. Employing thickened ball screws and larger guide rails eliminates vibrations during operation, ensuring accuracy and transmission stability even at high speeds.

3. Using Weihong motors and Weihong waterjet cutting systems offers better compatibility, and motor parameters can be set internally within the waterjet cutting system.

4. Employing a stainless steel protective cover prevents breakage and rust, effectively protecting the lifespan of the ball screw and guide rails.

5. The Z-axis also uses a double guide rail and ball screw structure, ensuring the stability of the cutting head operation and the durability of the equipment. The Z-axis is a servo motor with automatic height adjustment.

6. Utilizing a high-quality tow chain, it possesses high temperature resistance, cold resistance, wear resistance, and fire resistance.

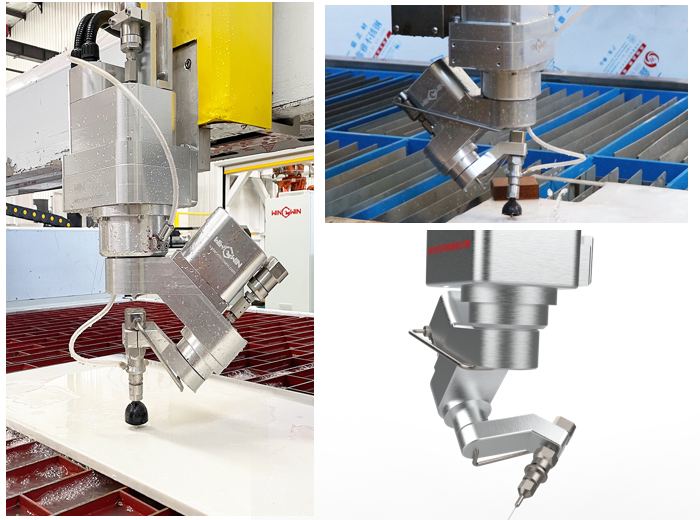

AC-5 AXIS Cutting Head

1. The ball-center zero-point structure design and intelligent five-axis software calculation of compensation data ensure that the cutting point is always at the ball's center, regardless of the cutting head's angle, resulting in extremely high cutting precision.

2. The AC five-axis head is made of carbide, which is lightweight and highly durable, reducing the head's weight and minimizing wear on the ball screw and linear guide.

3. The C-axis can rotate 360°, and the A-axis can swing ±75°. The A-axis and C-axis work in tandem, with software calculation accuracy to five decimal places, guaranteeing that the cutting point remains at the ball's center regardless of the cutting head's angle, achieving an angular accuracy of ±0.01mm.

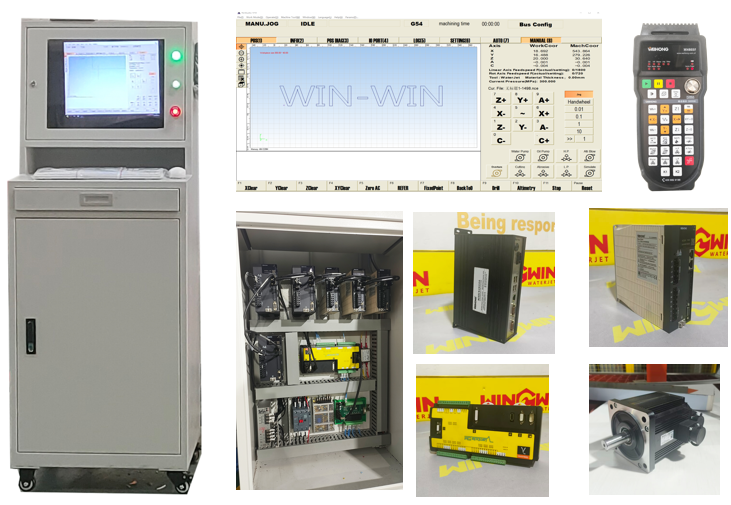

Second item: Weihong Waterjet Cutting System

1. The Weihong system can recognize the following file formats: GXF, G-code, ENG, and PLT.

2. The Weihong waterjet cutting system is highly operable and easy to operate; users can become proficient within a day.

3. It employs an absolute encoder system to ensure memory of previous data in case of operational errors or power outages. It allows for simulated operation, pausing and resuming at any time, and can resume cutting from any point based on the graphic.

4. It uses soft limit control, allowing users to set the machine tool travel range through the system, preventing collisions due to operational errors.

5. It features a dynamic graphic model and allows for real-time observation of tool movement, cutting position, and cutting changes.

6. It includes laser height measurement, AC 5-axis angle setting, and laser edge finding.

7. The designers thoughtfully included a sealed drawer for storing documents or personal belongings, protecting them in harsh environments.

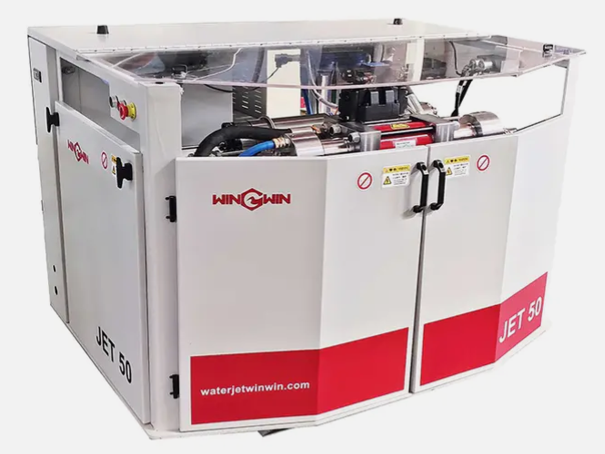

Third Item：WW50JET PUMP

Technical parameters

Seven core technologies

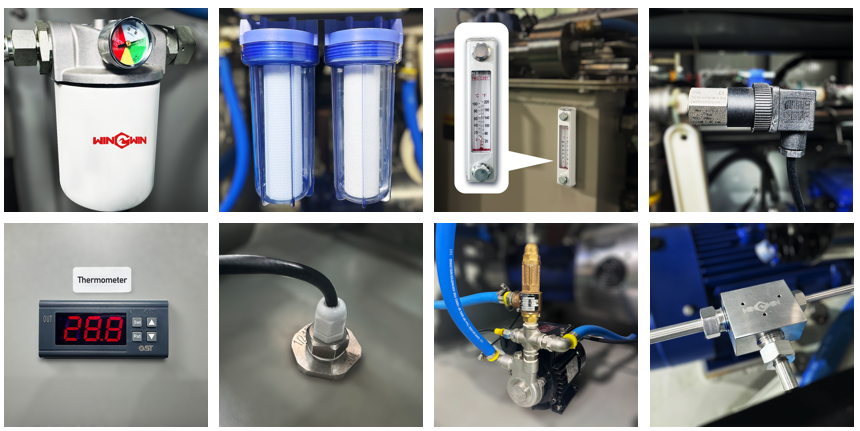

Seven major safety protection projects

1. Oil quality alarm system: When the oil quality fails to meet the standard, the oil filter will indicate blockage.

2. Oil level detection system: When the hydraulic oil level is too low, the equipment will automatically shut down and sound an alarm.

3. Oil temperature detection system: When the oil temperature rises above the set value, the equipment will automatically shut down and sound an alarm.

4. Low-pressure water detection system: When the inlet water pressure is insufficient, the equipment will automatically shut down and sound an alarm.

5. Water filtration system: Equipped with a two-stage water filtration system to ensure water quality.

6. Two-stage pressurization system: Equipped with a two-stage stainless steel intensifier pump to ensure sufficient pressure for the water entering the intensifier.

7. Monitoring system for mechanical parts: Before high-pressure parts wear out and fail, water will overflow from the detection port, facilitating observation of the parts' condition.

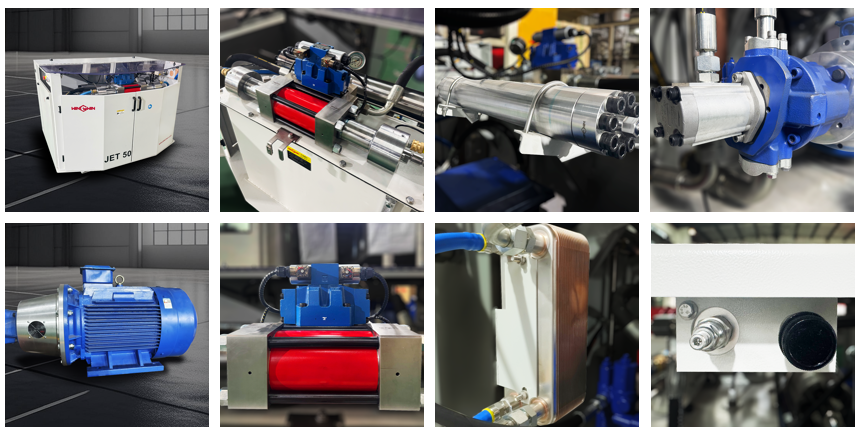

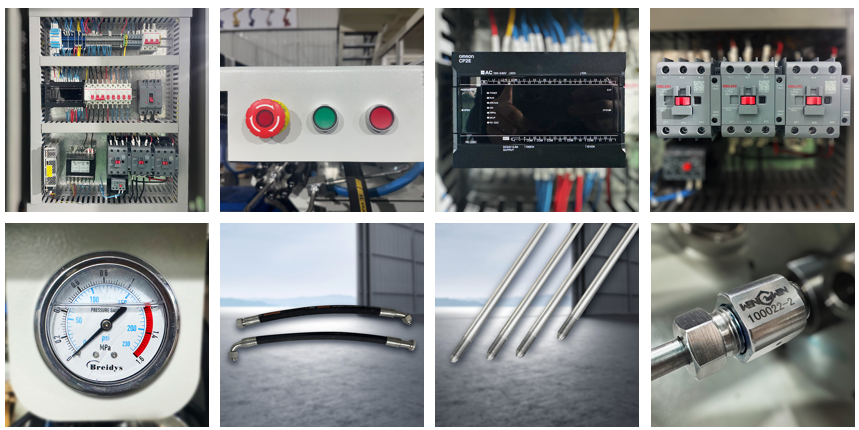

Seven core deployments

1. Star-delta start program reduces starting shock, protects the motor and circuit equipment, and saves electricity costs.

2. Omron PLC with built-in intensifier pump start program.

3. Convenient and quick push-button switches; emergency stop button is conveniently located, stable and reliable.

4. Equipped with inlet water pressure gauge and oil pressure gauge for real-time monitoring of equipment operation.

5. Uses national standard oil pipes; four-layer steel wire high-pressure oil pipes, capable of withstanding up to 38 MPa.

6. Ultra-high pressure pipelines with extremely high tensile strength and explosion-proof capability.

7. Standard high-pressure accessories; each accessory has a corresponding part number and can be replaced with internationally compatible parts.
