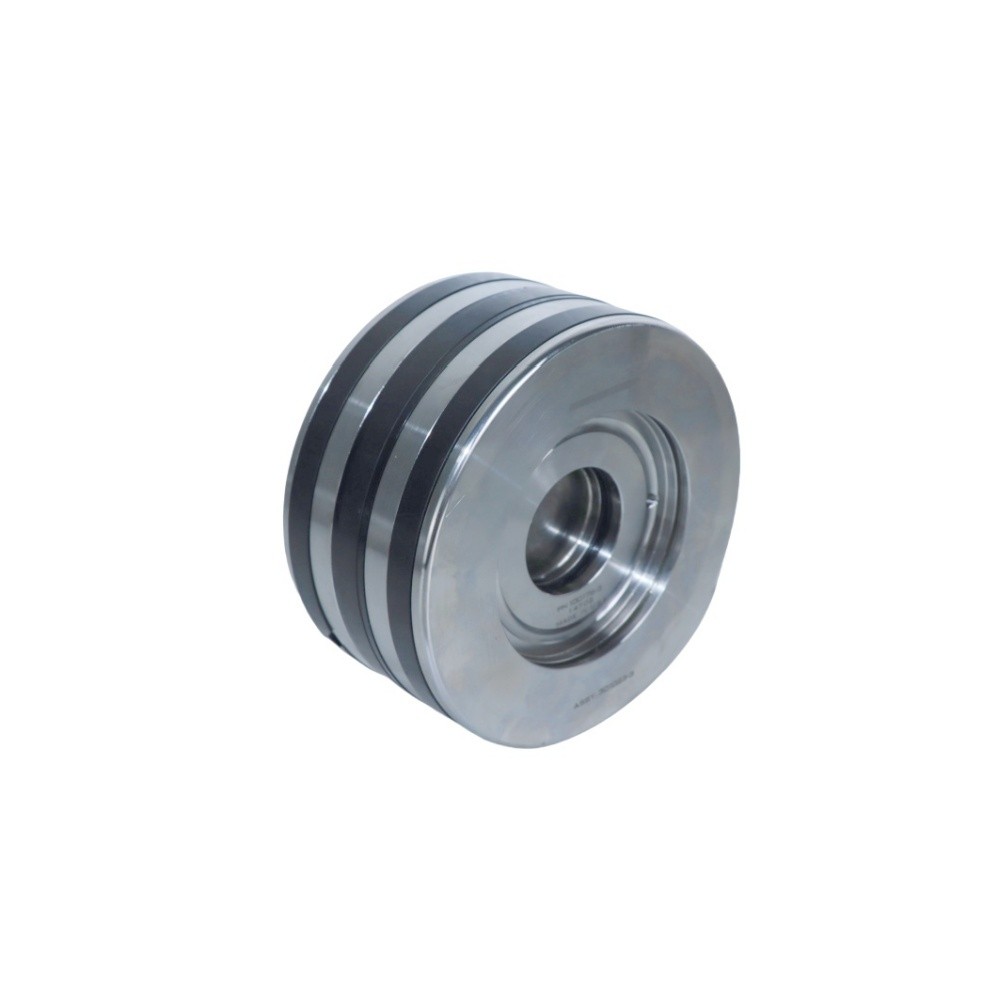

301023-3 Piston Assembly

Product number: 301023-3

Product name:  Piston Assembly

We provide all waterjet products for the robot waterjet and abrasive waterjet machine, if you need any spare parts, leave us a message and we will get back to you with the price list!

Troubleshooting Manual Startup Issues of a Waterjet Pump: A Comprehensive Guide

Waterjet pump are essential components in a variety of industrial applications, including cutting, propulsion, and cleaning processes. Their efficient operation relies on proper electrical, mechanical, and hydraulic conditions. When a waterjet pump fails to start manually—specifically when the motor shows no response or does not rotate—it can lead to significant operational delays and potential equipment damage. Understanding the common causes and troubleshooting procedures is crucial for ensuring smooth operation and minimizing downtime. In this article, we will explore detailed troubleshooting steps for waterjet pump, covering essential checks such as water pressure, oil temperature, oil levels, and motor phase conditions.

Importance of Proper Startup Procedures for a Waterjet Pump

Before diving into troubleshooting, it's important to recognize that the waterjet pump's startup procedure is designed to ensure all operational parameters are within safe and optimal ranges. This prevents damage to the pump and its components and ensures longevity and reliable performance. When issues arise—such as the motor not responding during manual startup—it often indicates underlying problems in the hydraulic or electrical systems. Addressing these issues promptly can prevent more severe malfunctions or costly repairs.

1. Verifying Water Pressure Conditions

One of the initial steps in troubleshooting a waterjet pump startup issue is to verify the water pressure in the system. Most waterjet pump require a minimum water pressure to operate correctly, ensuring adequate flow and preventing dry running conditions that can damage the pump impeller or seals.

Why Water Pressure Matters

For a waterjet pump to start reliably, the hydraulic system must deliver water at or above a specific minimum pressure—commonly around 0.4 MPa (megapascals). If the pressure is below this threshold, the pump's internal components may not be activated, or a safety mechanism might prevent startup to avoid damage.

How to Check Water Pressure

· Locate the Pressure Gauge: Most waterjet pump systems are equipped with a pressure gauge installed on the hydraulic line or system manifold.

· Monitor the Reading: Ensure the water pressure exceeds 0.4 MPa. If it does not, investigate the cause of low water pressure.

· Inspect Water Supply: Verify that the water source is operational, and the supply valves are fully open.

· Check for Blockages: Ensure there are no clogs or obstructions in the inlet filters, hoses, or pipelines that could restrict flow and pressure.

· Leak Inspection: Conduct a visual inspection for leaks downstream that could reduce pressure.

If the water pressure is below 0.4 MPa, it could prevent the waterjet pump from responding during manual startup, underscoring the importance of maintaining proper inlet pressure.

2. Monitoring Oil Temperature

Hydraulic systems in waterjet pump rely heavily on oil (hydraulic fluid) for smooth operation. Excessive oil temperature can affect the performance of the pump and its motor, sometimes leading to shutdowns or non-responsiveness.

The Impact of Oil Temperature

An oil temperature exceeding 50°C (122°F) indicates potential overheating, which could be caused by several factors:

· Excessive load or prolonged operation

· Insufficient cooling or inadequate oil circulation

· Contamination or degradation of the hydraulic oil

High oil temperatures can reduce the lubricating efficacy, increase the risk of internal component wear, and trigger protective measures that inhibit motor response.

How to Check Oil Temperature

· Identify Temperature Sensors: Most waterjet pump have temperature sensors installed in the hydraulic oil circuit.

· Readings: Use the control panel or temperature monitoring device to verify if the oil temperature exceeds 50°C.

· Cooling System Inspection: Check the cooling system, including oil coolers and fans, to ensure proper functioning.

· Oil Change: If the oil is contaminated or degraded, consider replacing or filtering it to maintain optimal temperature and viscosity.

Maintaining the hydraulic oil below the critical temperature of 50°C helps ensure the waterjet pump operates smoothly during startup and normal operation.

3. Ensuring Adequate Oil Level

Proper hydraulic oil level is vital for the waterjet pump’s reliable operation. An insufficient oil level can lead to inadequate lubrication, increased friction, and eventual failure to start.

Why Oil Level Matters

The hydraulic system depends on a specific oil quantity to generate the necessary pressure and facilitate smooth movement of internal components. If the oil level is below the recommended mark, the system may experience cavitation or air influx, disrupting the pump's operation.

How to Check Oil Level

· Locate the Sight Glass or Dipstick: Most hydraulic reservoirs are equipped with a sight glass or dipstick indicating oil level.

· Inspect and Replenish: Confirm the oil level meets the manufacturer’s recommended range. Top up with the correct type of hydraulic oil if necessary.

· Prevent Overfilling: Avoid overfilling, which can cause foaming or increased pressure.

Regularly monitoring and maintaining the proper oil level is a simple yet effective way to prevent startup issues with the waterjet pump.

4. Checking for Motor Phase Loss

Electric motor phase loss is a common cause of non-responsive operation in waterjet pumps. An electrical fault, such as a disconnected or failed phase, prevents the motor from turning, leading to a complete lack of response during manual startup.

Recognizing Phase Loss

· Symptoms: The motor remains silent during startup, with no rotation or electrical noise.

· Electrical Inspection: Use a phase sequence tester or multimeter to verify three-phase voltage supply.

· Motor Protection Devices: Many waterjet pump systems are equipped with phase failure relays. Confirm if one has been triggered or if there are alarms indicating phase loss.

Resolving Phase Loss

· Check Electrical Connections: Inspect all wiring, contactors, and circuit breakers for faults or loose connections.

· Replace Faulty Components: If a fuse or contactor is blown, replace it accordingly.

· Verify Power Supply: Ensure the electrical supply from the mains or control panel is stable and balanced.

· Consult Electrical Diagrams: Follow the wiring schematic specific to the waterjet pump model for thorough inspection.

By ensuring the motor receives a balanced three-phase supply, you significantly increase the chances of successful manual startup.

Summary and Best Practices

Troubleshooting a waterjet pump that does not respond during manual startup involves a systematic check of hydraulic and electrical parameters. The four key areas to inspect are:

· Water pressure (should be above 0.4 MPa)

· Oil temperature (should be below 50°C)

· Hydraulic oil level (must meet the specified level)

· Electrical phase integrity (no phase loss in the motor)

Addressing these aspects helps in diagnosing common issues that hinder pump startup, preventing unnecessary downtime and reducing repair costs.

Additional Tips

· Always follow the manufacturer’s instructions and safety guidelines during inspections and maintenance.

· Regularly schedule preventive checks on water pressure, oil temperature, oil levels, and electrical connections.

· Use proper tools and test equipment for accurate measurement and troubleshooting.

· If issues persist after basic checks, consider consulting a qualified technician or the pump manufacturer’s support service.

Final Thoughts

In conclusion, the proper startup and maintenance of a waterjet pump are critical for ensuring high performance and durability. Troubleshooting issues such as electrical phase loss, hydraulic pressure deficiencies, or hydraulic oil problems can often be straightforward if approached methodically. By paying close attention to water pressure, oil temperature, oil level, and electrical phase status, operators can quickly identify and resolve common startup problems, thus maintaining the efficiency of their waterjet cutting or cleaning systems. Remember, proactive maintenance and vigilant monitoring are key to avoiding unexpected downtime and prolonging the lifespan of your waterjet pump.
