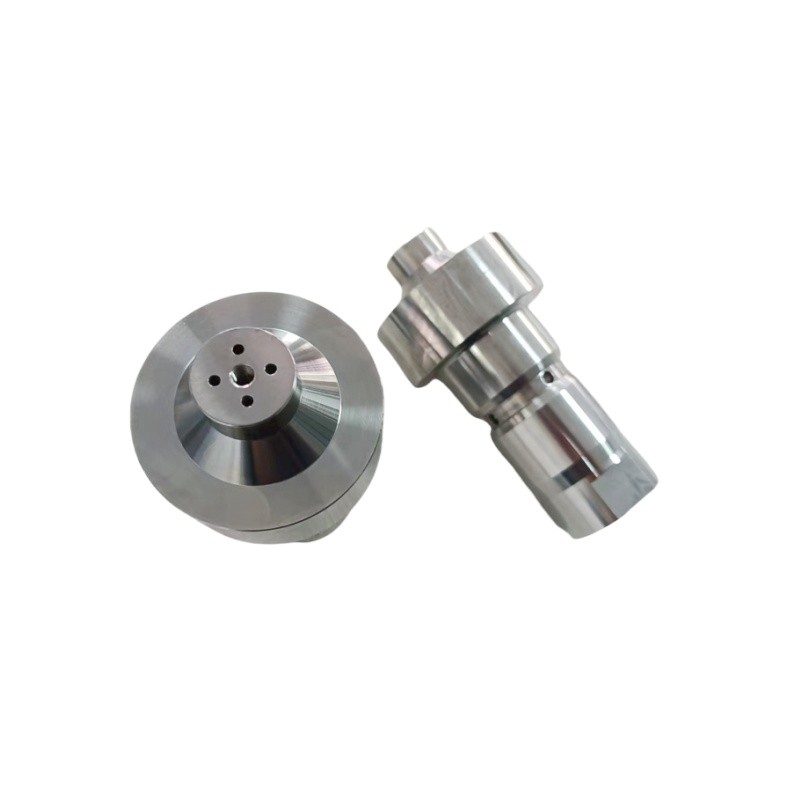

05144357 Sealing Head Body 60K

Sealing Head Body, HP, .875 Plunger, Special Flanged Style, 60K.
Used only on SL-IV Plus units noted that utilized the Flange Style end caps.

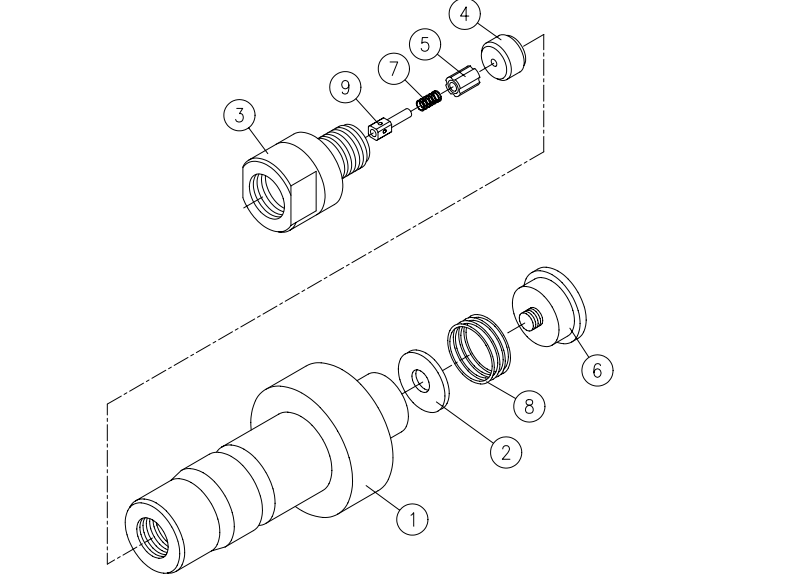

See also part no.: 20444688 Sealing Head Assembly.

Product Description:

Frequently asked questions about 05144357 Sealing Head Body 60K:

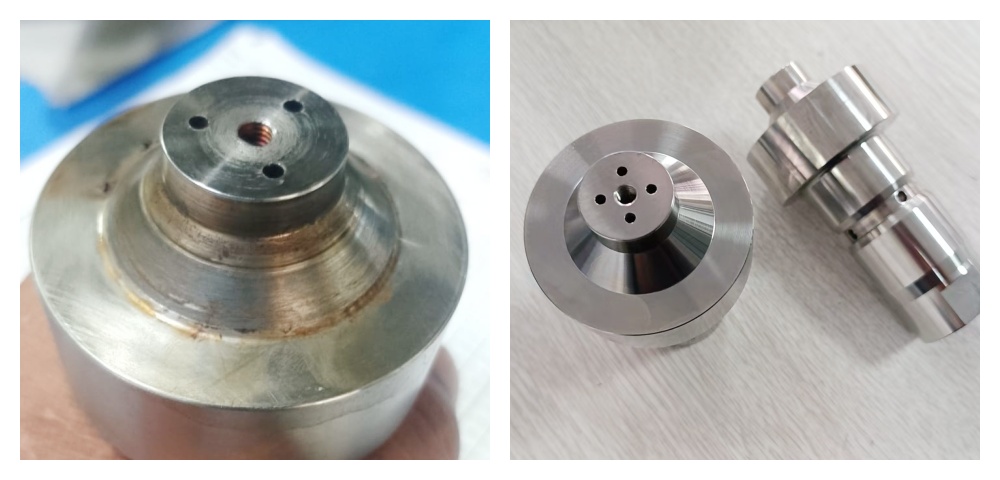

1. Regarding the 05144357 Sealing Head Body 60K, there are two types of it, one is old type (left picture), and the other is updated one (right picture).

05144357 Sealing Head Body 60K.jpg

We can see that the left model 05144357 Sealing Head Body 60K has four holes, three of which are water inlet holes. This 05144357 Sealing Head Body 60K is the old model. The right model has five holes, four of which are water inlet holes. This model is the new model and also the upgraded model. The reason why we made such an upgrade is that the more water inlet holes there are, the smoother the Intensifier will be when water is inletting, so the working efficiency will be better.

When users see that these two 05144357 Sealing Head Body 60K look different, they will worry whether they are not compatible and my equipment cannot be installed with it?

Please do not worry, except for adding an additional water inlet hole, the other dimensions, threads and specifications of 05144357 Sealing Head Body 60K have not changed. Therefore, it can be used directly.

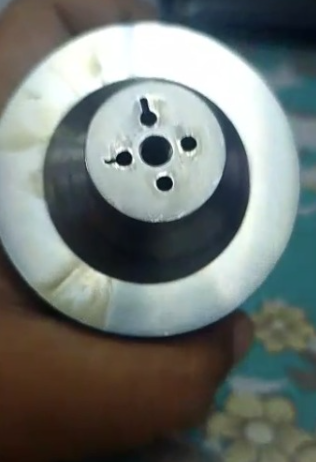

2. What is the reason for the damage of the water inlet hole on the 05144357 Sealing Head Body 60K? (refence the below picture)


Usually the service life of the  05144357 Sealing Head Body 60K is about 1 year. If the service life of 05144357 Sealing Head Body 60K is too short. You need to check the following reasons first:

A. Water quality. If the water quality is not good, it will directly affect the service life of the  05144357 Sealing Head Body 60K. Is a water purification and softening system installed? Are all water filters regularly checked and replaced?

B. It is necessary to regularly check whether the LP water inlet poppet is worn. If worn, it needs to be replaced.

The above two points will cause damage to the  05144357 Sealing Head Body 60K.





Therefore, we must pay attention to the water quality and maintenance of the equipment, regularly check the wear of the water filter and related parts, and replace them.


3. So what other parts in the water jet cutting machine will have their service life affected by water quality?

A. Waterjet orifice: Poor water quality (containing impurities or suspended matter) will increase wear and shorten the service life of the orifice.

B. Components of the high-pressure part of the waterjet intensifier: Impurities in the water may cause corrosion, wear or blockage, reducing their life.

C. Filter and pretreatment system: Lean water or impurities in the water will cause frequent filter blockage, shortening the service life of the filter element or filter.

D. HP water seals: Impurities will accelerate wear and corrosion, affecting the sealing and precision of the equipment.

E. Cooling system (such as cooling water pipeline): Poor water quality may cause scaling or corrosion, affecting the heat dissipation effect.

Therefore, ensuring that the water source is clean, fully filtered and softened is a key measure to extend the life of these key components and maintain stable operation of the equipment. Special attention should be paid to the control of suspended matter, dissolved salts, alkaline or acidic substances in the water quality.


If you encounter any problems when using water jet cutting equipment or have any questions about parts, you can consult us and we will tell you everything we know.
