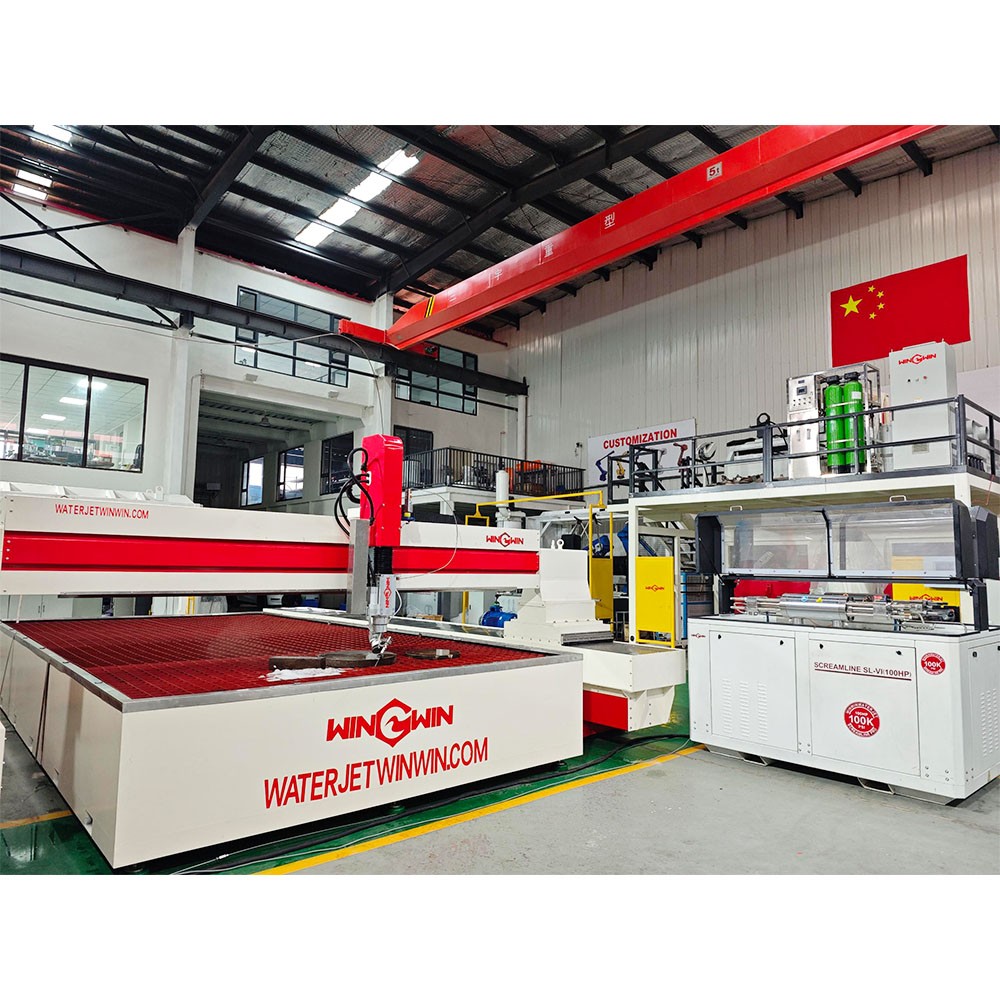

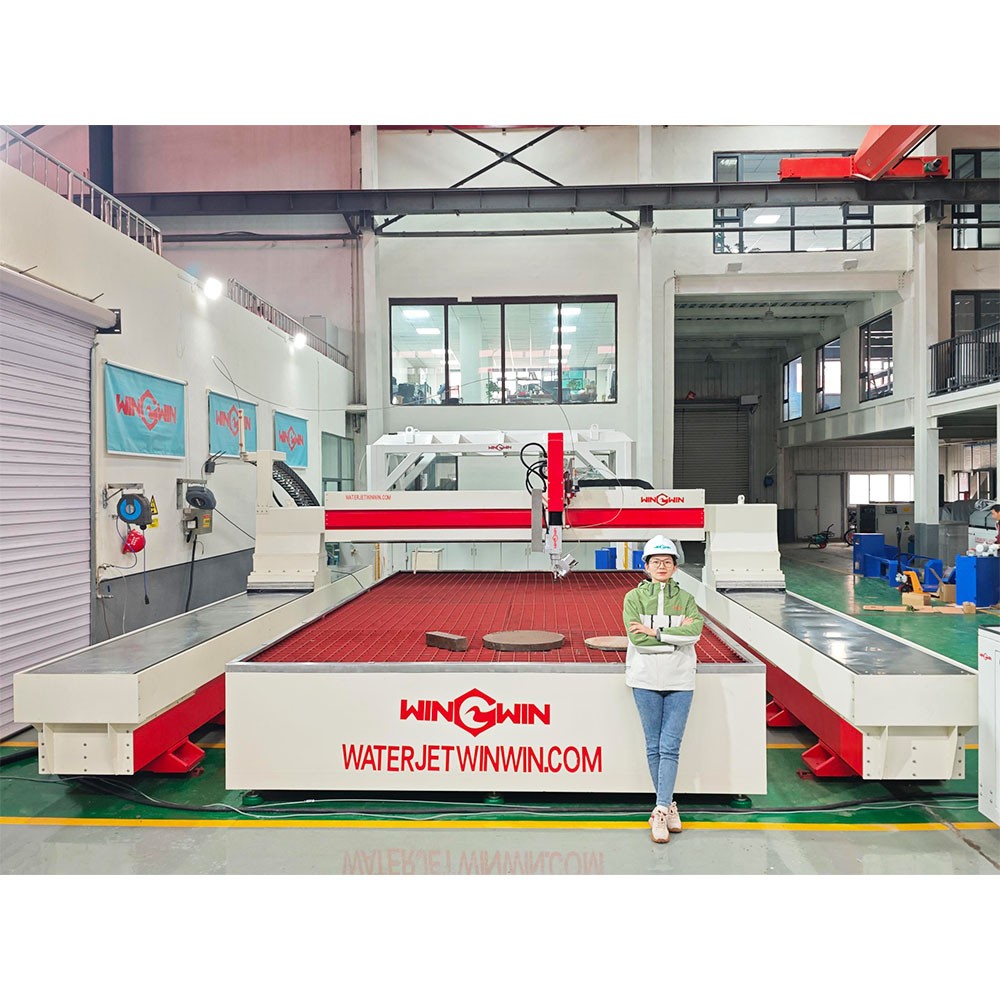

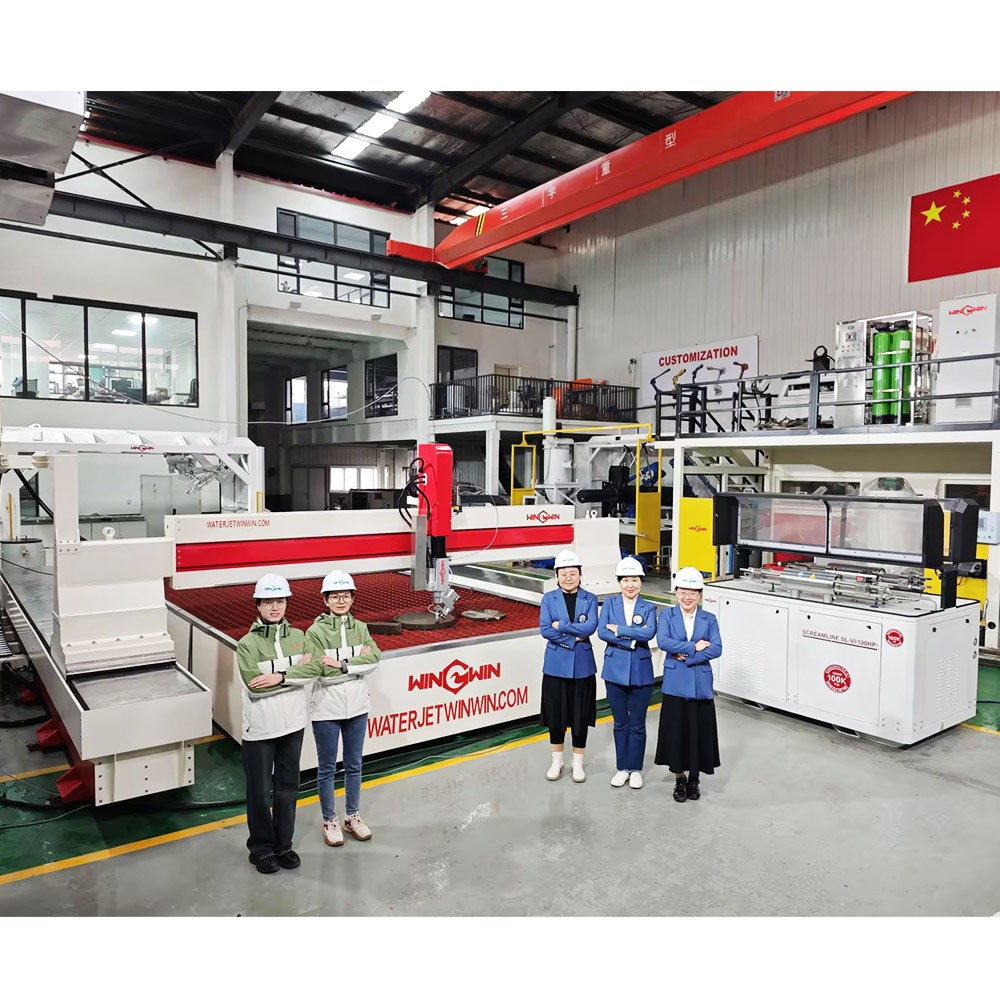

Our 6mx3m water jet cutting machine is configured as follows:

1. 6mx3m split gantry cutting platform

2. AC-5 AXIS cutting head (3 AXIS cutting head is available)

3. 100K PSI waterjet pump (Of course, other types of pumps can also be selected according to different cutting needs.)

Using high-pressure water jet technology, it can efficiently and accurately cut a variety of materials, including metal, stone, glass, ceramics, etc. This equipment is particularly suitable for large-scale industrial applications to meet the needs of fine cutting and complex modeling.

In this cutting test, we mainly demonstrated three thicknesses of iron cutting: 25mm, 50mm, 100mm.

Main features:

1. High cutting accuracy

Precision cutting: The water jet cutting machine uses high-pressure water flow to cut materials, with smooth cuts, no burrs, and a cutting error of less than 0.1mm.

2. Wide range of applicable materials

Compatible with a variety of materials: It can cut aluminum, stainless steel, carbon steel, stone, composite materials, plastics, etc. to meet different industrial needs.

3. Environmentally friendly and efficient

Dust-free and pollution-free: Since water is used as the medium, almost no exhaust gas and solid waste are generated during the cutting process, which meets environmental protection requirements.

4. Easy to operate

Intelligent control system: Equipped with a user-friendly operation interface and intelligent software, users can easily program and adjust cutting parameters to improve work efficiency.

5. Powerful drive system

Stable power: High-performance high-pressure pump is used to ensure stable water flow, high continuous operation efficiency, and reduce equipment failure rate.

6. Safety design

Multiple safety protections: The equipment has built-in multiple safety systems to ensure safety during operation and reduce the risk of use.

Technical parameters:

Cutting platform size: 6000mm x 3000mm

Maximum cutting thickness: up to 0-250mm

Water pump pressure: maximum 650mpa/100k psi

Power requirement: 380V/50Hz, three-phase electricity

Application areas:

Aerospace

Automobile manufacturing

Medical equipment

Architectural decoration

Art carving

Maintenance and service

We provide comprehensive after-sales service, including equipment commissioning, training, regular maintenance and troubleshooting, to ensure that your equipment is always in the best working condition.
