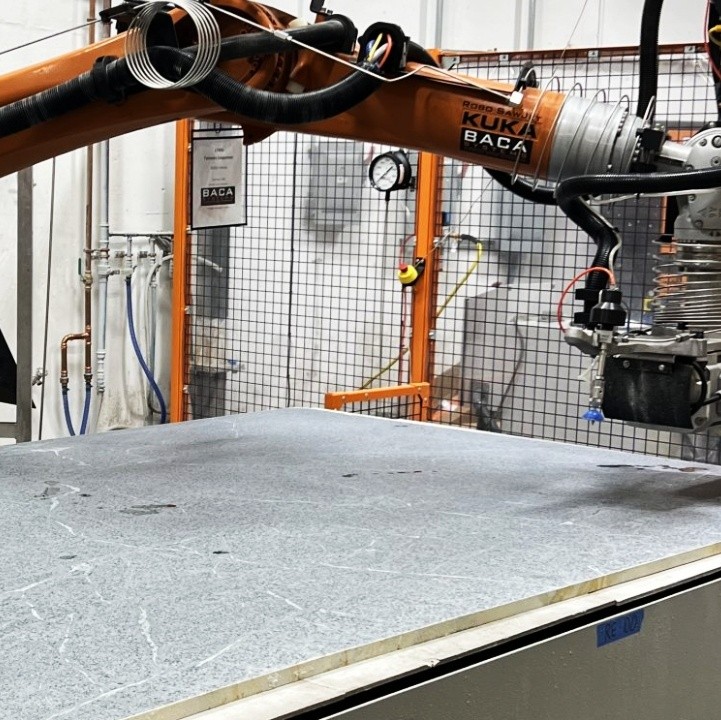

Robot waterjet cutting stone: marble, soapstone, tile, granite, ceramic, etc.
Robotic waterjet cutting of stone has several significant advantages:
High Precision and Complex Shape Cutting: Robot-controlled water jets can achieve very precise cuts, and are especially good at handling complex geometries and patterns that are difficult to achieve with traditional cutting methods.
Reduced Material Waste: Precision cutting reduces stone trimmings and breakage, thereby reducing material costs.
Versatility: Waterjets can cut all types of stone, including ceramic, stone, granite, and more without changing tools.
Automation and Efficiency: Robotic operation allows for automated production, increasing cutting efficiency and reducing labor costs.
All in all, robotic water jet cutting stone has advantages in terms of precision, efficiency, material utilization and environmental protection, and is especially suitable for stone cutting tasks that require complex design and high quality finish.
FAQ from customer of robot waterjet cutting machine for stone cutting:
| 1 | What is the robot’s productivity? How many meters can it cut within a given timeframe? | Production efficiency: Determine the cutting speed according to the tile material and thickness, calculate the cutting line length according to the graph, and calculate the production efficiency. Usually, we use our JET 50 pump to cut 6mm ordinary tiles, and the cutting speed is 1500-2000mm/min. Sure, we have other waterjet pumps for you to choose. |
| 2 | Can the robot operate using recycled water? Could you share details on the robot’s water and power consumption? | It is usually not recommended to use water after cutting. Total power consumption is about 40kw/hour. Water consumption is about 2-2.5L/min |
| 3 | What is the process for feeding data into the robot? | Use robot programming software to create programs, or directly use the robot to program and cut, which requires a basic understanding of robot operation. |
| 4 | What are the dimensions of the workbench? How many tiles of size 300×600mm can it accommodate? | Do you want a platform to hold more tiles? There are different solutions, you can use ABB IRB 2600 or ABB IRB 4600, the larger robot can match the larger platform, which one do you want? |
| 5 | Can you provide details on the clamping system used to hold the tiles? | We will use graphics to represent the tile clamping device, and customers can also determine it according to their own products. |
| 6 | What are the dimensions of the cutting station? How is the water used for cutting tiles collected? | The overall size of the equipment needs to be determined by the robot model and the overall plan before design. The water after cutting will flow out from the overflow port of the sink, always maintaining the height of the water level. |
| 7 | What is the estimated annual maintenance cost? | The annual maintenance cost and consumables cost of the entire equipment is approximately US$6,900-9,800 (five working days a week, eight working hours a day), excluding the cost of sand, water, electricity, and labor. |
