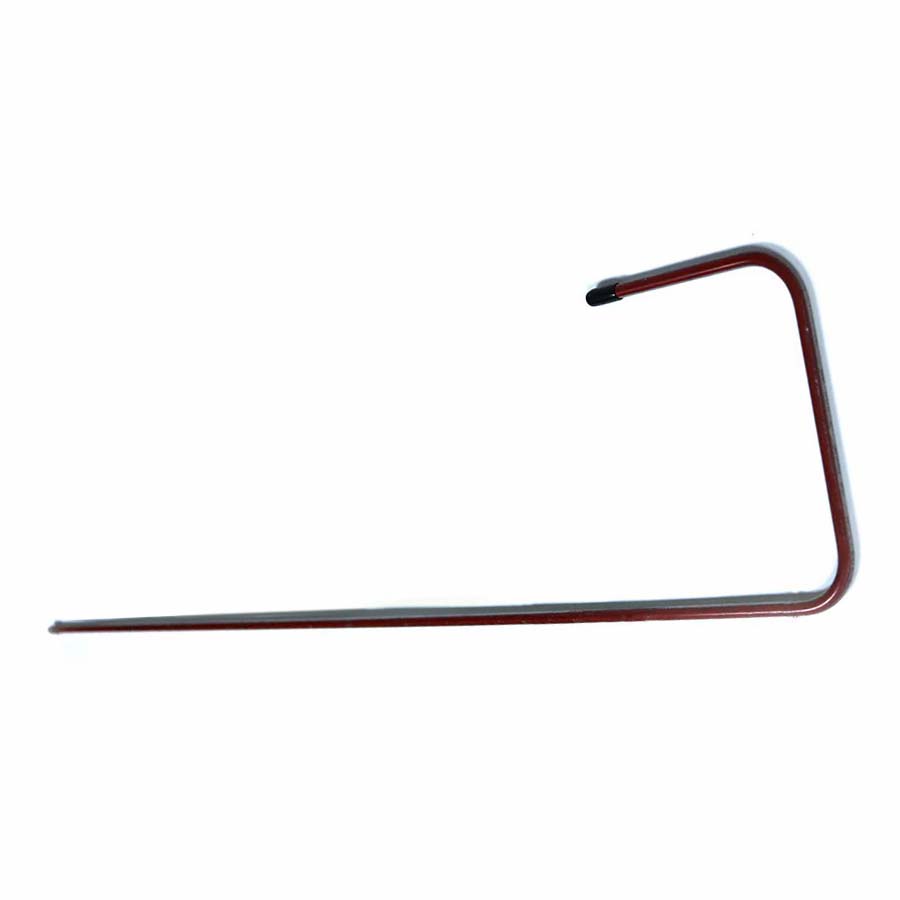

006420-1 60K 3/8 Inch High Pressure Tube For Intensifier Pump; Waterjet Tube Parts

Name: 60K 3/8" High Pressure Tube For Intensifier Pump; Waterjet Tube Parts

Part No.: 006420-1

Quantity: 1 Each

TUBE;HP;3/8 IN;60 KSI;STD;INTN

The Tips Of The High pressure tubes(Waterjet tube) for waterjet intensifier pump & water jet cutting machine

High-pressure tubes designed specifically for waterjet intensifier pumps and waterjet cutting machines need to meet stringent criteria due to the extreme pressures and operational demands they face. Here’s a detailed overview of the considerations and specifications for these applications:

Characteristics of High-Pressure Tubes

1.Material Selection:

-- Stainless Steel: Commonly used for its corrosion resistance and strength. Grades like 304 and 316 are often used due to their durability in a high-pressure, aqueous environment.

-- Alloy Steel: Higher tensile strength makes it suitable for applications requiring resistance to wear and pressure.

-- Carbon Steel: More economical but often requires coating for corrosion resistance.

2.Pressure Rating:

-- Tubes must have a pressure rating significantly higher than the pump’s maximum output, which can reach up to 90,000 psi or more, depending on the application.

-- Look for tubes that are rated according to standards such as ASTM A312 (for seamless and welded austenitic stainless steel pipes).

3.Diameter and Wall Thickness:

-- Custom dimensions are needed based on the specific design of the waterjet cutting machine and the flow requirements of the intensifier pump.

-- Wall thickness must be adequate to prevent rupture under high pressure while still being flexible enough for installation.

4.Manufacturing Method:

-- Seamless Tubing: Recommended for high-pressure applications to minimize weaknesses, as there are no welded seams that could fail under pressure.

-- Welded Tubing: If used, weld quality must meet high standards; however, typically it is less preferred for high-pressure situations.

5.Surface Finish:

-- Smooth internal surfaces promote efficient fluid flow and reduce the risk of clogs.

-- External surfaces may need treatments to prevent corrosion, especially in humid environments.

6.Standards and Certifications:

-- Compliance with industry standards and certifications is crucial. Check for certifications from bodies such as ASME (American Society of Mechanical Engineers) or similar organizations, ensuring the tubes are designed to withstand high pressures safely.

7.Connection Types:

-- Tubes typically come with various connection options (e.g., flanged, threaded, or compression fittings) suitable for high-pressure systems.

-- Ensure that the fittings are also rated for high pressure to maintain system integrity.

8.Temperature Resistance:

-- Consider the maximum and minimum operating temperatures the tubes will experience. Materials should be selected based on their ability to perform effectively across these ranges.

Applications in Waterjet Cutting

1.Waterjet Intensifier Pumps: Used to intensifier pressure in waterjet systems, high-pressure tubes transport water or other abrasive mixtures from the pump to the cutting head.

2.Waterjet Cutting Machines: High-pressure tubes deliver the high-velocity water jet that is essential for cutting through a variety of materials, including metals, plastics, glass, and stone.

Important Considerations

1.Installation and Maintenance: Regular inspection is crucial to ensure there are no leaks or weaknesses. Proper installation techniques must be employed to prevent mechanical stress at bends or joints.

2.Safety Measures: Use protective covers or shields to prevent high-pressure failure from causing injury. Employ pressure relief systems as part of safety protocols.

Note

When selecting high-pressure tubes for waterjet intensifier pumps and cutting machines, it’s essential to focus on materials, pressure ratings, manufacturing processes, and relevant standards. Proper selection and regular maintenance play critical roles in ensuring the safe and efficient operation of waterjet systems.
